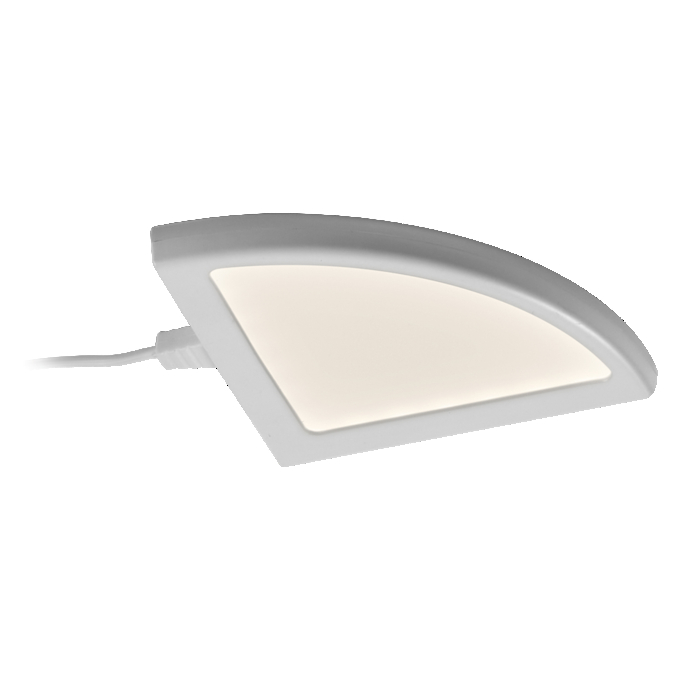

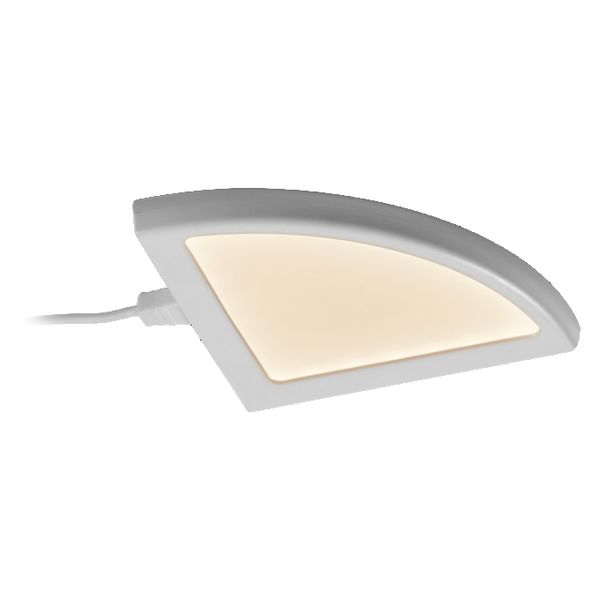

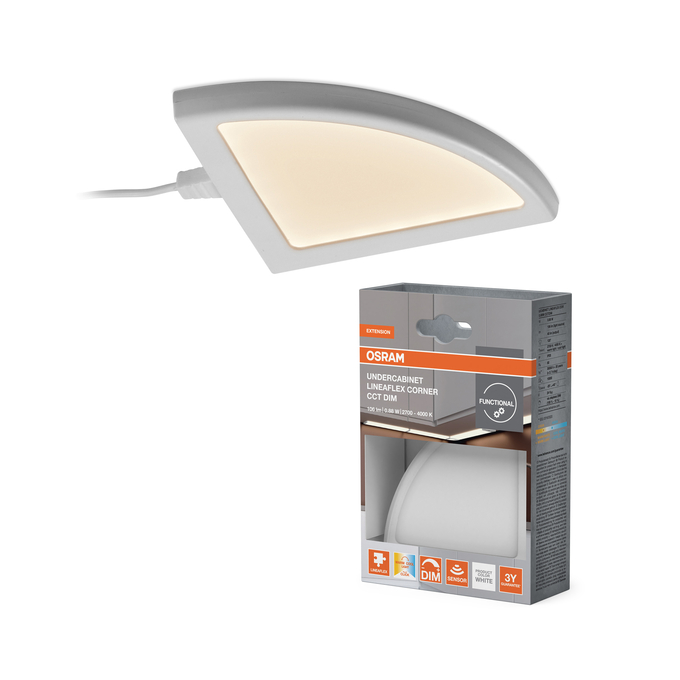

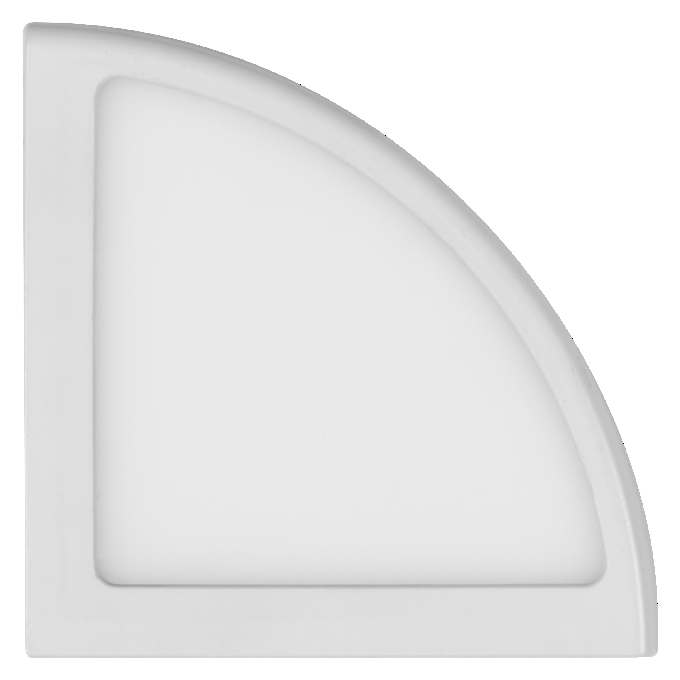

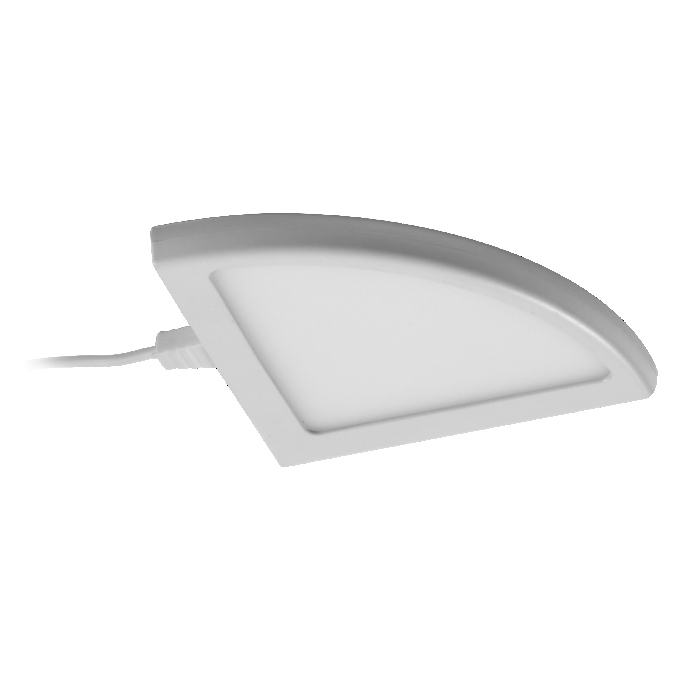

Undercabinet Lineaflex Corner 0.88W CCT DIM
4099854628245
Product benefits
- Lighting of large areas possible, even across corners
- Easy and quick series connection thanks to simple plug system
- Connection of luminaires in a row via the enclosed connector for seamless connection or via enclosed connector cable for greater distances
- Products of the LineaFlex family can be mixed according to individual needs
- Highly versatile due to selectable color
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Low voltage luminaire for DC operation with external driver
- Color temperature adjustable in two steps
- Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
- Dimming by covering the infrared motion sensor for at least one second
- Easy and fast mounting on nearly every surface (adhesive tape)
- Available length: 360 mm or 540 mm
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Body material
Aluminium|Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
2700 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854628245
Height
12.00 mm
Housing color
White
Length
90.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
45 lm/W
Luminous flux
40 lm
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
37.000 mA
Nominal voltage
24 V
Nominal wattage
0.88 W
Number of illuminants
Not relevant
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
1.00
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
55.00 g
Protection class
III
Reference control setting of contained light source (Kelvin)
2700 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Standards
CE
Total luminous flux of contained light sources
106 lm
Type of emergency operation test
None
Type of protection
IP20
Width
90.00 mm
With light source
Yes
