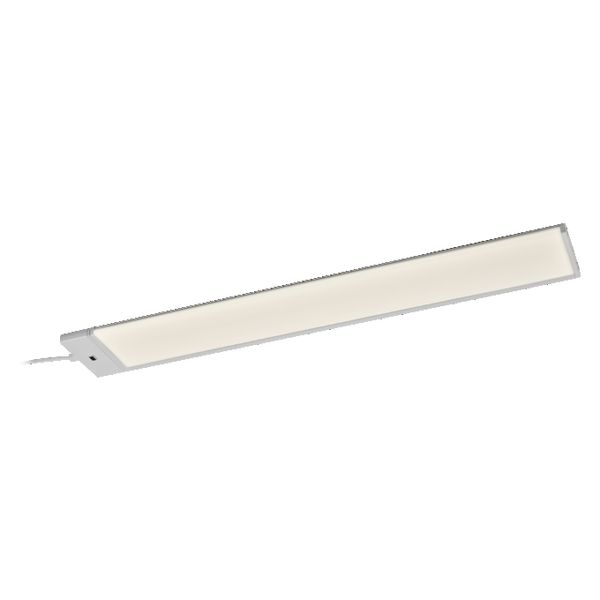

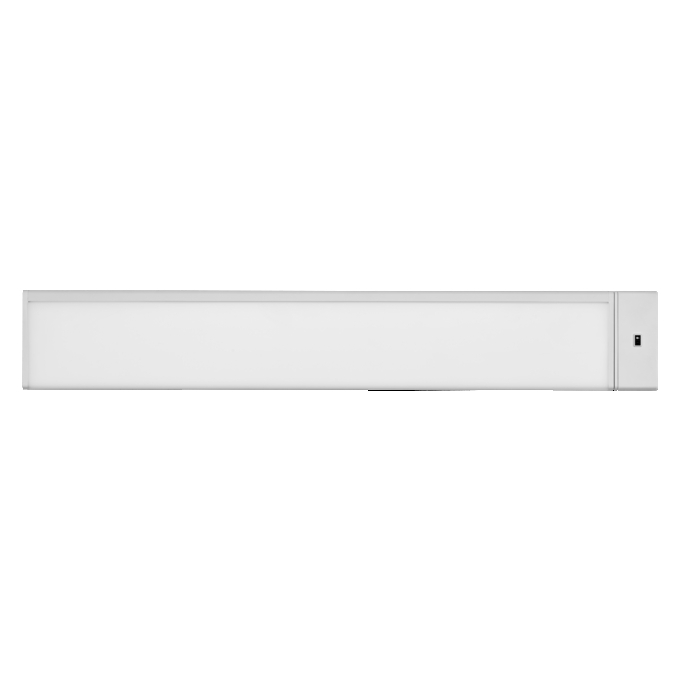

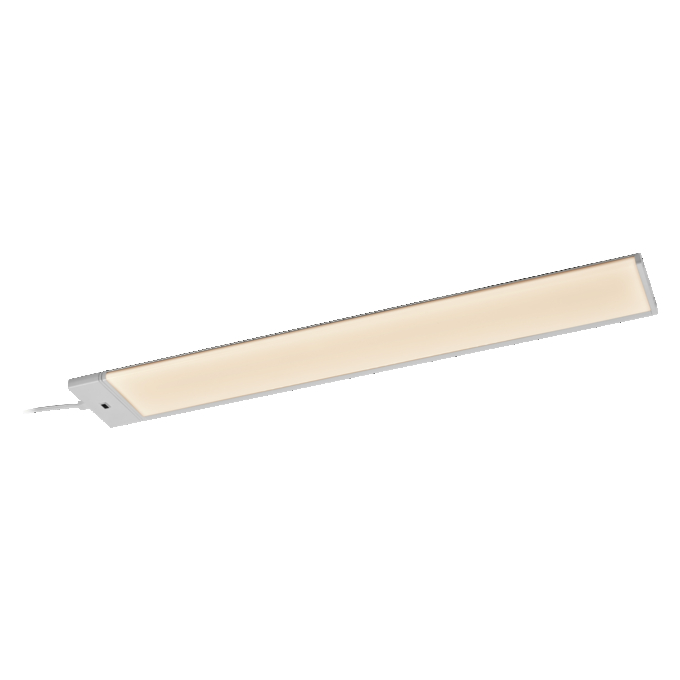

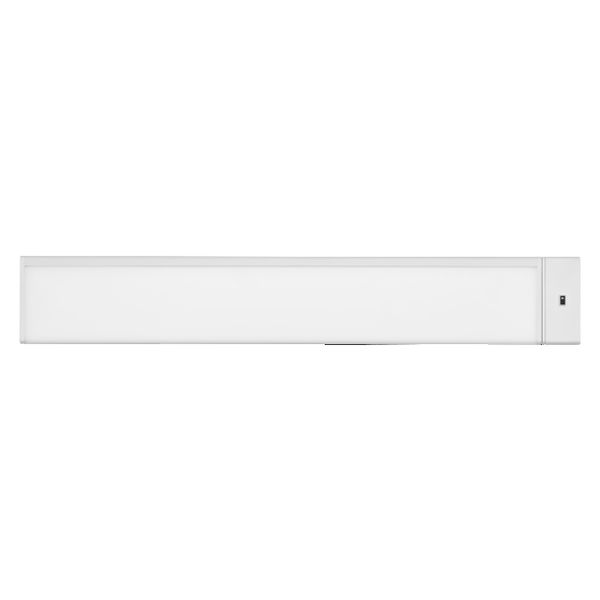

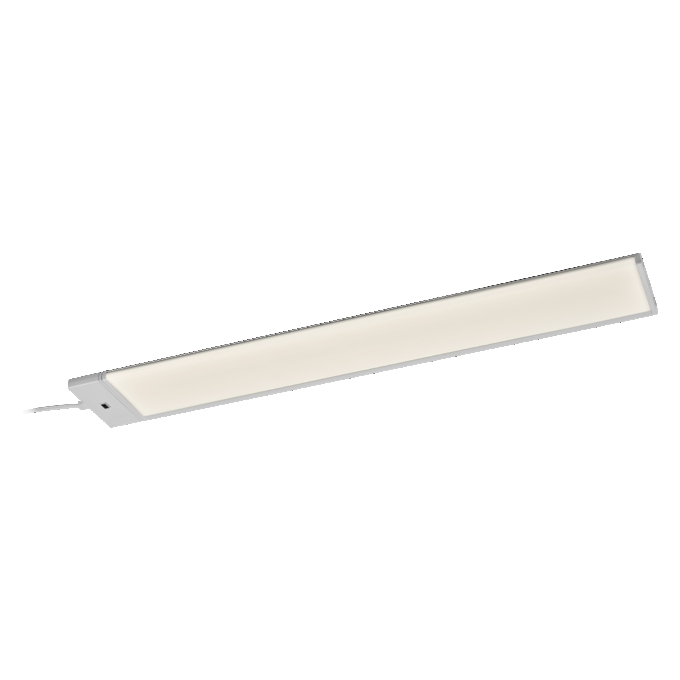

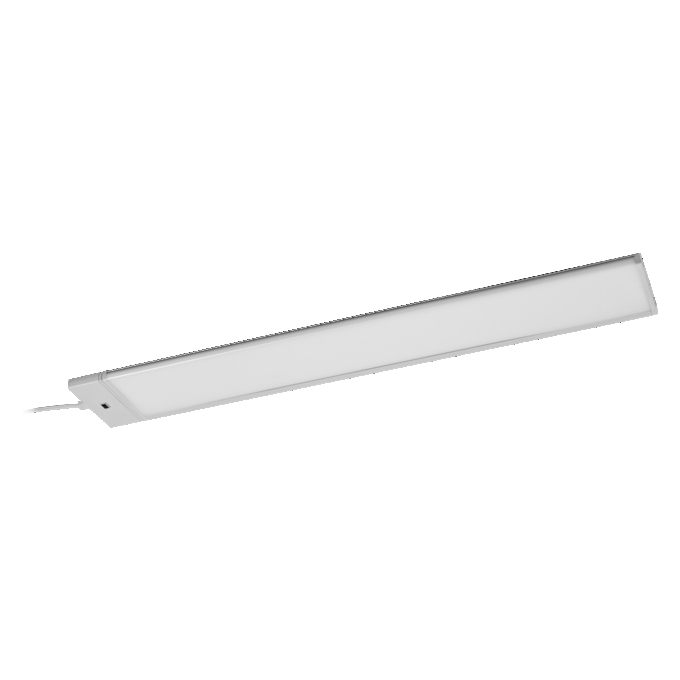

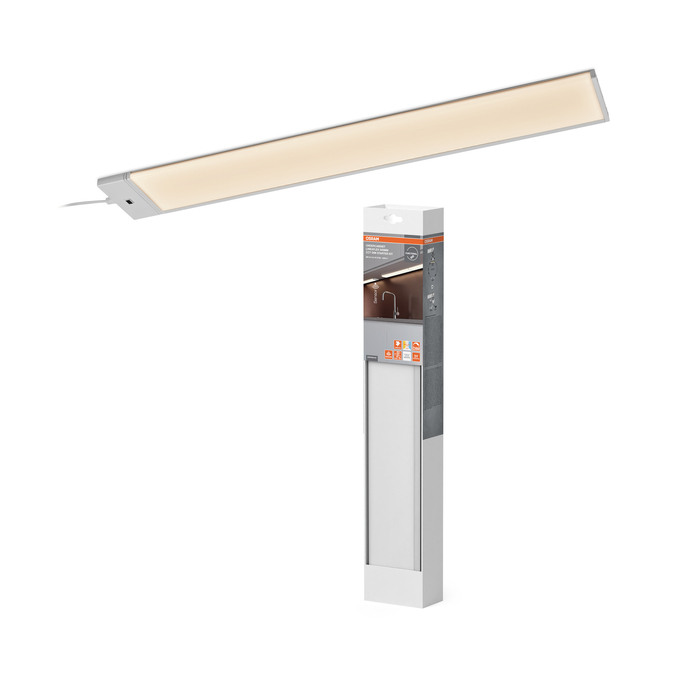

Undercabinet Lineaflex 540 mm 8.5W CCT DIM Starter kit
4099854628207
Product benefits
- Lighting of large areas possible, even across corners
- Easy and quick series connection thanks to simple plug system
- Connection of luminaires in a row via the enclosed connector for seamless connection or via enclosed connector cable for greater distances
- Products of the LineaFlex family can be mixed according to individual needs
- Highly versatile due to selectable color
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Low voltage luminaire for DC operation with external driver
- Color temperature adjustable in two steps
- Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
- Dimming by covering the infrared motion sensor for at least one second
- Easy and fast mounting on nearly every surface (adhesive tape)
- Available length: 360 mm or 540 mm
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Body material
Aluminium|Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
2700 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854628207
Height
12.00 mm
Housing color
White
Inrush current
9 A
Inrush current time Th50
304 µs
Length
540.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
72 lm/W
Luminous flux
620 lm
Max. number of luminaires per miniature circuit breaker B16
25
Max. number of luminaires per miniature circuit breaker C16
40
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
68.000 mA
Nominal voltage
220…240 V
Nominal wattage
8.50 W
Number of illuminants
Not relevant
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
550.00 g
Protection class
II
Reference control setting of contained light source (Kelvin)
2700 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor technology
Infrared/Photocell
Standard deviation of color matching
6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Total harmonic distortion
< 170 %
Total luminous flux of contained light sources
850 lm
Type of connection
Plug type C (EU)
Type of emergency operation test
None
Type of protection
IP20
Type of sensor
Motion
Width
90.00 mm
With light source
Yes
