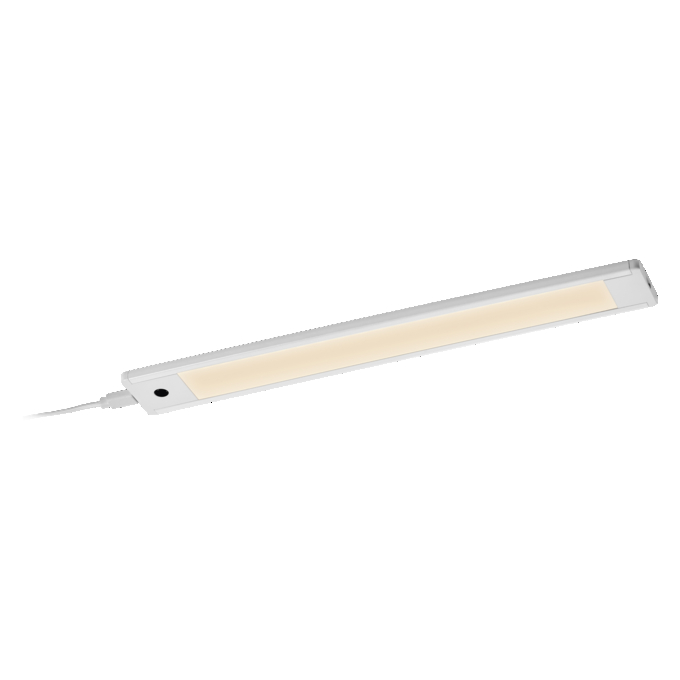

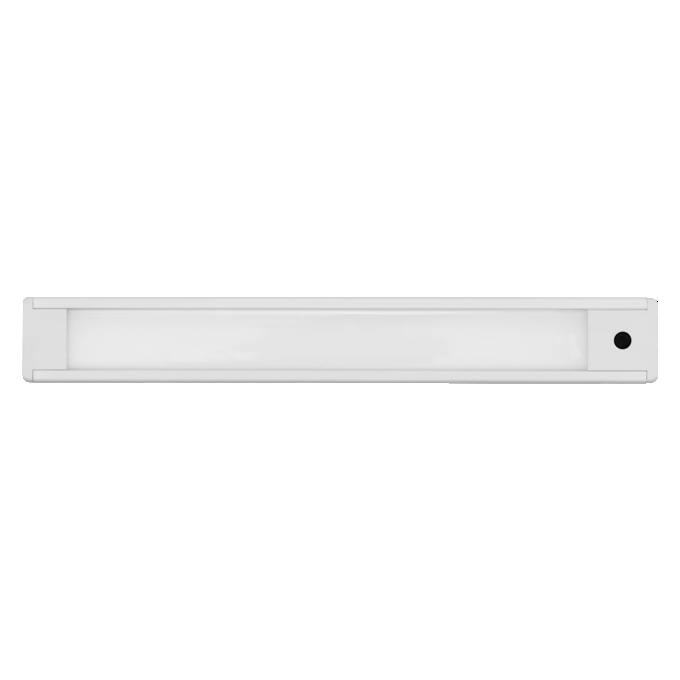

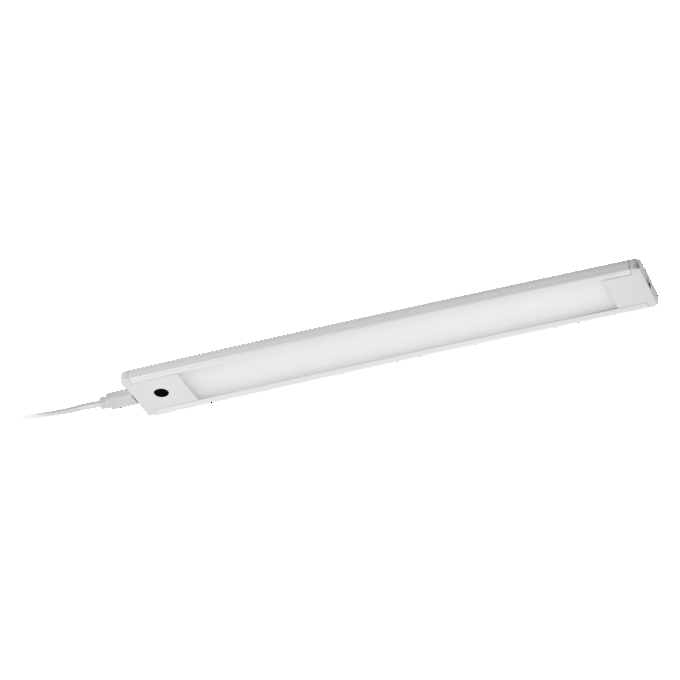

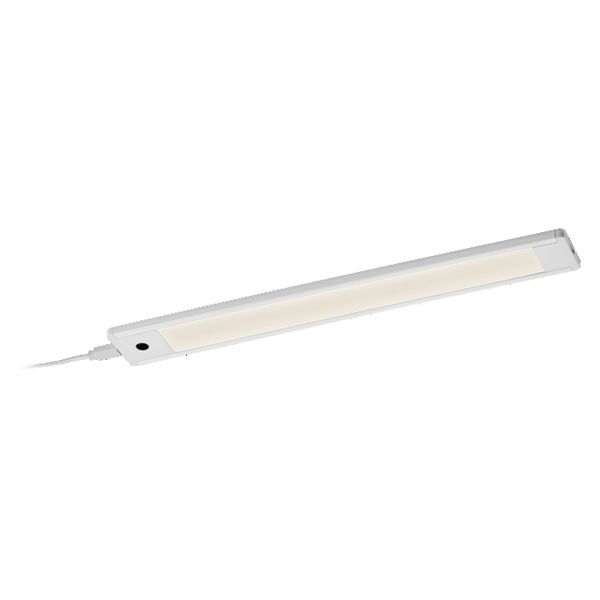

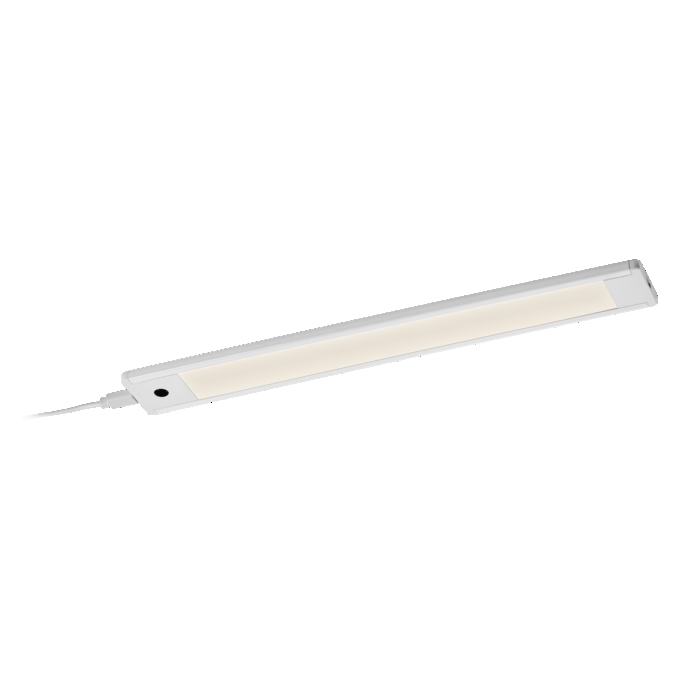

Undercabinet Flexus Linear 4.2W CCT DIM White
4099854628146
Product benefits
- Connection of up to 4 luminaires in a row via enclosed connector cable, also in combination with Flexus Spot
- Highly versatile due to selectable color
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Low voltage luminaire for DC operation with external driver
- Color temperature adjustable in three steps
- Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
- Stepless dimming by covering the infrared motion sensor for at least one second
- Easy and fast mounting on nearly every surface (adhesive tape)
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Body material
Aluminium|Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
2700 K / 4000 K / 5000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854628146
Height
6.00 mm
Housing color
White
Inrush current
0.0357 A
Inrush current time Th50
112 µs
Length
300 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
36 lm/W
Luminous flux
150 lm
Max. number of luminaires per miniature circuit breaker B16
27
Max. number of luminaires per miniature circuit breaker C16
33
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
36 mA
Nominal voltage
220…240 V
Nominal wattage
4.20 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
176.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor technology
Infrared/Photocell
Standard deviation of color matching
6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Total harmonic distortion
≤ 170 %
Total luminous flux of contained light sources
300 lm
Type of connection
Plug type C (EU)
Type of emergency operation test
None
Type of protection
IP20
Type of sensor
Infrared sensor
Width
40.00 mm
With light source
Yes
