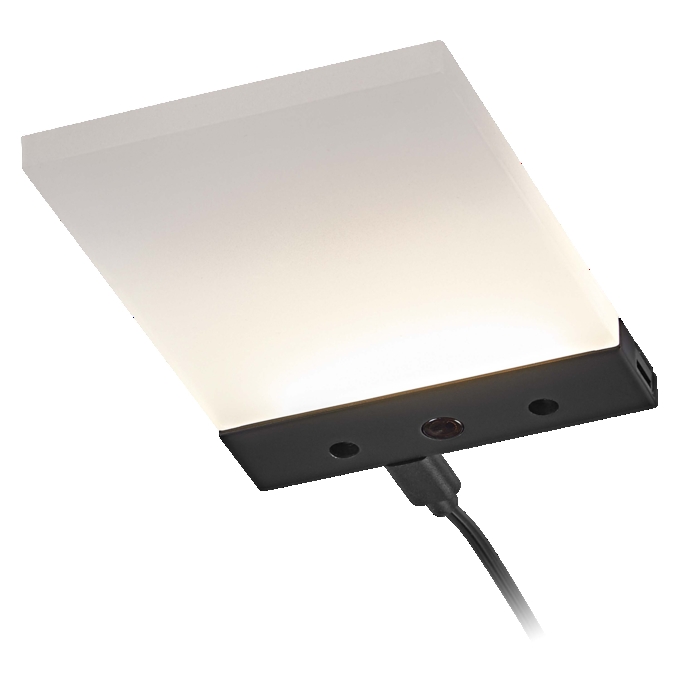

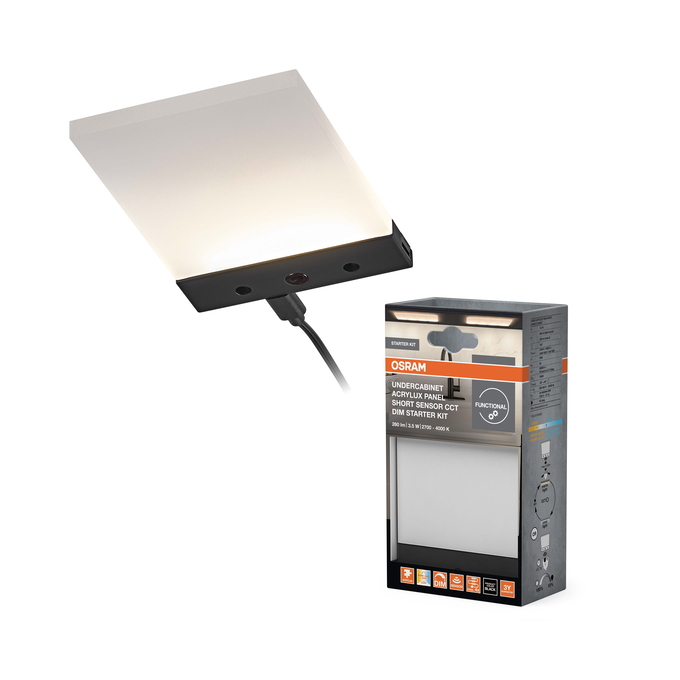

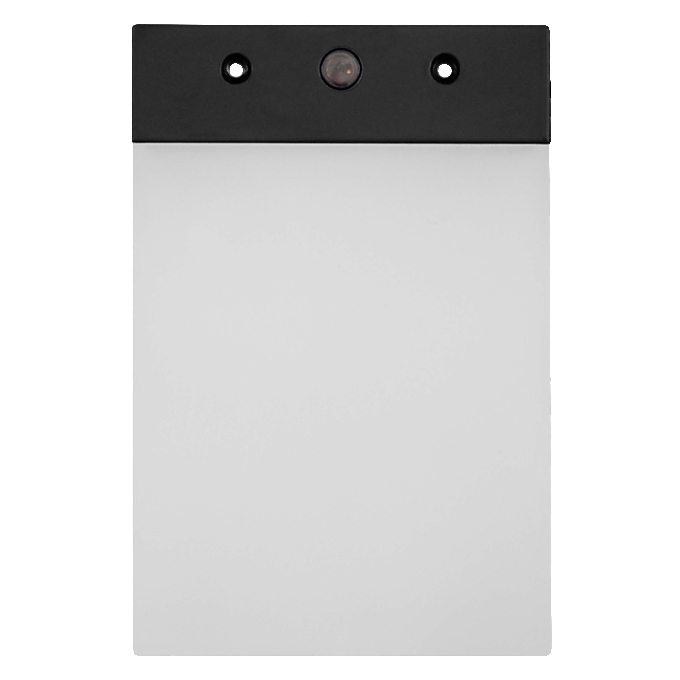

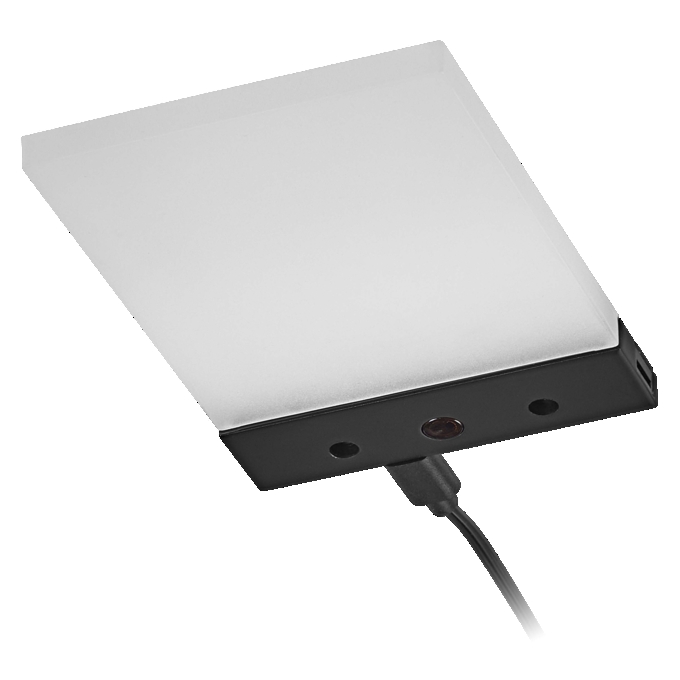

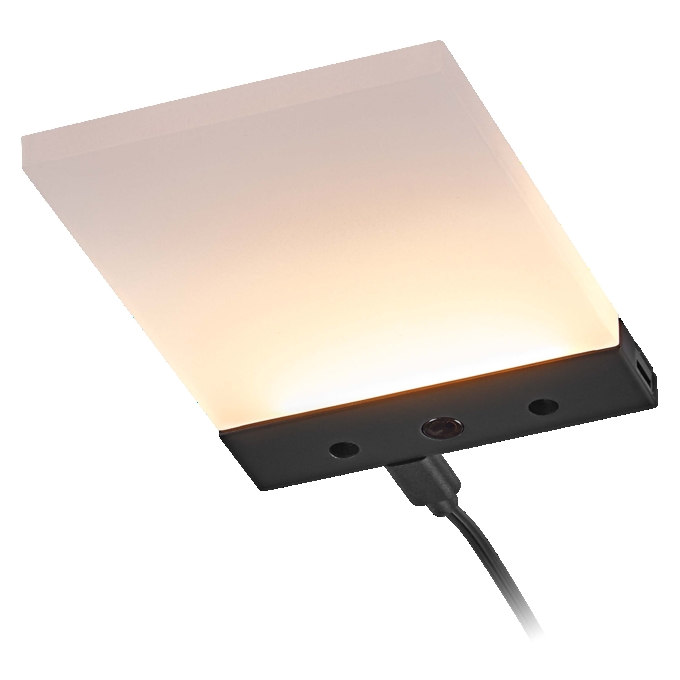

Undercabinet Acrylux Panel Short 3.5W CCT DIM Starter Kit
4099854628269
Product benefits
- Particularly pleasant lighting atmosphere due to illumination of the acrylic glass
- Order adjustable to individual needs
- Easy and quick series connection thanks to simple plug system
- Connection of up to 3 luminaires in a row via the enclosed connector for seamless connection or via enclosed connector cable for greater distances
- Highly versatile due to selectable color
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Design orientated undercabinet illumination
- Color temperature adjustable in two steps
- Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
- Dimming by covering the infrared motion sensor for at least one second
- Easy and fast mounting on nearly every surface via adhesive tape or alternative via enclosed screws in case a stronger mounting is needed
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Body material
Aluminum|polymethylmethacrylate (PMMA)
Color rendering index Ra
> 80
Color temperature
2700 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854628269
Height
7.00 mm
Housing color
Black
Inrush current
6.9 A
Inrush current time Th50
192 µs
Length
80.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
47 lm/W
Luminous flux
165 lm
Max. number of luminaires per miniature circuit breaker B16
55
Max. number of luminaires per miniature circuit breaker C16
74
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
30.000 mA
Nominal voltage
220…240 V
Nominal wattage
3.50 W
Number of illuminants
Not relevant
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
145.00 g
Protection class
II
Reference control setting of contained light source (Kelvin)
2700 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor technology
Infrared/Photocell
Standard deviation of color matching
6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Total harmonic distortion
< 70 %
Total luminous flux of contained light sources
260 lm
Type of connection
Plug type C (EU)
Type of emergency operation test
None
Type of protection
IP20
Type of sensor
Motion
Width
80.00 mm
With light source
Yes
