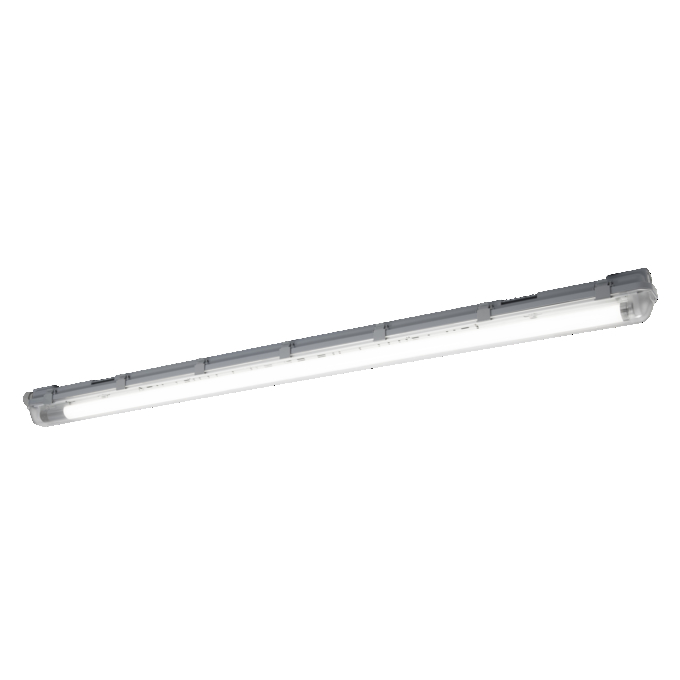

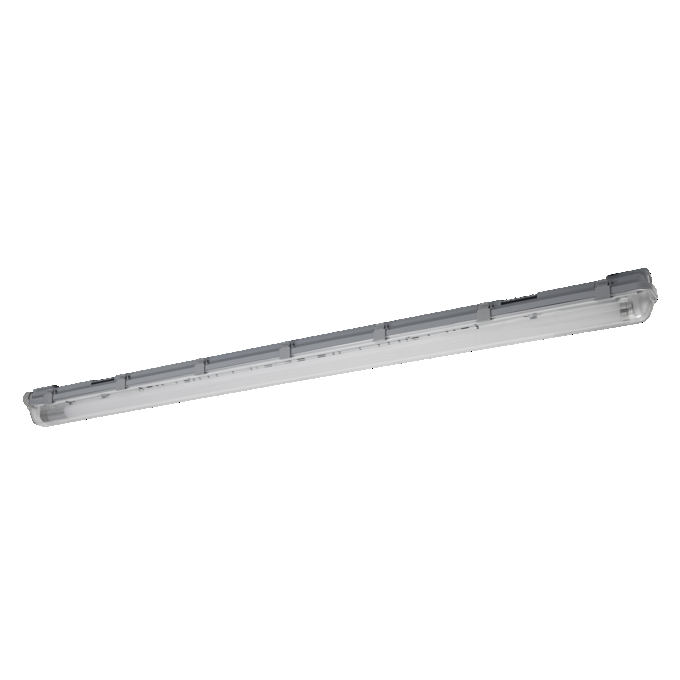

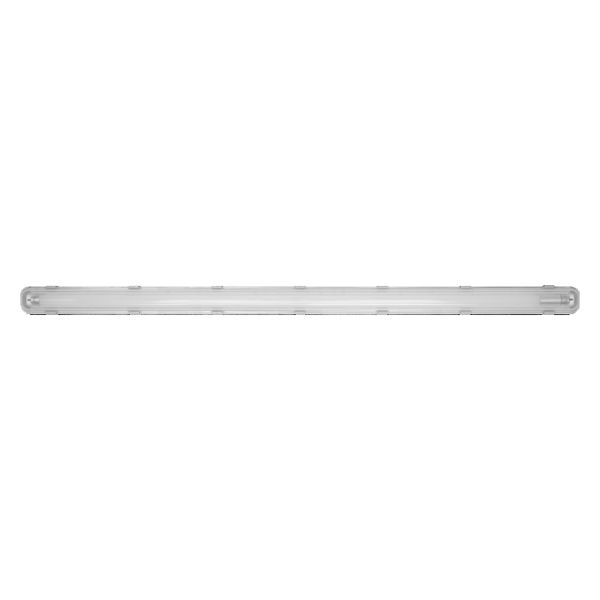

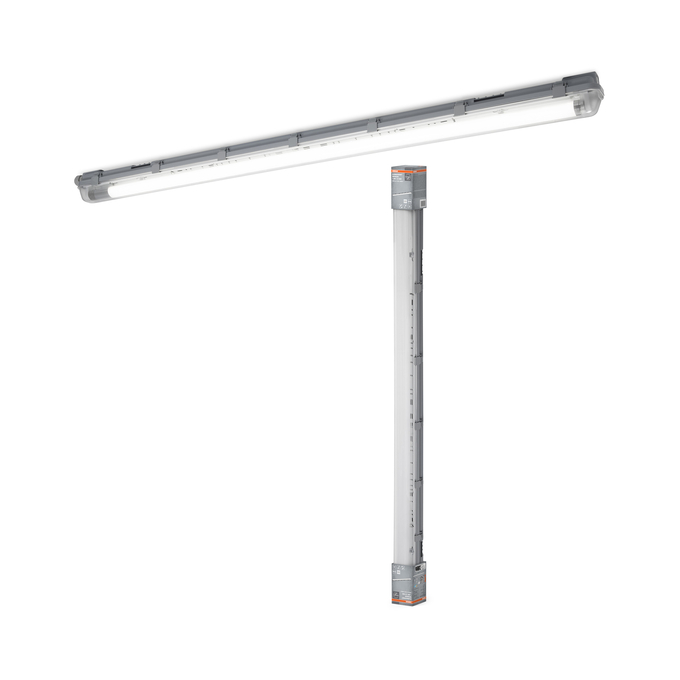

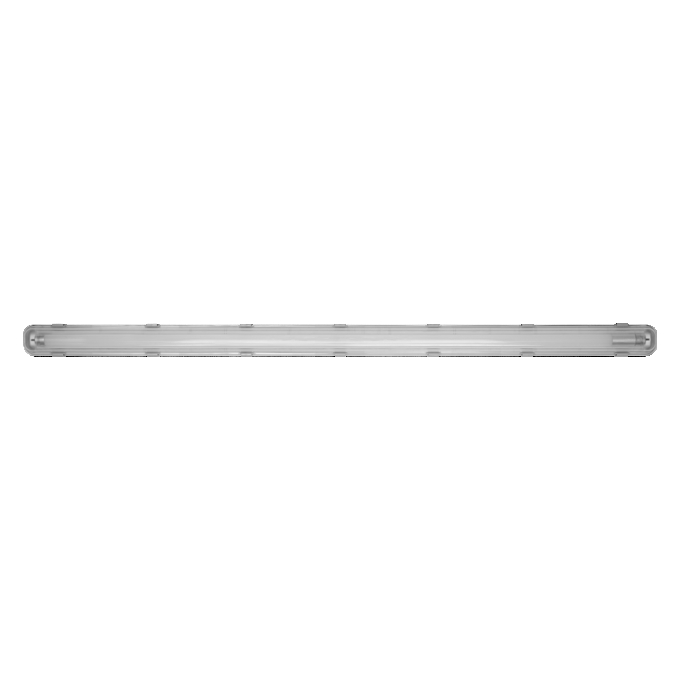

Submarine Sensor 120cm 16W 4000K
4099854429095
Product benefits
- Easy installation thanks to improved space for mounting brackets and easy to open tray
- Quick and easy lamp replacement
- Good, even illumination
- Allows for energy savings and comfortable operation due to sensor control
Areas of application
- Basements, garages, warehouses
- For indoor use only
Product features
- Durable and energy-saving LED luminaire
- Dust-protected and jet-proof (IP65)
- Detection range: 100% with hold time: 3 minutes as default setting
- Motion sensor (microwave technology) with adjustable detection parameters
Equipment / Accessories
- Motion Sensor is included in the Submarine Housing. Should work with every LED Tube
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+35 °C
Beam angle
140 °
Body material
Plastic
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854429095
Height
75.00 mm
Holder designation
G13
Housing color
Grey
Length
1261.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Lifespan L80/B10 at 25 °C
30000 h 1)
Lifespan L90/B10 at 25 °C
30000 h
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
105 lm/W
Luminous flux
1600 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal voltage
220…240 V
Nominal wattage
16.00 W
Number of illuminants
1
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product weight
1100.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Replaceable light source
Yes
Sensor technology
Microwave
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 20 %
Total luminous flux of contained light sources
1800 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP65
Type of sensor
Motion
Width
66.00 mm
With light source
Yes
