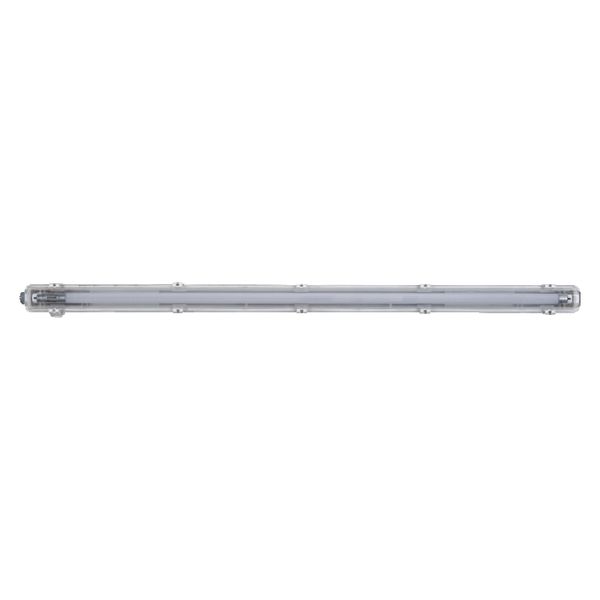

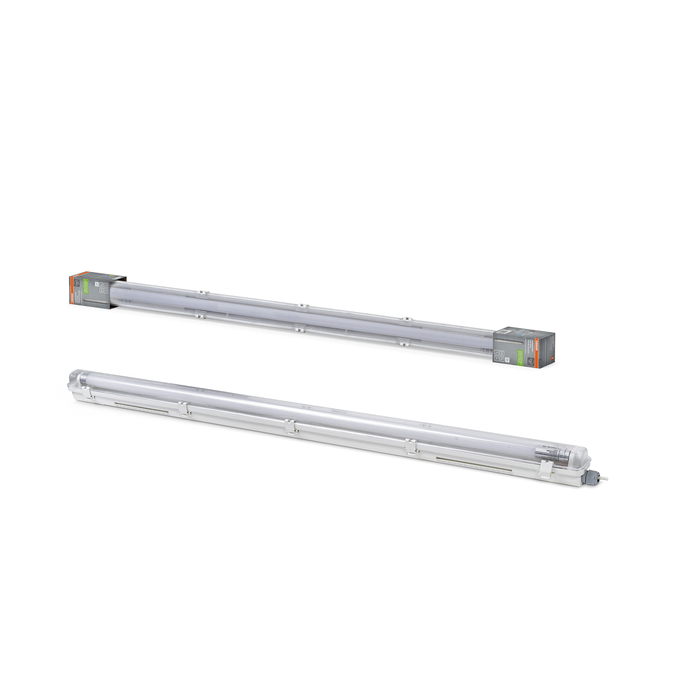

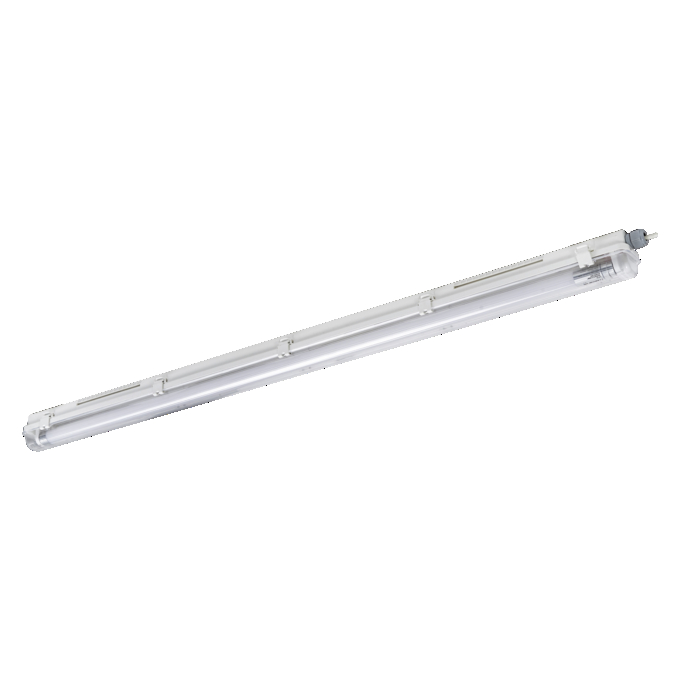

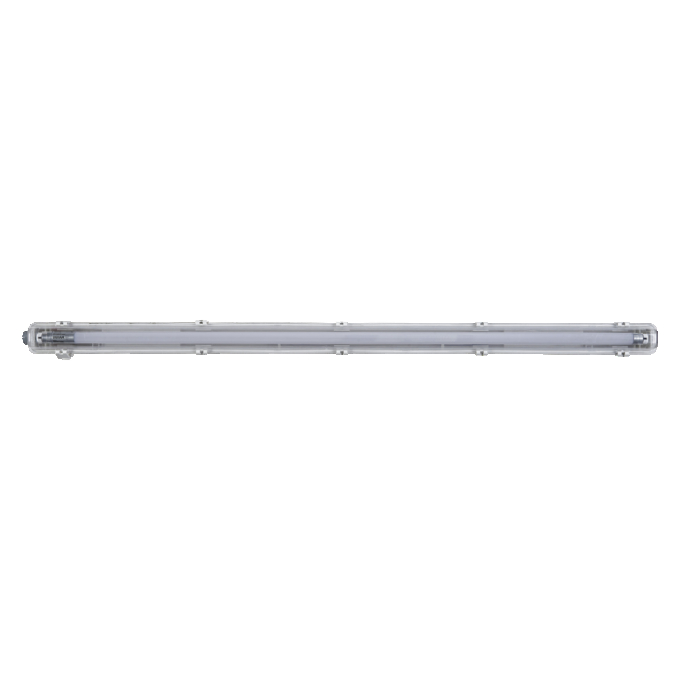

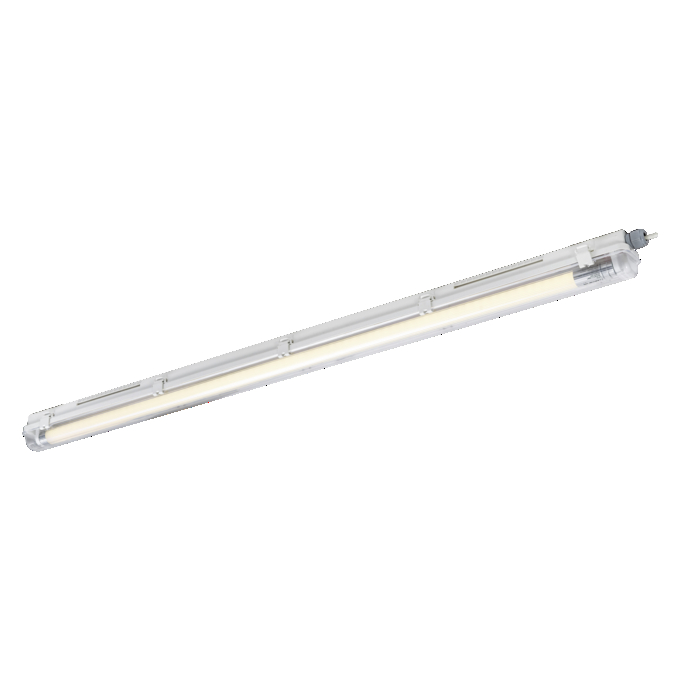

Submarine Recycled Plastic 120 1 X 13.5W 840 G13 T8
4099854462498
Product benefits
- Easy installation thanks to improved space for mounting brackets and easy to open tray
Areas of application
- Basements, garages, warehouses
- For indoor use only
Product features
- Damp-proof luminaire with LED tube for mains voltage operation
- Durable and energy-saving LED luminaire
- Dust-protected and jet-proof (IP65)
- Mercury-free and RoHS compliant
- M20 cable gland for 8-12 mm cables
- Minimum 50 % of recycled plastic (out of total plastic weight) used
Equipment / Accessories
- Energy Class D LED TUBE T8 EM P is delivered with the product
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854462498
Height
70.00 mm
Holder designation
G13
Housing color
White
Inrush current time Th50
482 µs
Length
1280.00 mm
Lifespan L70/B50 at 25 °C
40000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
115 lm/W
Luminous flux
1550 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
15
Max. number of luminaires per miniature circuit breaker C10
16
Max. number of luminaires per miniature circuit breaker C16
25
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
62.000 mA
Nominal voltage
220…240 V
Nominal wattage
13.50 W
Number of illuminants
1
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Maximum tube wattage: 17 W
Product weight
903.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Replaceable light source
Yes
Standard deviation of color matching
≤5 sdcm
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
2100 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP65
UGR
< 25
Width
65.00 mm
With light source
Yes
