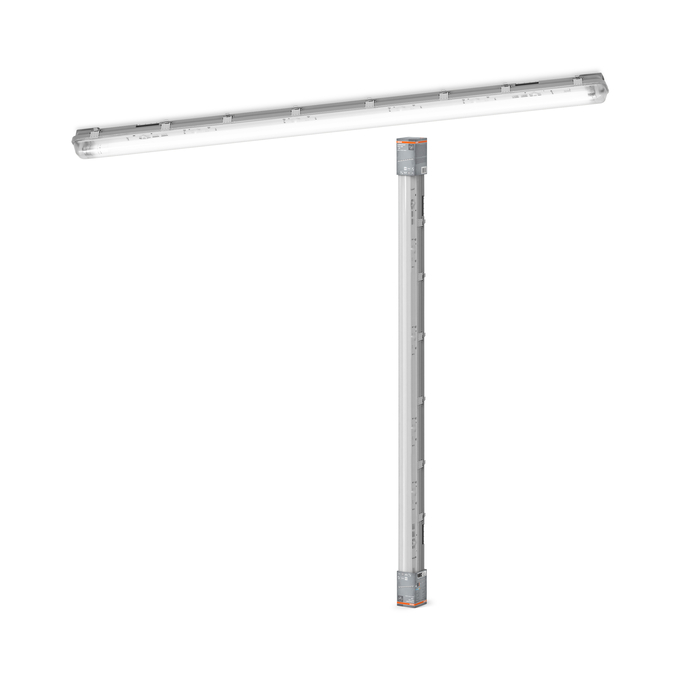

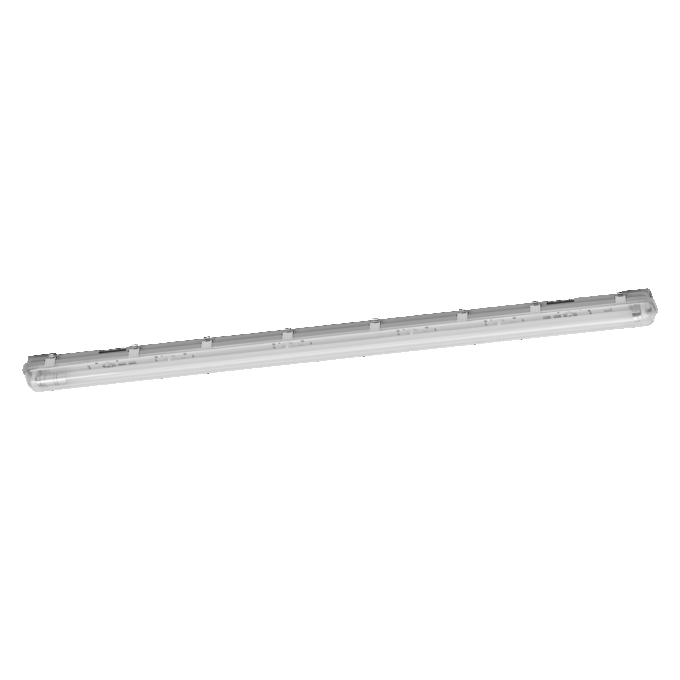

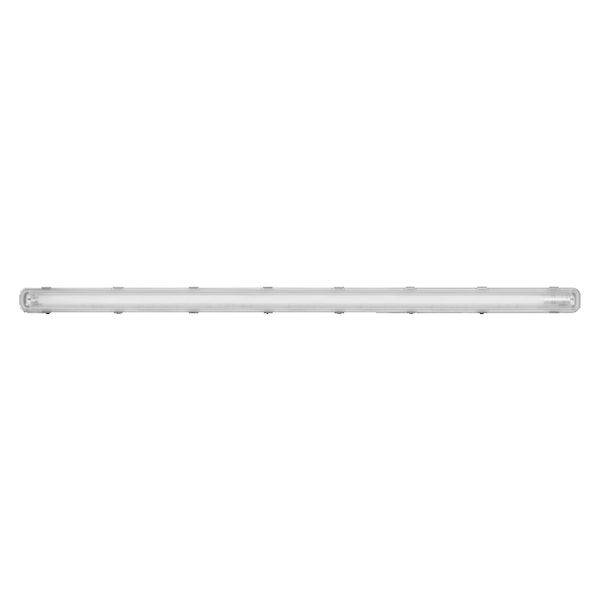

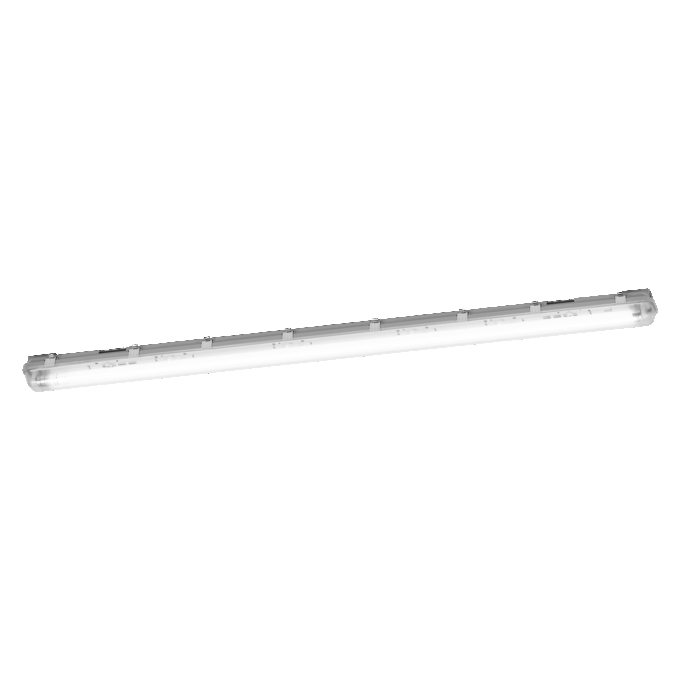

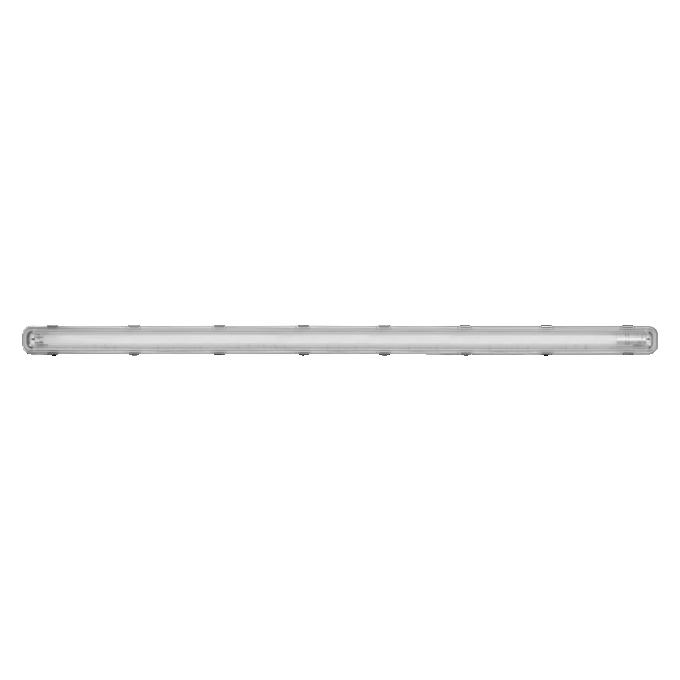

Submarine PRO LED 150 cm 26 W 840
4099854789113
Product benefits
- Up to 59 % more light
- High quality and robust
- Easy installation
Areas of application
- Basements, garages, warehouses
Product features
- Damp-proof luminaire with LED tube for mains voltage operation
- Dust-protected and jet-proof (IP65)
- OSRAM LED Tube T8 EM in Energy Label D class included
- Robust, long-lasting metal clips
- Tool-free and easy to install via fast connector
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+35 °C
Ball shot safe
No
Beam angle
150 °
Body material
Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854789113
Height
76.00 mm
Holder designation
G13
Housing color
Grey
Inrush current
31.2 A
Inrush current time Th50
1.73 µs
Length
1561.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
108 lm/W
Luminous flux
2800 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C10
19
Max. number of luminaires per miniature circuit breaker C16
30
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
115.000 mA
Nominal voltage
220…240 V
Nominal wattage
26.00 W
Number of illuminants
1
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Grey
Product recyclability
Mostly recyclable product 1)
Product remark
Maximum tube wattage: 26 W
Product weight
1340.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Replaceable light source
Yes
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
3500 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP65
Width
64.00 mm
With light source
Yes
