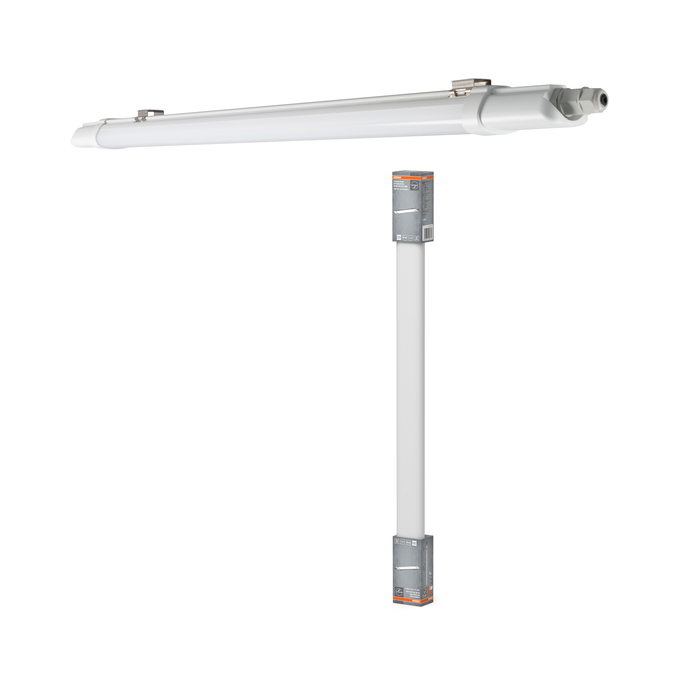

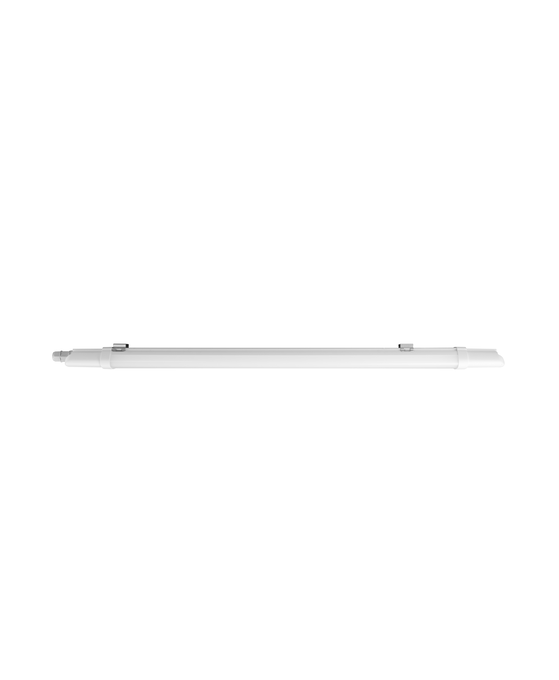

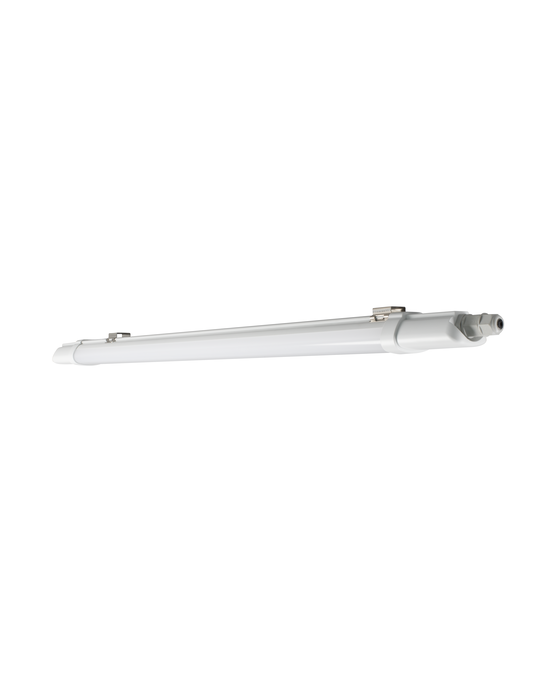

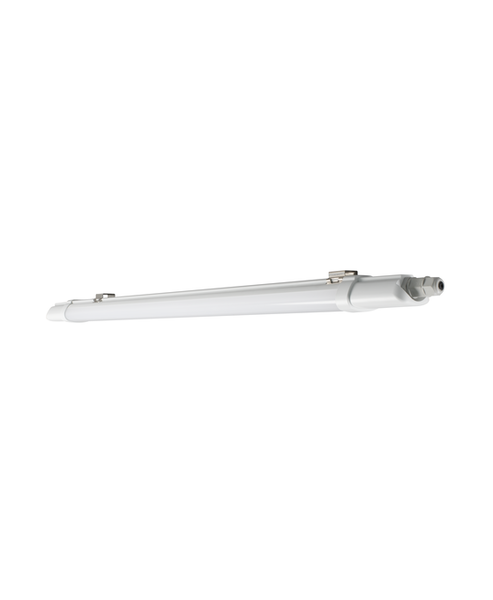

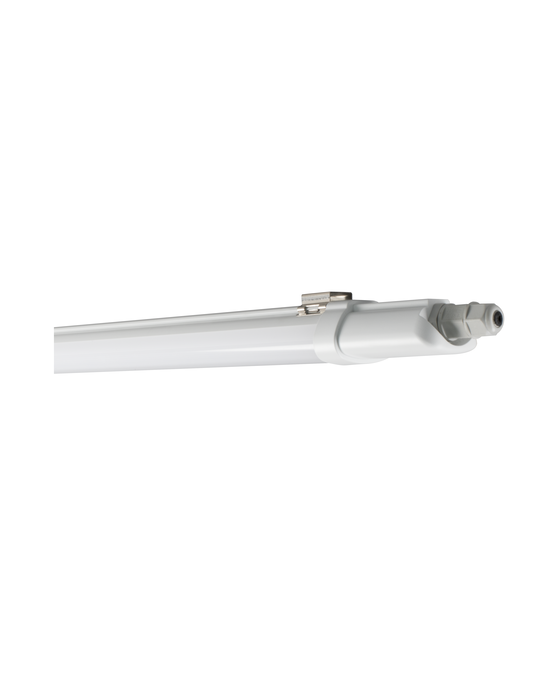

Submarine Integrated Slim Value 0.6M 10W 4000K
4099854428975
Product benefits
- Easy installation, no tools required for connection
- Impressive for its low-profile design
Areas of application
- Basements, garages, warehouses
Product features
- Damp-proof luminaires
- Dust-protected and jet-proof (IP65)
- Extremely low profile
- Not dimmable
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+35 °C
Application environment
Indoor
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
GTIN
4099854428975
Height
35.00 mm
Housing color
White
Length
715.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
90 lm/W
Luminous flux
900 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
85
Max. number of luminaires per miniature circuit breaker C16
85
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
100.000 mA
Nominal voltage
220…240 V
Nominal wattage
10.00 W
Number of illuminants
empty
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
194.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
1200 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP65
Width
53.00 mm
With light source
Yes
