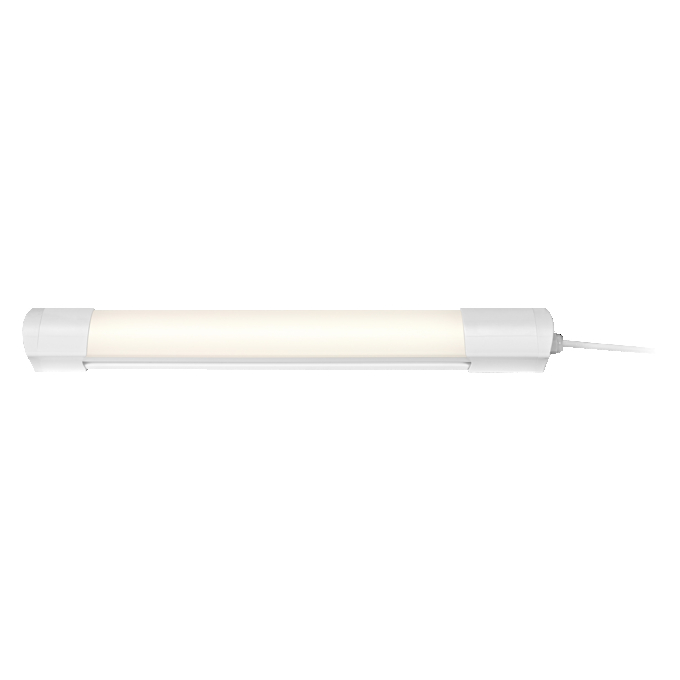

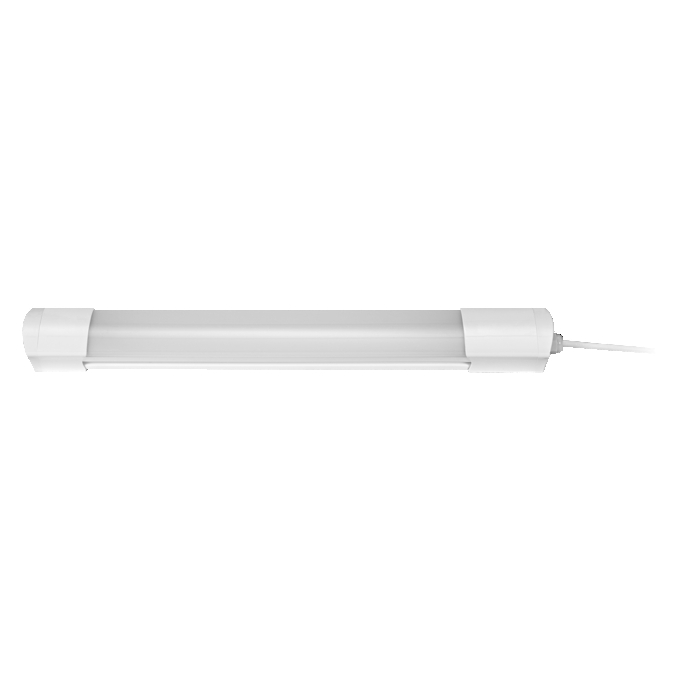

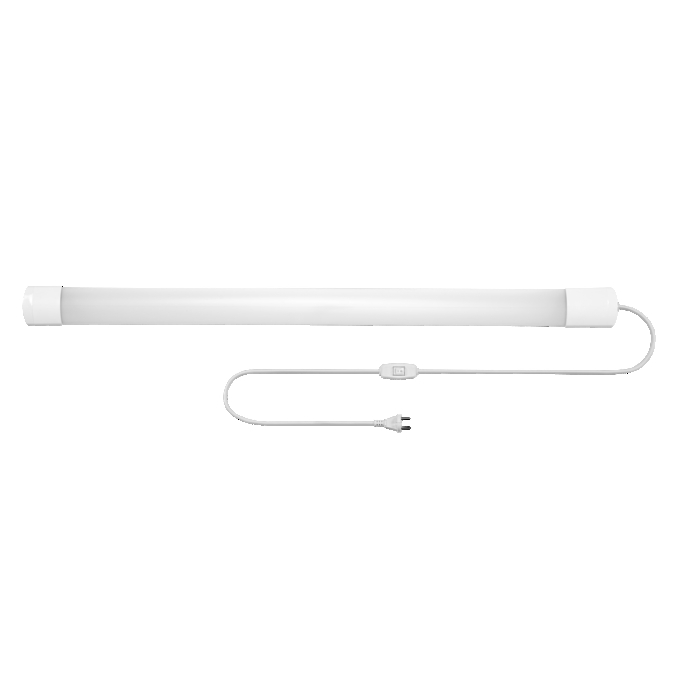

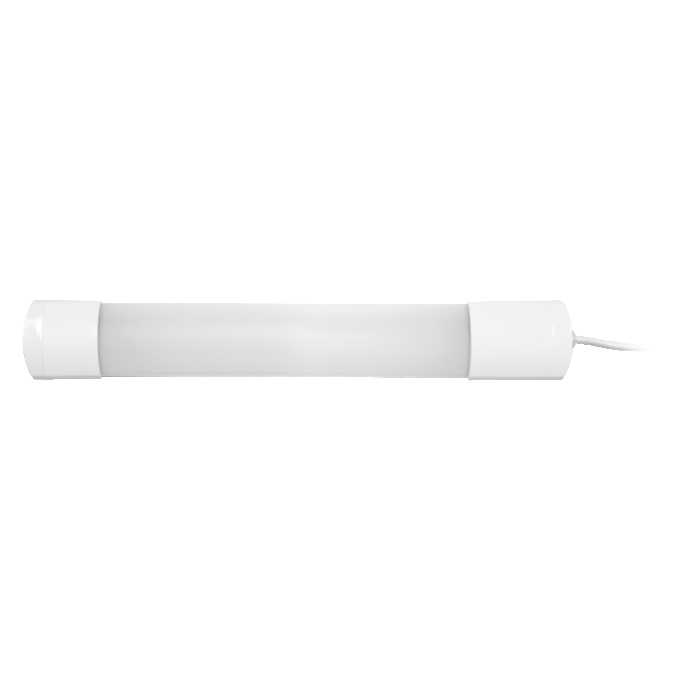

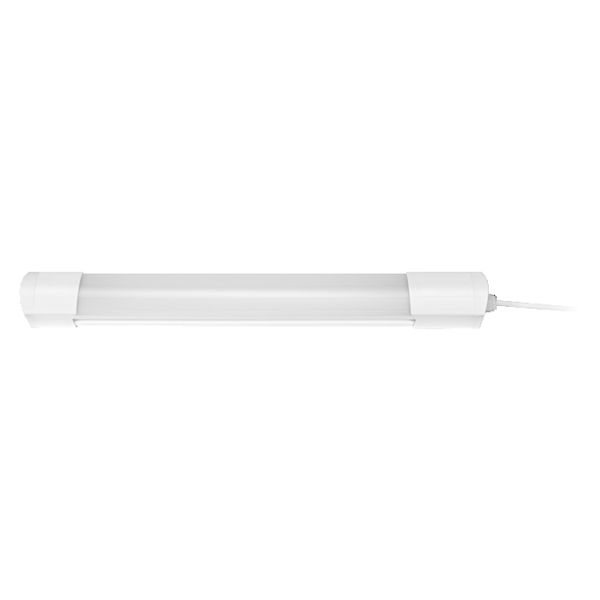

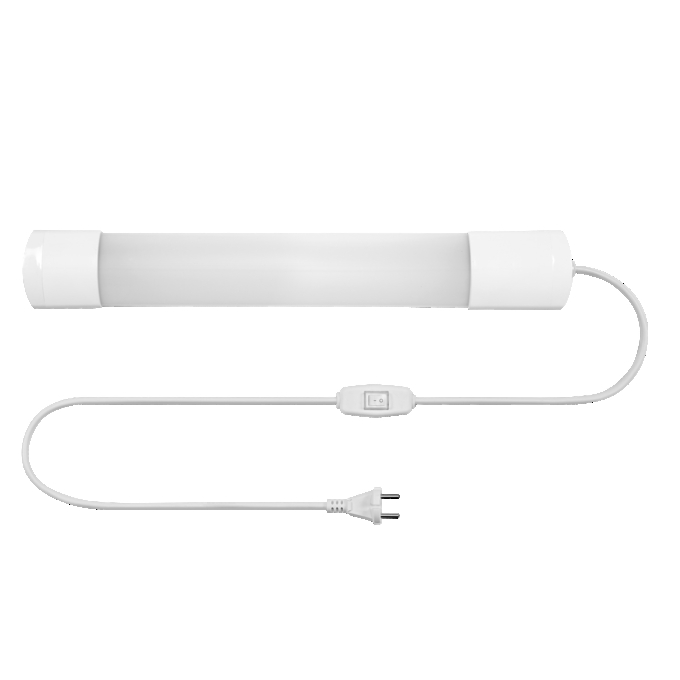

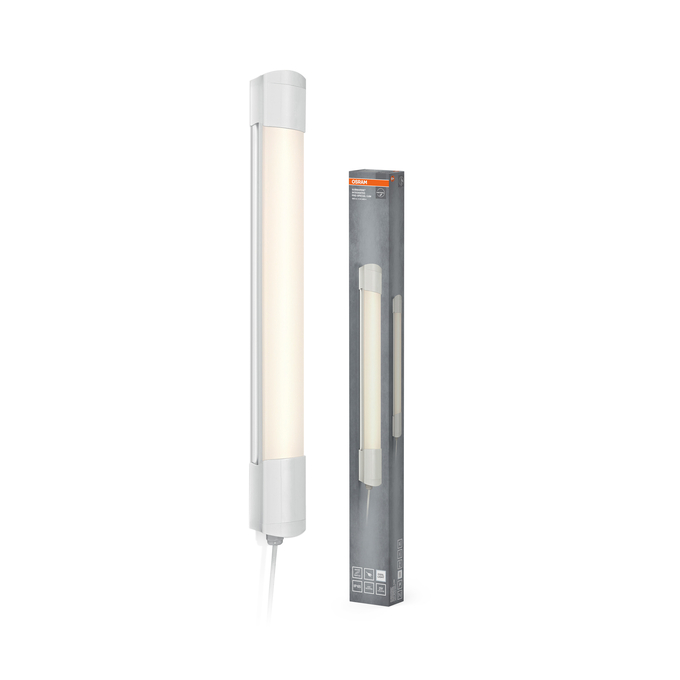

Submarine Integrated PRO Special 60 cm 18 W EU Plug
4099854870934
Product benefits
- Easy installation and linking thanks to cover that can be simply opened
- Very homogenous light
Areas of application
- Basements, garages, warehouses
Product features
- LED integrated Damp-proof luminaire for mains voltage operation with EU Plug and Switch
- Dust-protected and jet-proof (IP65)
Equipment / Accessories

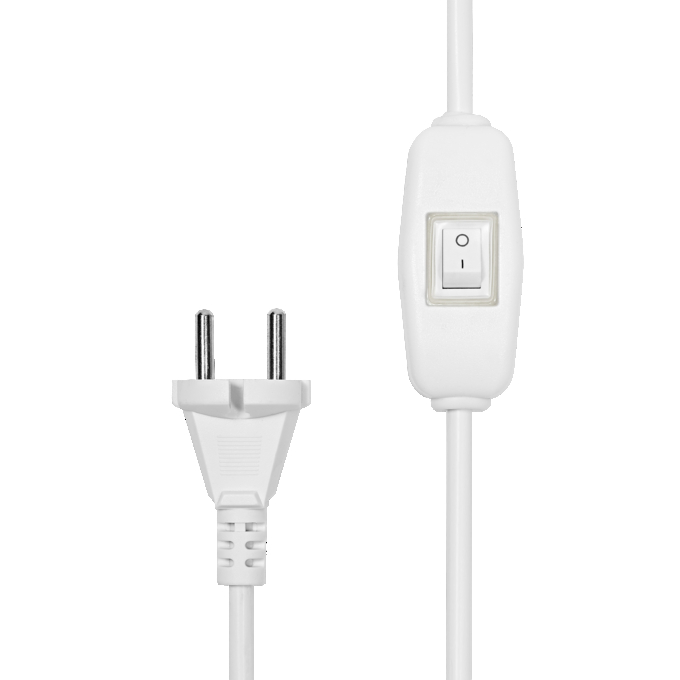

- Equipped with 2 m cable, EU plug and dust- and jet-proof switch
Safety advice
- All electrical connections must be made by a qualified person.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854870934
Height
50.00 mm
Housing color
White
Inrush current
17.2 A
Inrush current time Th50
220 µs
Length
600.00 mm
Lifespan L70/B50 at 25 °C
40000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
2160 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
19
Max. number of luminaires per miniature circuit breaker C10
17
Max. number of luminaires per miniature circuit breaker C16
27
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
145.000 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
575.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 5 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Temperature range at storage
-40…80 °C
Total harmonic distortion
< 130 %
Total luminous flux of contained light sources
2600 lm
Type of connection
Plug type C (EU)
Type of protection
IP65
Width
79.00 mm
With light source
Yes
