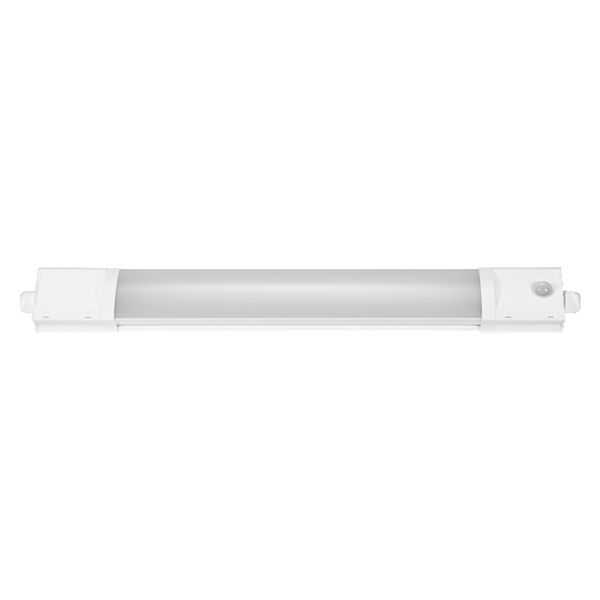

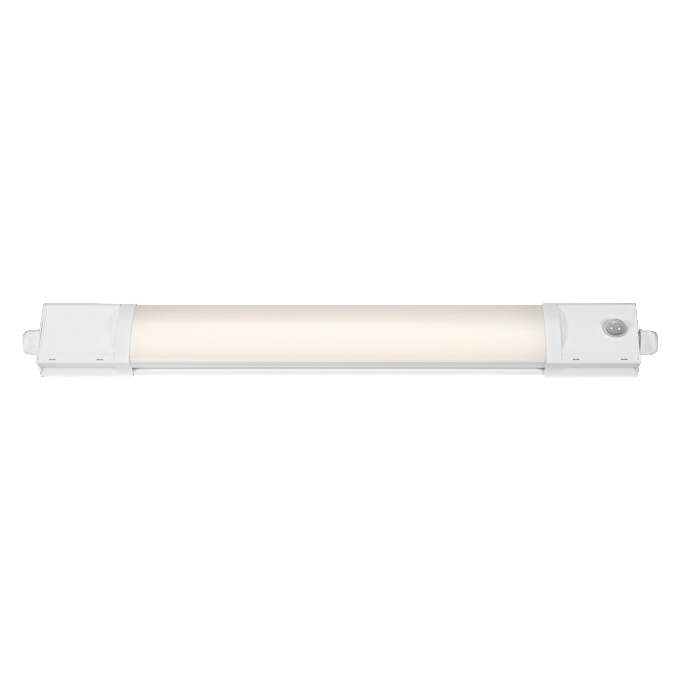

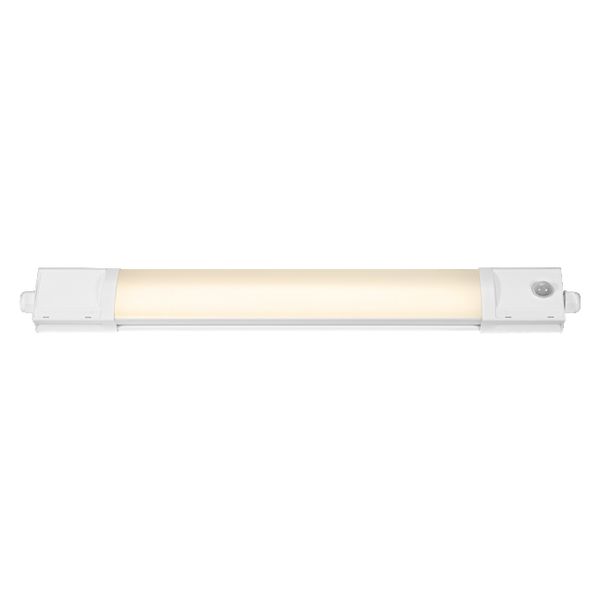

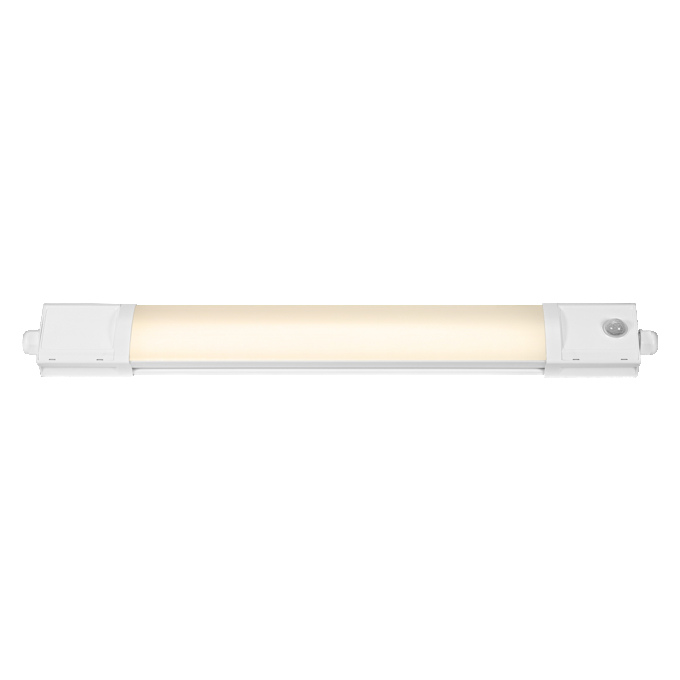

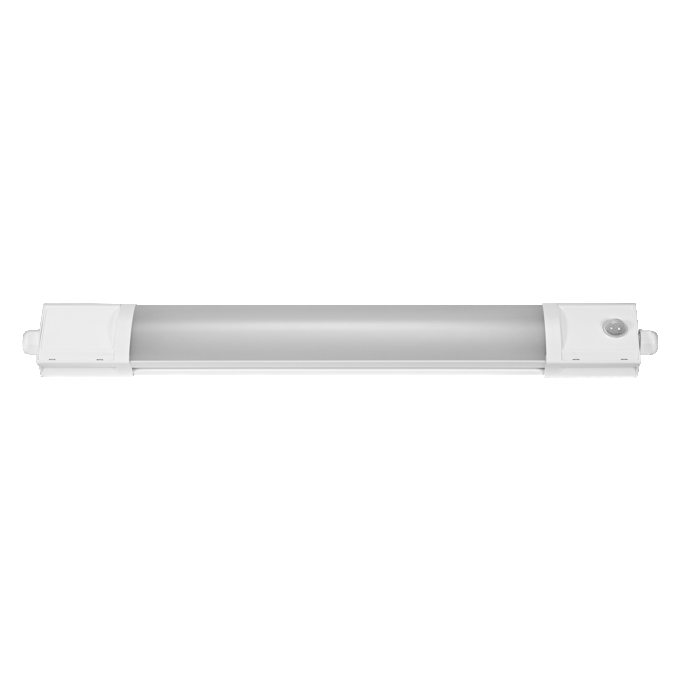

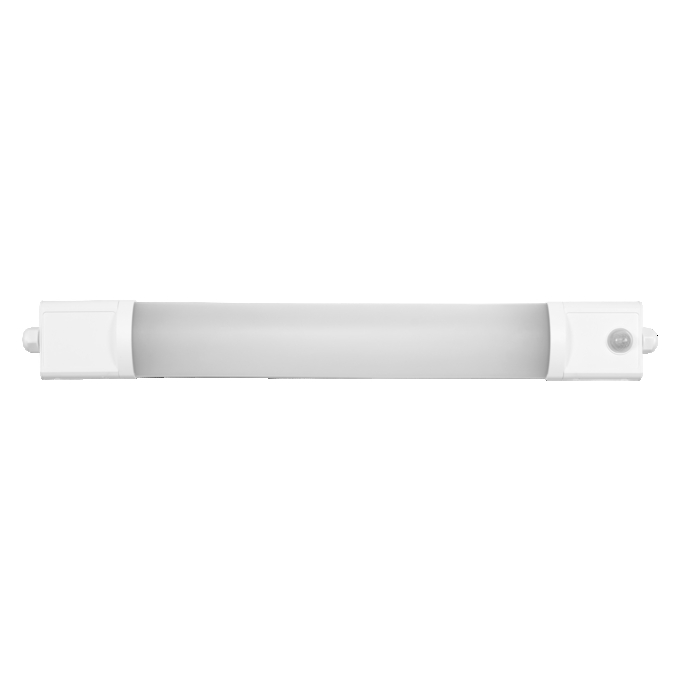

Submarine Integrated PRO Advanced 60 cm 18 W Thruwiring Sensor CCT Remote Control
4099854870897
Product benefits
- Easy installation and linking thanks to cover that can be simply opened
- Very homogenous light
Areas of application
- Basements, garages, warehouses
Product features
- LED integrated Damp-proof luminaire for mains voltage operation
- Dust-protected and jet-proof (IP65)
- PIR Motion sensor with adjustable detection parameters
- Possibility to connect up to 20 luminaires
- Light color selectable between 3000 K / 4000 K / 6500 K

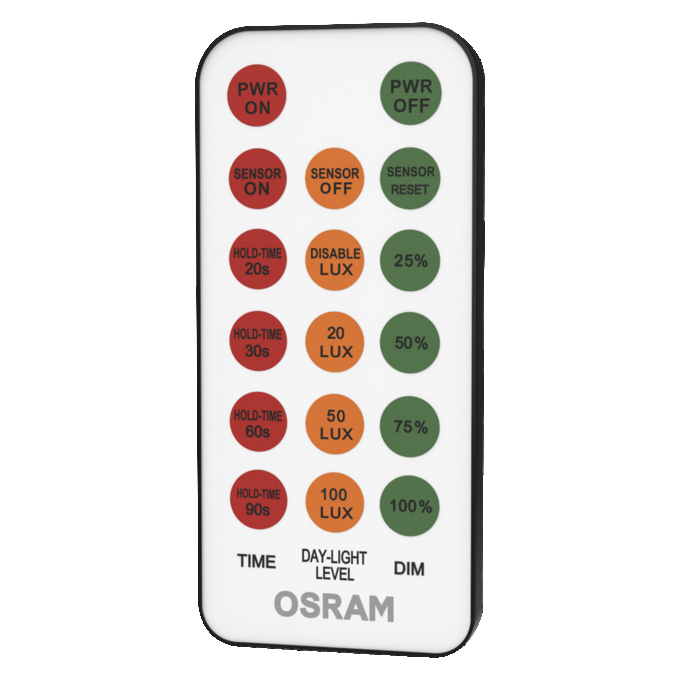

- Controllable via Remote Control

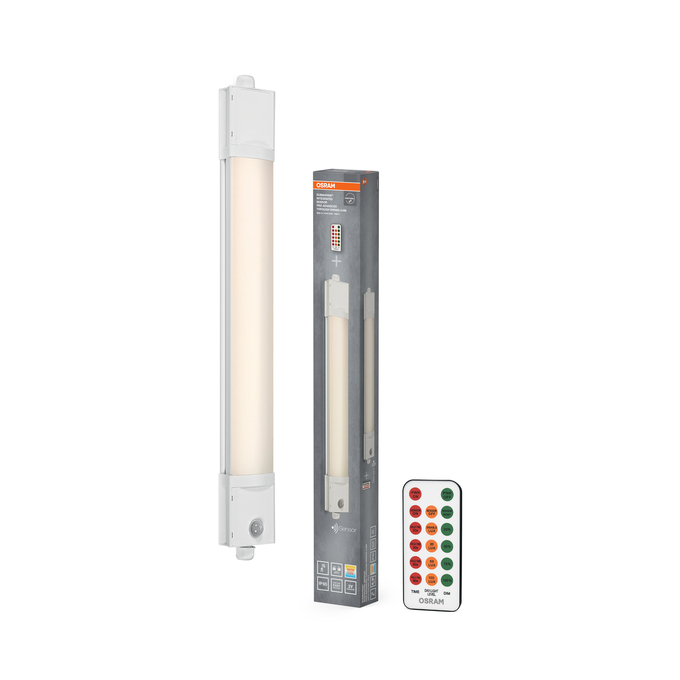

Equipment / Accessories
- Complete mounting and connecting accessories included
- Remote control and battery included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Battery size [GMS]
CR2025
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
850 °C
GTIN
4099854870897
Height
51.40 mm
Housing color
White
Inrush current
17.2 A
Inrush current time Th50
220 µs
Length
620.00 mm
Lifespan L70/B50 at 25 °C
40000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
120 lm/W
Luminous flux
2160 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
19
Max. number of luminaires per miniature circuit breaker C10
17
Max. number of luminaires per miniature circuit breaker C16
27
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting height
3.5 m
Mounting location
Ceiling
Mounting type
Surface
Nominal current
145.000 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
360.00 g
Protection class
II
Protection class IK (shock resistance)
IK08
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor detection angle
120 °
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
< 5 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-40…80 °C
Total harmonic distortion
< 130 %
Total luminous flux of contained light sources
2600 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP65
Type of sensor
Motion
Width
77.00 mm
With light source
Yes
