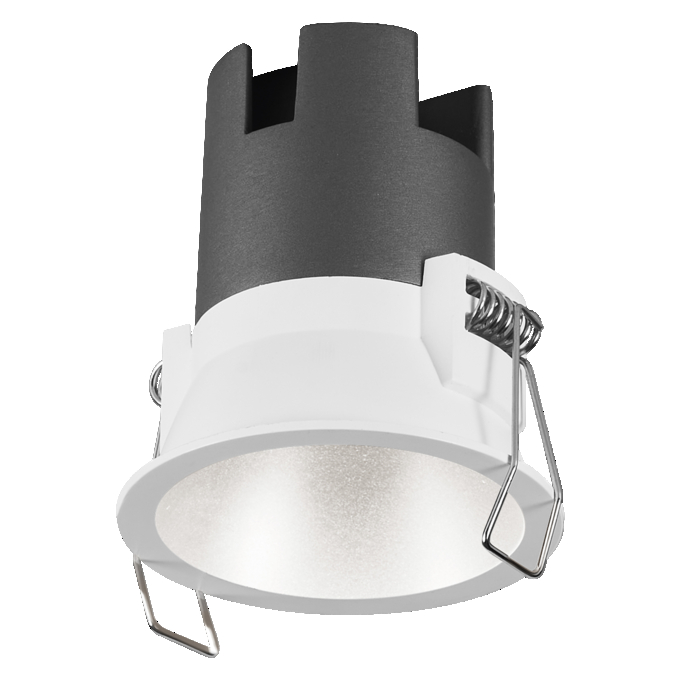

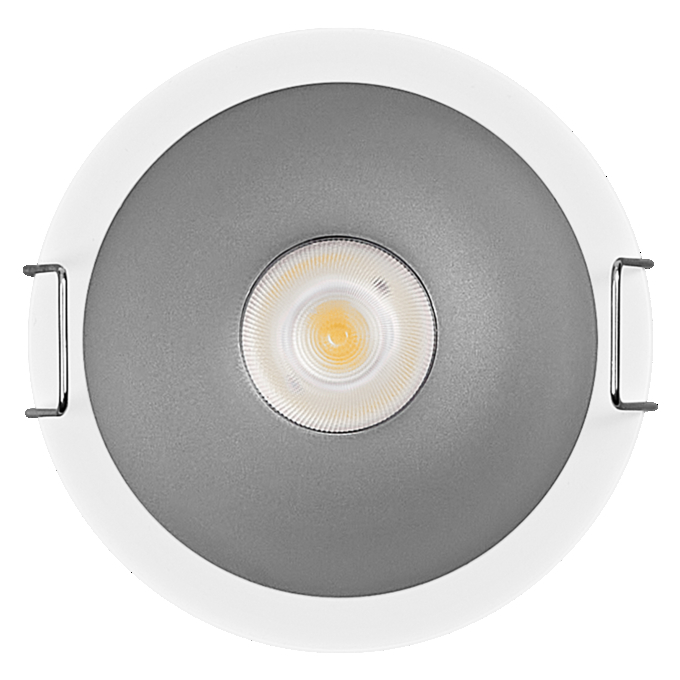

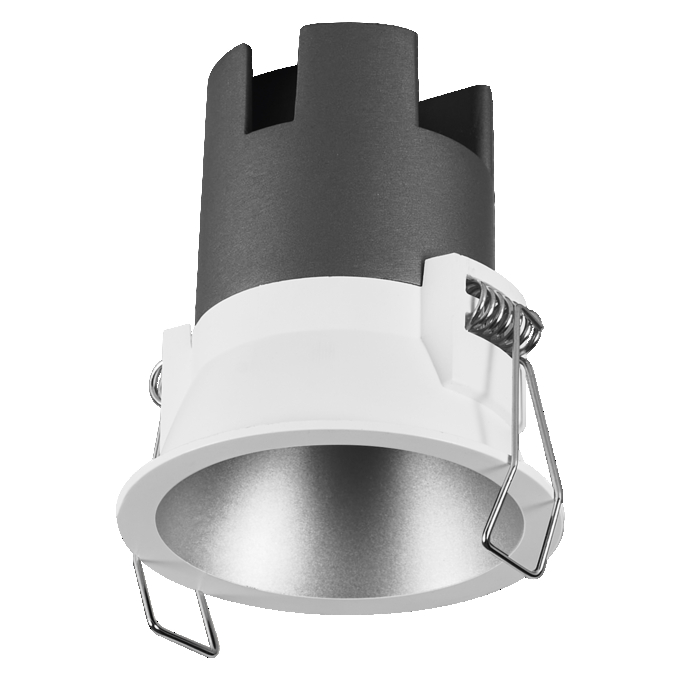

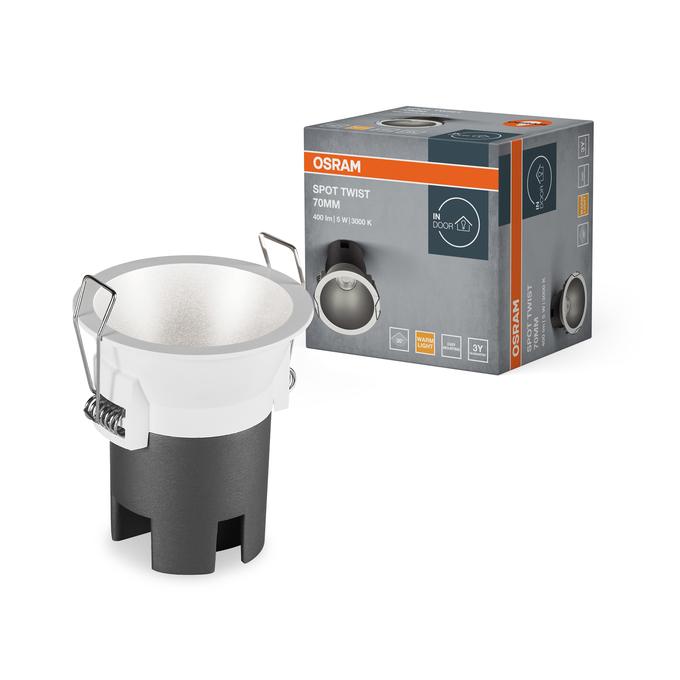

Spot Twist 70mm 5W 3000K White Silver
4099854446214
Product benefits
- Energy savings of up to 90 % compared to halogen lamp spotlights
- Easy installation and electrical connection thanks to tool-free electrical connectors
Areas of application
- Indoor applications
- General illumination
Product features
- Silicon-pad protected springs
Equipment / Accessories
- Connector box not included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-10…+45 °C
Beam angle
30 °
Body material
Aluminum|Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
70.00 mm
Dimmable
No
ECG - Height
25 mm
ECG - Length
82 mm
ECG - Width
35 mm
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854446214
Height
77.00 mm
Housing color
White|Silver
Inrush current time Th50
10 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
80 lm/W
Luminous flux
400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
250
Max. number of luminaires per miniature circuit breaker C10
150
Max. number of luminaires per miniature circuit breaker C16
250
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
100 mm
Mounting diameter
65 mm
Mounting type
Recessed
Nominal current
50.000 mA
Nominal voltage
220…240 V
Nominal wattage
5.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Output current
105 mA
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.5
Product color
White|Silver
Product recyclability
Mostly recyclable product 1)
Product weight
155.00 g
Protection class
II
Protection class IK (shock resistance)
IK02
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-20…+80 °C
Type of connection
Screw terminal, 2-Pole (L,N)
Type of protection
IP20
With light source
Yes
