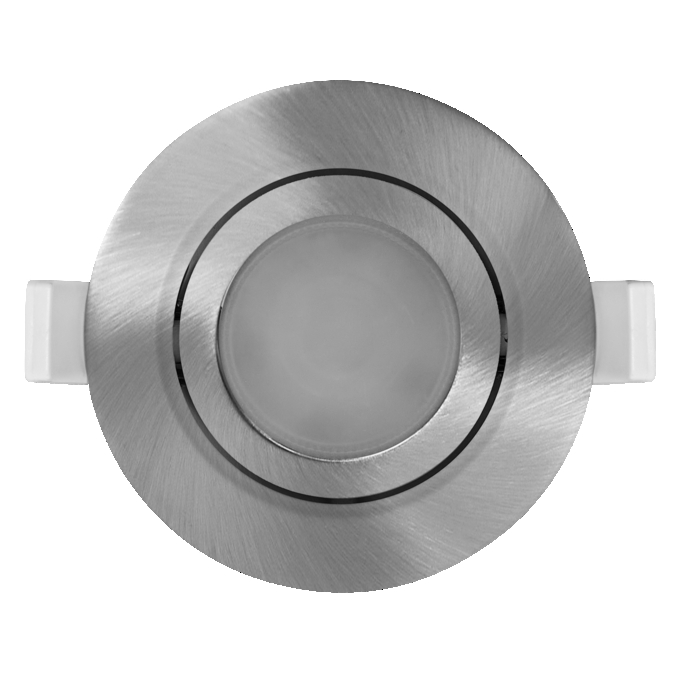

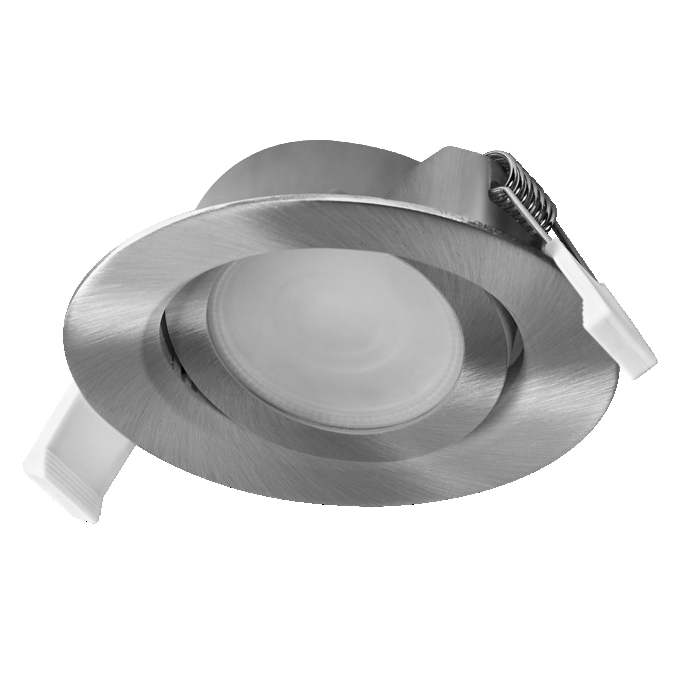

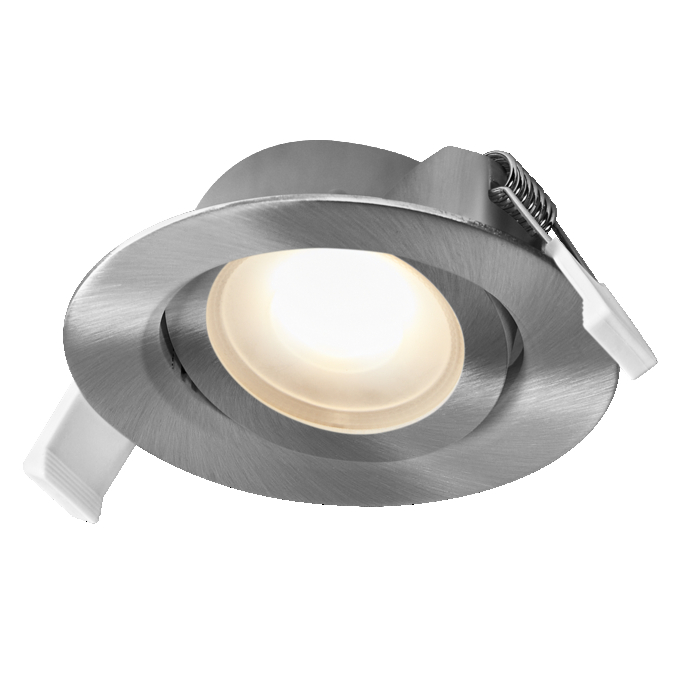

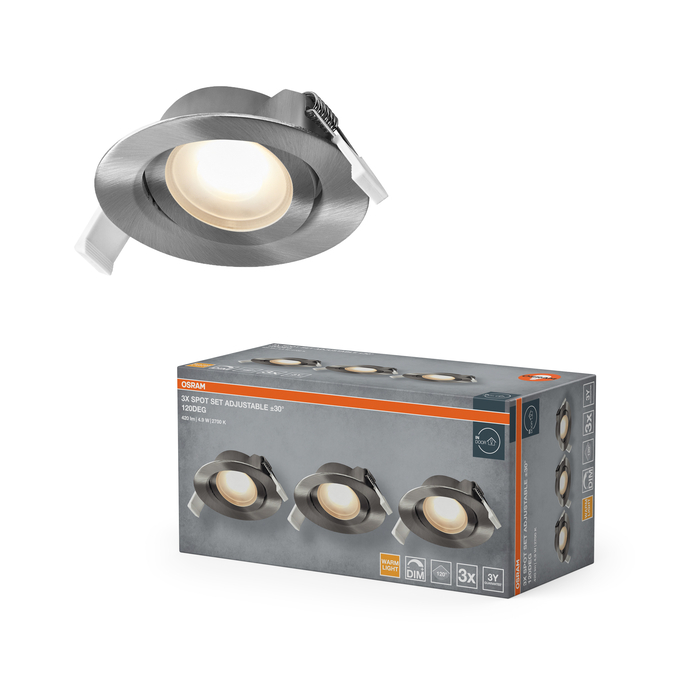

Spot Set Recess DIM 4.9W 827 120° Satin Nickel
4058075853799
Product benefits
- Can be rotated and swiveled for optimum illumination
- Through-wiring possible with included connector box
- Easy mounting
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Recessed ceiling mounting
- Dimmable (with suitable Phase-cut dimmers)
- Adjustable swivel angle
- With integrated LED module and driver
- Color temperature: 2,700 K
- Through wiring possible
- Type of protection: IP20
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
120 °
Body material
Aluminum|Plastic
Color rendering index Ra
80
Color temperature
2700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
90.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075853799
Height
27.50 mm
Housing color
Satin Nickel
Inrush current
4.1 A
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
41 lm/W
Luminous flux
200 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
38
Max. number of luminaires per miniature circuit breaker C10
24
Max. number of luminaires per miniature circuit breaker C16
38
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
40 mm
Mounting diameter
75 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
33.000 mA
Nominal voltage
220…240 V
Nominal wattage
4.90 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.40
Product color
Satin Nickel
Product recyclability
Mostly recyclable product 1)
Product weight
96.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
420 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
PHASE CUT
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
