Spot Set Adj Simple Dim 3 x 4.9W 2700K White
4099854445842
Product benefits
- WAGO Fast-Connector-Terminal for easy and safe installation
- Timeless design
- Easy mounting
- Connection of up to 10 luminaires in a row
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Suspended ceilings
Product features
- With integrated LED module and driver
- Low mounting depth

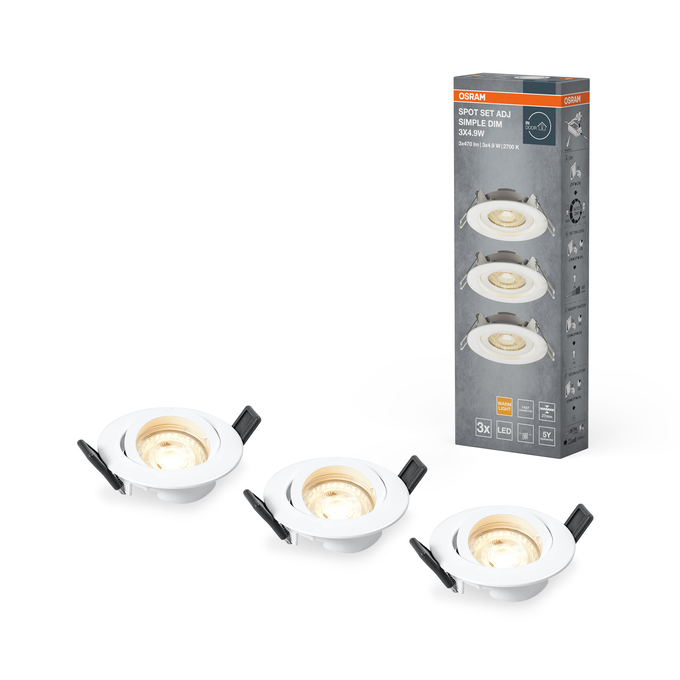

- Set of 3 luminaires
- Adjustable head
- Housing material: aluminum
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
Ambient temperature range
-20…+40 °C
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
80
Color temperature
2700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Additional info can be provided per individual request
Diameter
90.00 mm
Dimmable
Yes
GTIN
4099854445842
Height
27.50 mm
Housing color
White
Lifespan L70/B50 at 25 °C
15000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
90 lm/W
Luminous flux
400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker C10
26
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
40 mm
Mounting diameter
75…80 mm
Mounting type
Recessed
Nominal current
38.000 mA
Nominal voltage
220…240 V
Nominal wattage
4.90 W
Number of illuminants
3
Number of switching cycles
100000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG1
Photobiological safety group acc. to EN62778
RG1
Power factor λ
≥0.4
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
90.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
470 lm
Type of connection
Screw terminal
Type of protection
IP20
With light source
Yes
