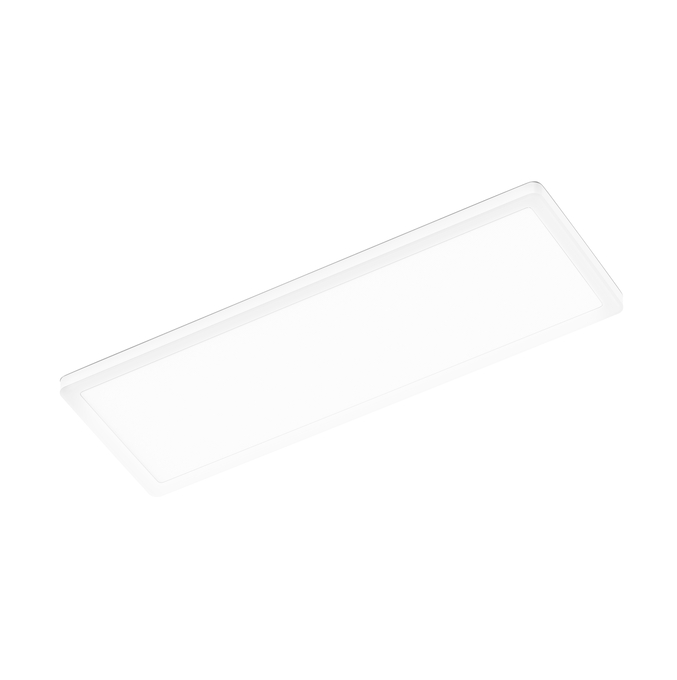

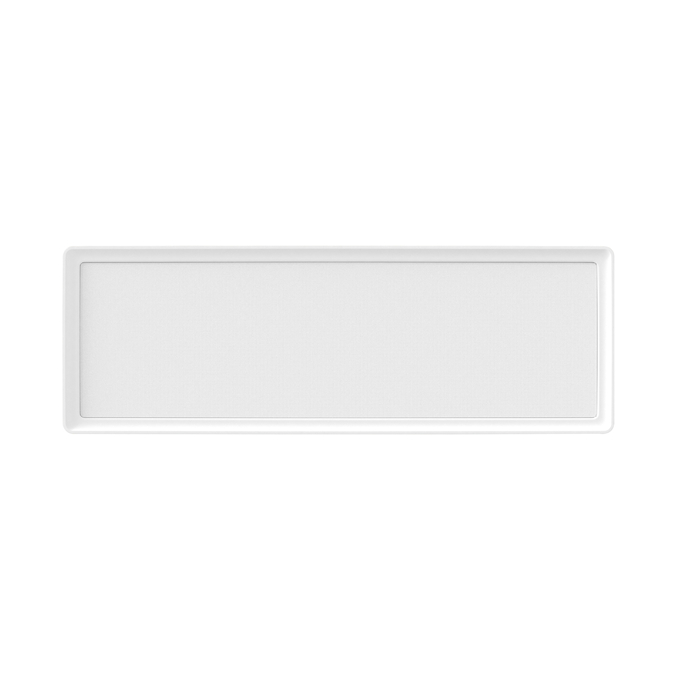

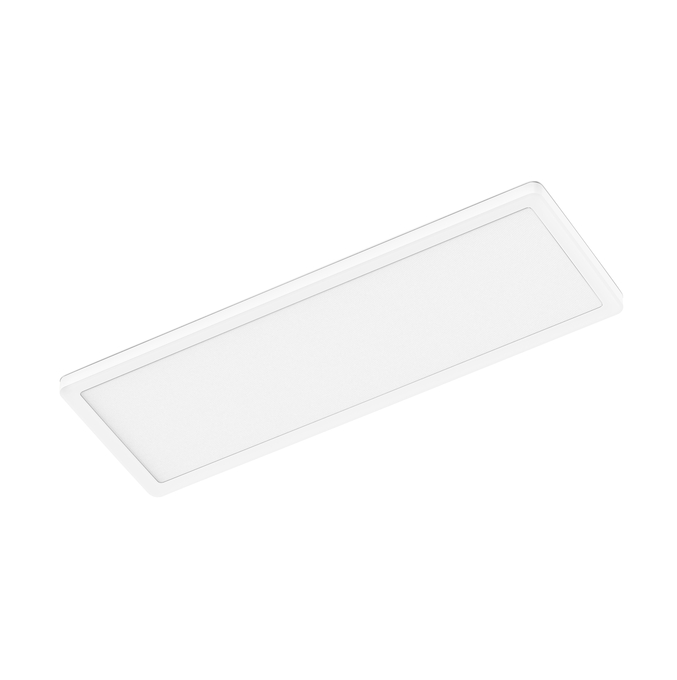

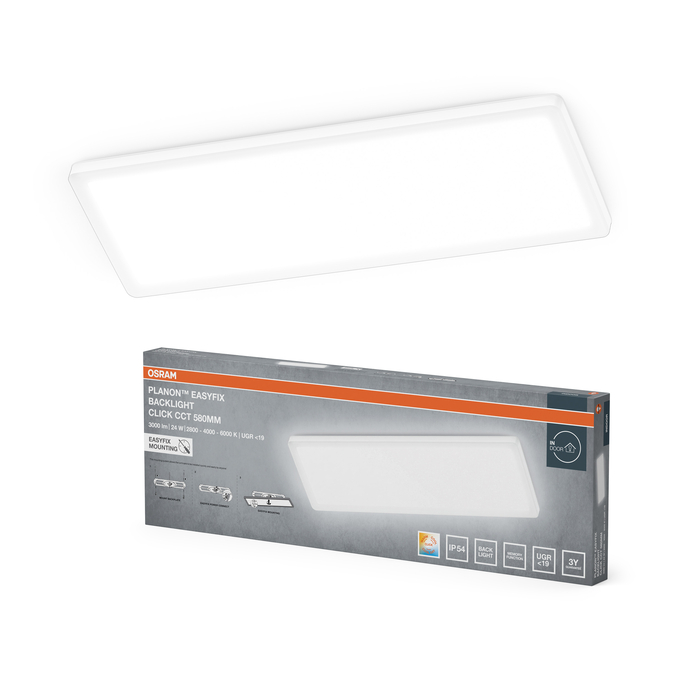

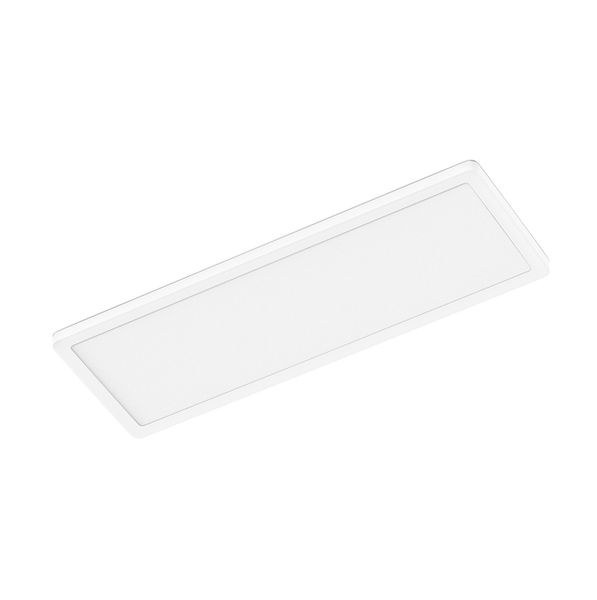

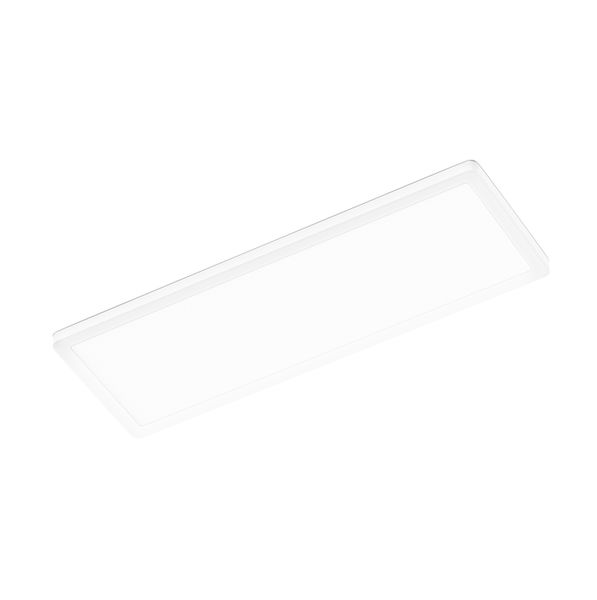

Planon Easyfix 580 mm 24 W CCT UGR19 IP54 White
4099854835032
Product benefits
- Light color change via wall switch
- Easy mounting
- Very homogenous light with a slight backlight effect
- Type of protection: IP54 (room side) provides additional protection against humidity
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
- Bathrooms
- Workshops, garages, covered outdoor storage areas
Product features
- Easy mounting by single person
- UGR < 19 reduces glare, ensuring eye comfort
- Click-CCT version: color temperature adjustable in three steps by repeated switching
- Type of protection: IP54
- Memory function of the light setting
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
90 °
Body material
Polyprophylene (PP)
Color rendering index Ra
> 80
Color temperature
2800 K / 4000 K / 6000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854835032
Height
31.00 mm
Housing color
White
Inrush current
0.17 A
Inrush current time Th50
128 µs
Length
580.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
87 lm/W
Luminous flux
2100 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
75
Max. number of luminaires per miniature circuit breaker C10
47
Max. number of luminaires per miniature circuit breaker C16
75
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Surface
Mounting type
Surface
Nominal current
170.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1020.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 180 %
Total luminous flux of contained light sources
3000 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP54
UGR
< 19
Width
200.00 mm
With light source
Yes
