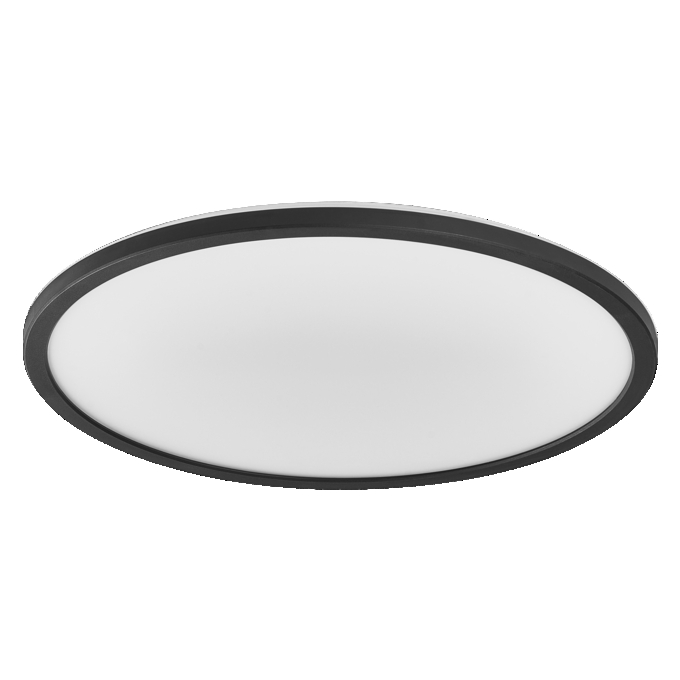

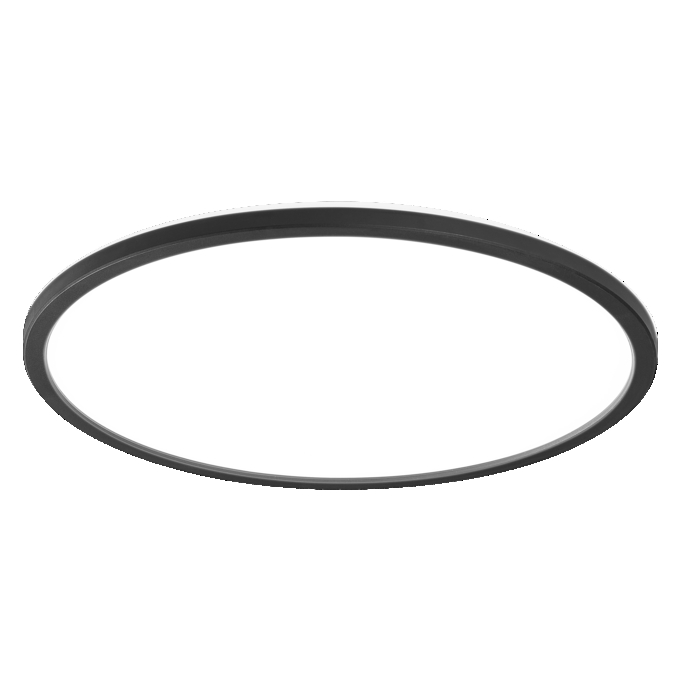

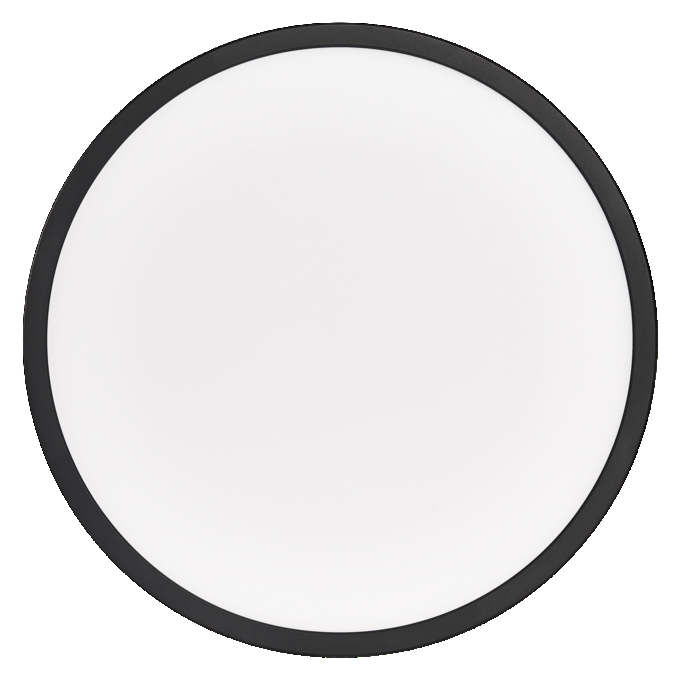

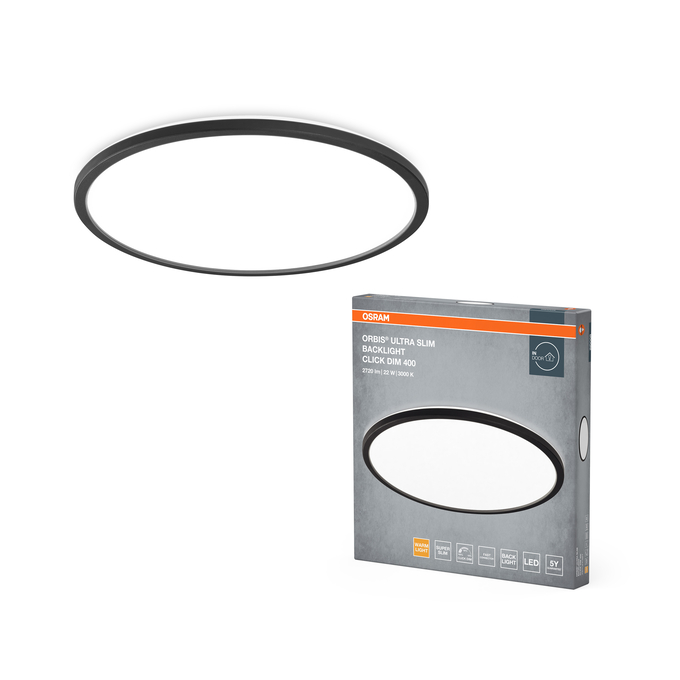

Orbis Ultra Slim Backlight Click-Dim 400mm Black 22W
4099854450808
Product benefits
- Very slim design
- Easy and quick installation
Areas of application
- Indoor applications
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Click-DIM version: dimmable in three steps by repeated switching
- Dimmable
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
110 °
Body material
Plastic
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Diameter
400.00 mm
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854450808
Height
27.00 mm
Inrush current time Th50
100 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
79 lm/W
Luminous flux
1740 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
41
Max. number of luminaires per miniature circuit breaker C16
53
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
98.000 mA
Nominal voltage
220…240 V
Nominal wattage
22.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1060.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Total harmonic distortion
< 40 %
Total luminous flux of contained light sources
2720 lm
Type of connection
Terminal, 2-pin
Type of dimming
3 DIM
Type of protection
IP20
UGR
< 25
With light source
Yes
