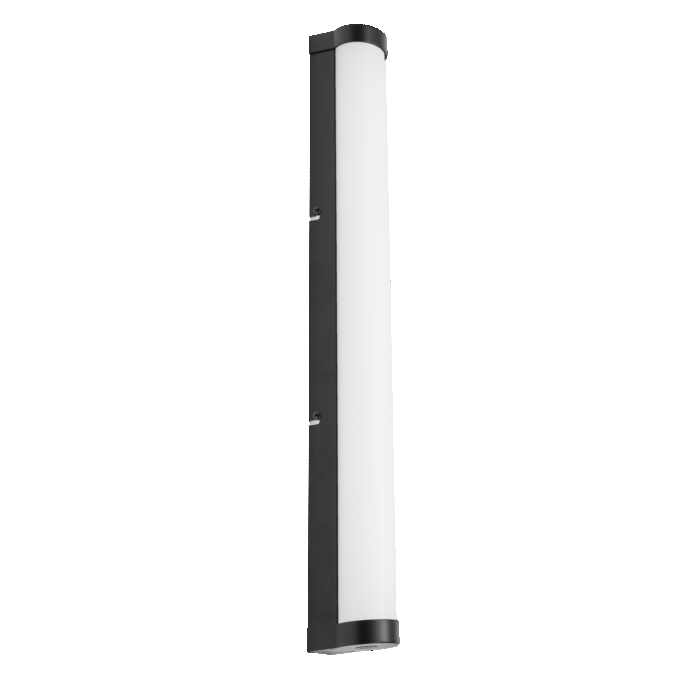

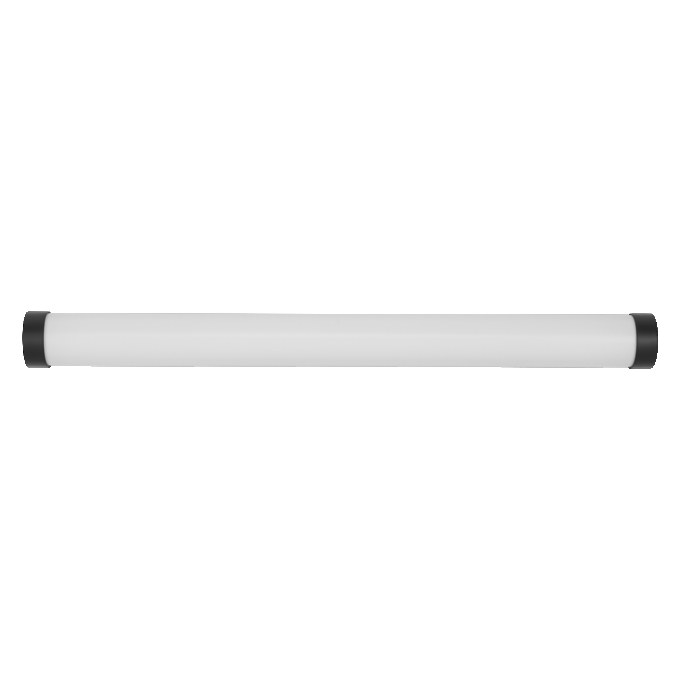

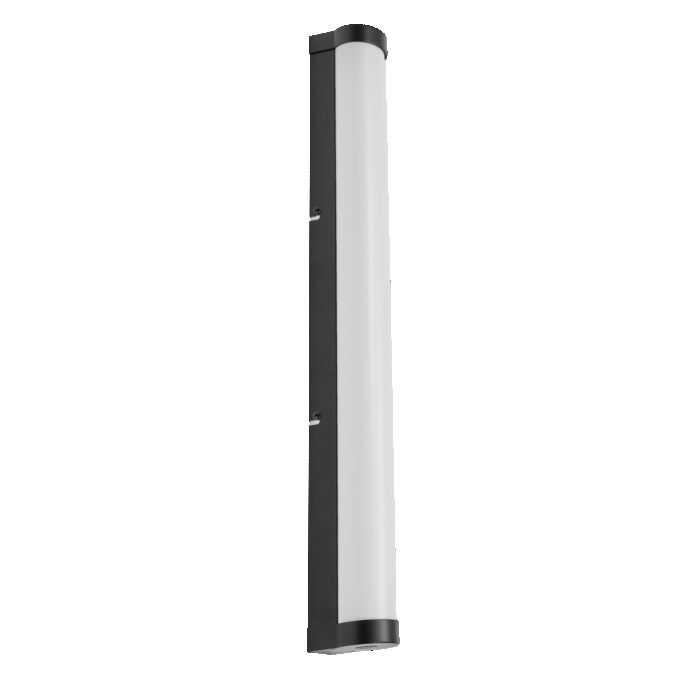

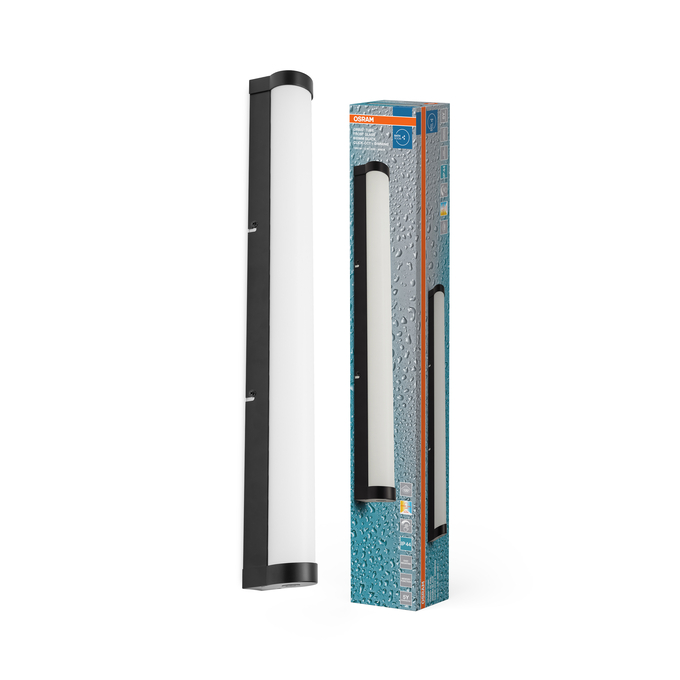

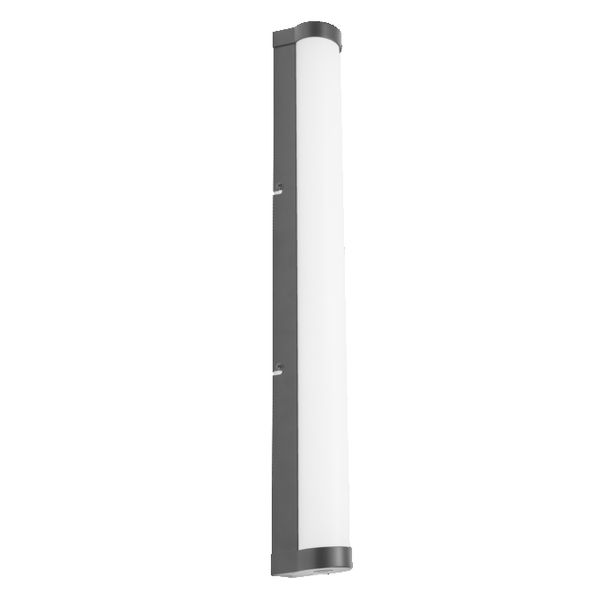

Orbis Tube Frost Glass 60CM Click CCT DIM IP44 Black
4099854450686
Product benefits
- Easy to install and use
- Highly versatile due to selectable CCT
- Long lifetime thanks to LED technology
Areas of application
- Indoor
- Bathrooms (IP44)
Product features
- Type of protection: IP44
- Lifetime up to 30,000 h
- Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
- Diffuser made of frosted glass
- Stepless dimming via a touch control
- Housing material: aluminum
- Polycarbonate (PC) diffuser
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
ABS/Polycarbonate (PC)/Aluminum
Color rendering index Ra
≥80
Color temperature
3000 … 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854450686
Height
54.00 mm
Housing color
Black
Inrush current time Th50
200 µs
Length
600.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
91 lm/W
Luminous flux
1100 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
61
Max. number of luminaires per miniature circuit breaker C10
51
Max. number of luminaires per miniature circuit breaker C16
82
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
94.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.00 W
Number of switching cycles
10000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
480.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 150 %
Total luminous flux of contained light sources
1350 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP44
Width
70.00 mm
With light source
Yes
