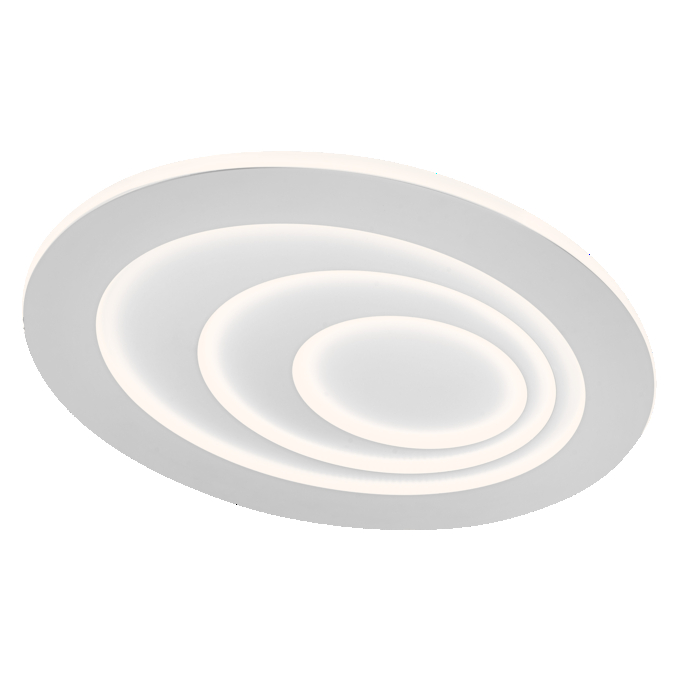

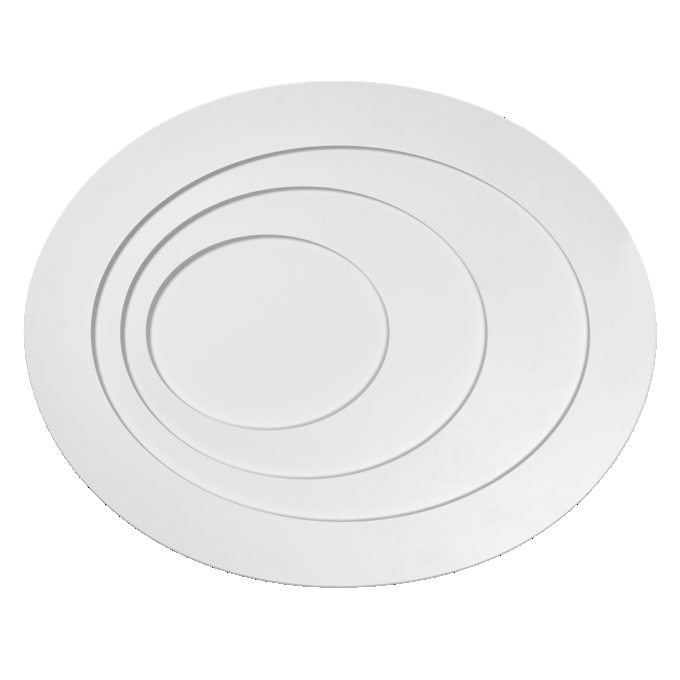

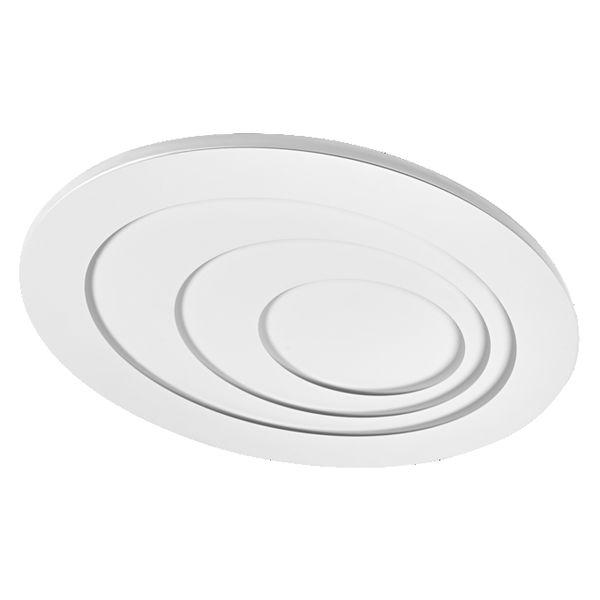

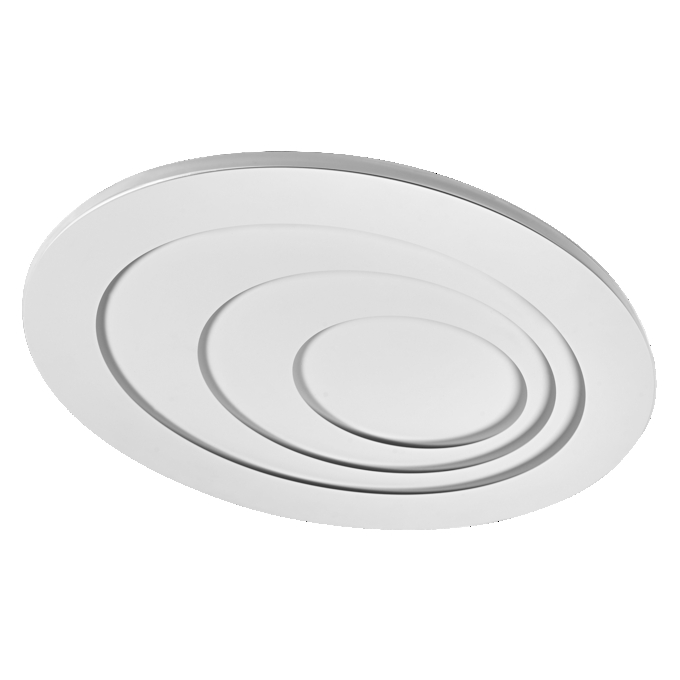

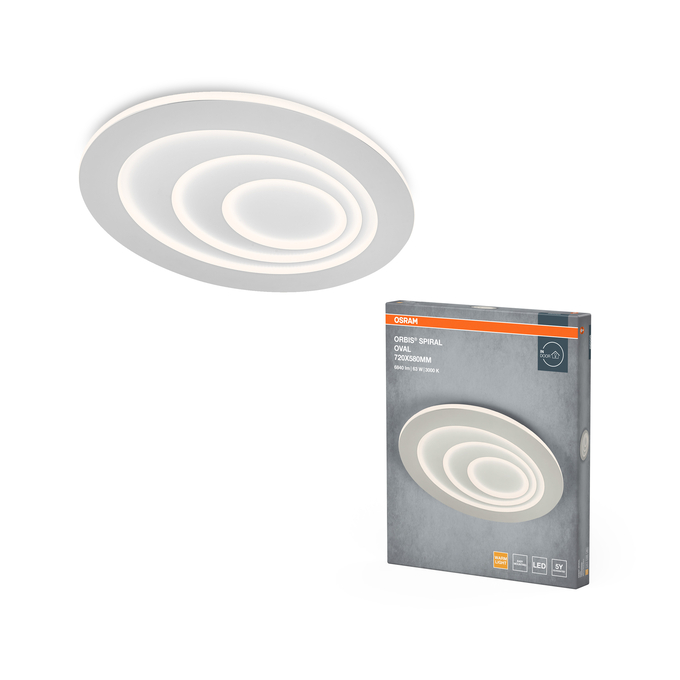

Orbis Spiral Oval 720mm 63W White
4099854450365
Product benefits
- Very homogenous light
- Elegant design
Areas of application
- Indoor applications
- Kitchens, living rooms, children's rooms or home offices
Product features
- Decorative domestic lighting
- Ceiling luminaire with advanced LED technology
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Body material
Steel
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Silicone
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854450365
Height
56.00 mm
Housing color
White
Length
720.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
60 lm/W
Luminous flux
3800 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
48
Max. number of luminaires per miniature circuit breaker C16
48
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
262.000 mA
Nominal voltage
220…240 V
Nominal wattage
63.00 W
Number of illuminants
empty
Number of switching cycles
15000
Operating mode
Electronic control gear (ECG)
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
6300.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
6840 lm
Type of connection
Screw terminal, 2-Pole (L,N)
Type of protection
IP20
Width
580.00 mm
With light source
Yes
