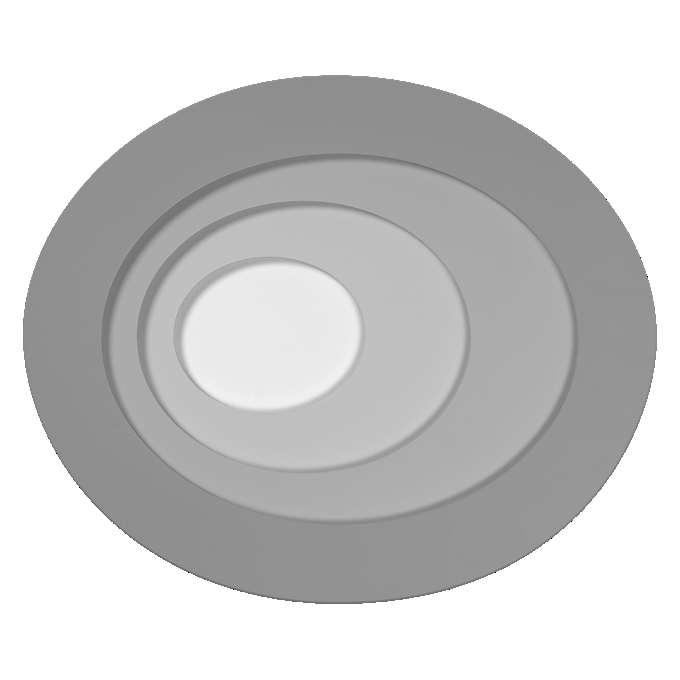

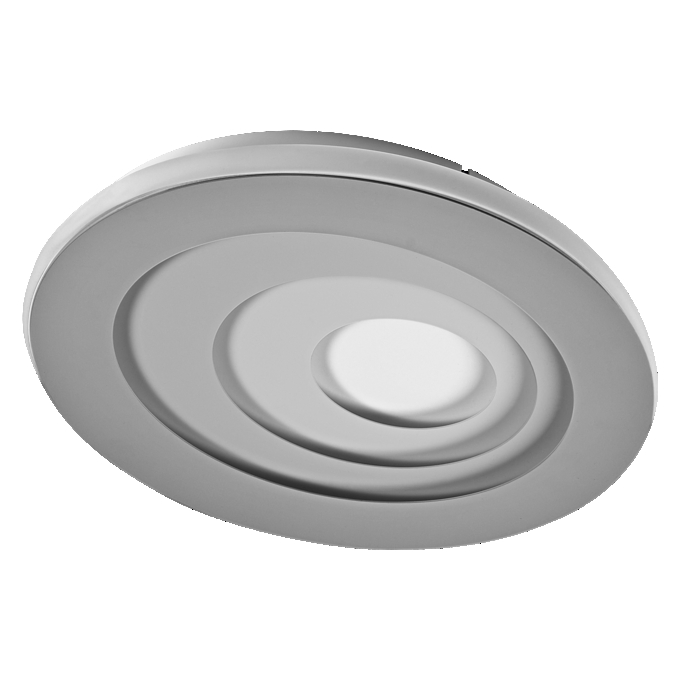

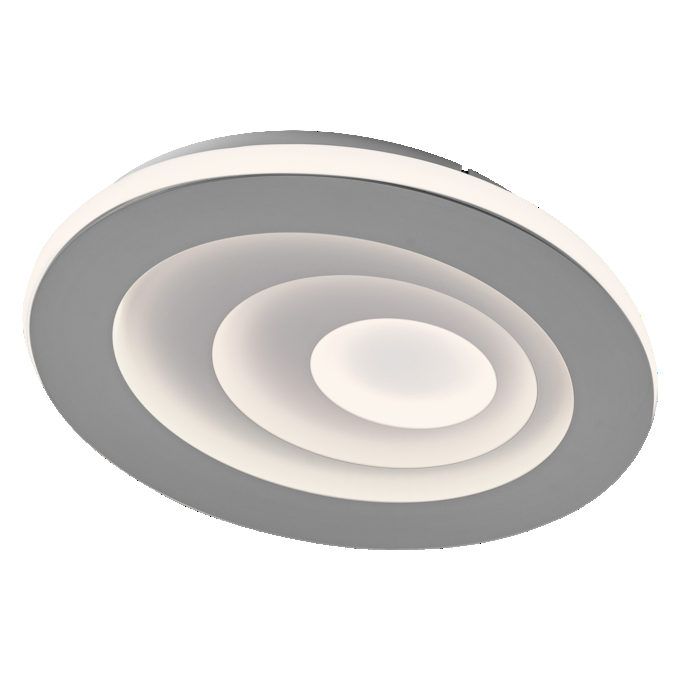

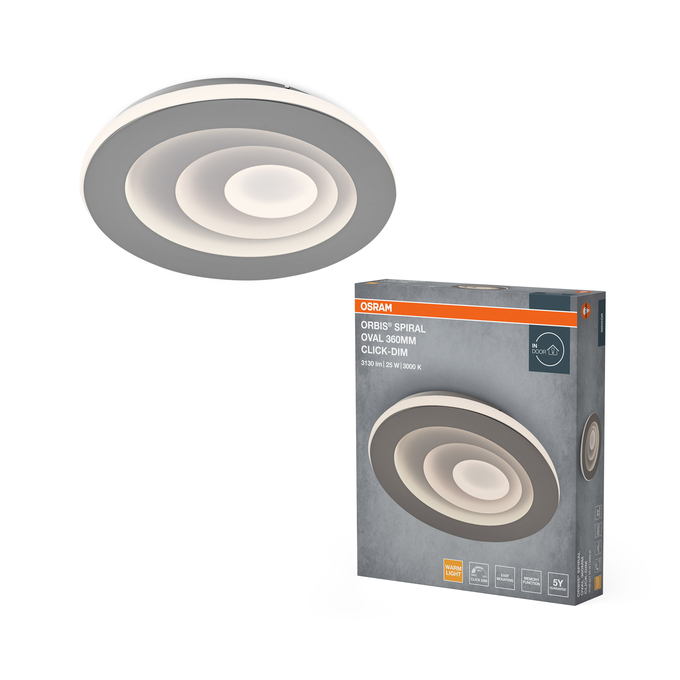

Orbis Spiral Oval 360mm 25W Click Dim 830 Grey
4099854613173
Product benefits
- Click dim function by wall switch
- Stylish and modern design
- Long lifetime thanks to LED technology
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Ceiling luminaire with advanced LED technology
- Click-DIM version: dimmable in three steps by repeated switching
- Color temperature: 3,000 K (Warm White)
- Lifetime up to 25,000 h
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Body material
Metal
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Silicone
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854613173
Height
56.00 mm
Housing color
Gray
Inrush current
2.4 A
Inrush current time Th50
191.7 µs
Length
300.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
40 lm/W
Luminous flux
1000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
112
Max. number of luminaires per miniature circuit breaker C16
112
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
114.000 mA
Nominal voltage
220…240 V
Nominal wattage
25.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.9
Product color
Gray
Product recyclability
Mostly recyclable product 1)
Product weight
1557.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
3132
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
3 DIM
Type of emergency operation test
None
Type of protection
IP20
Width
360.00 mm
With light source
Yes
