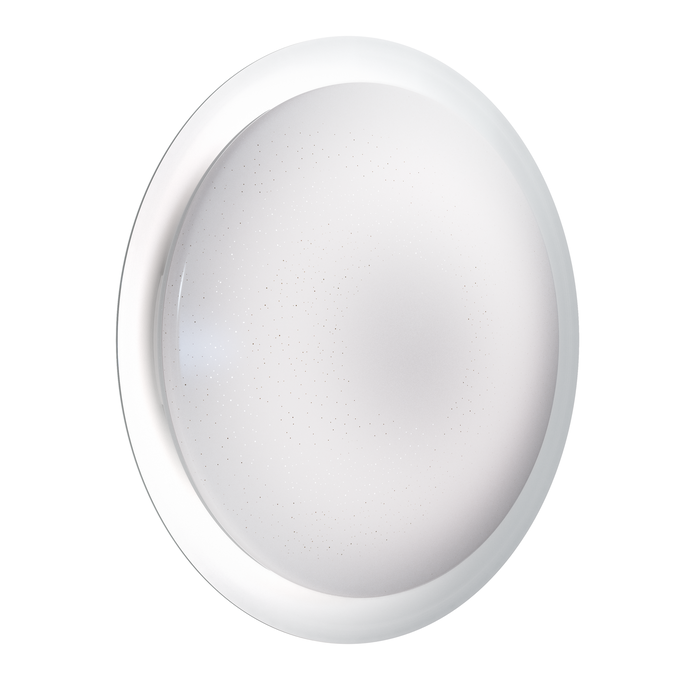

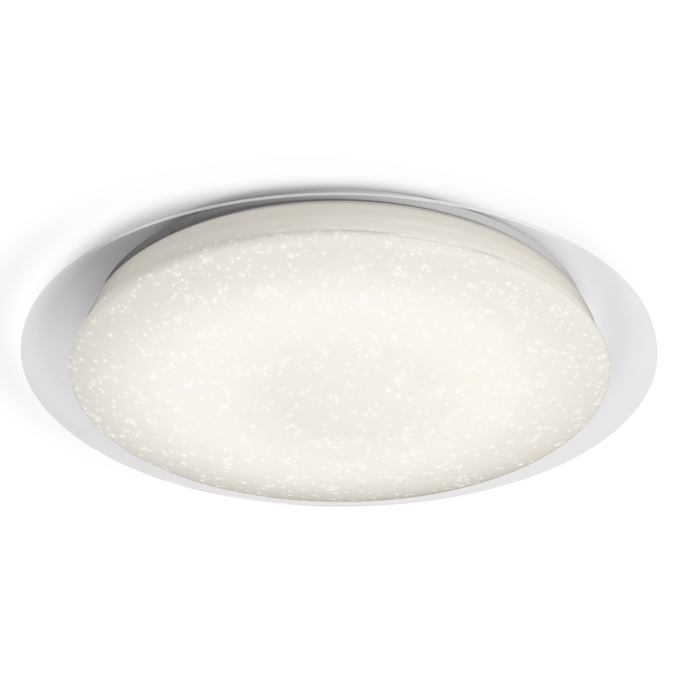

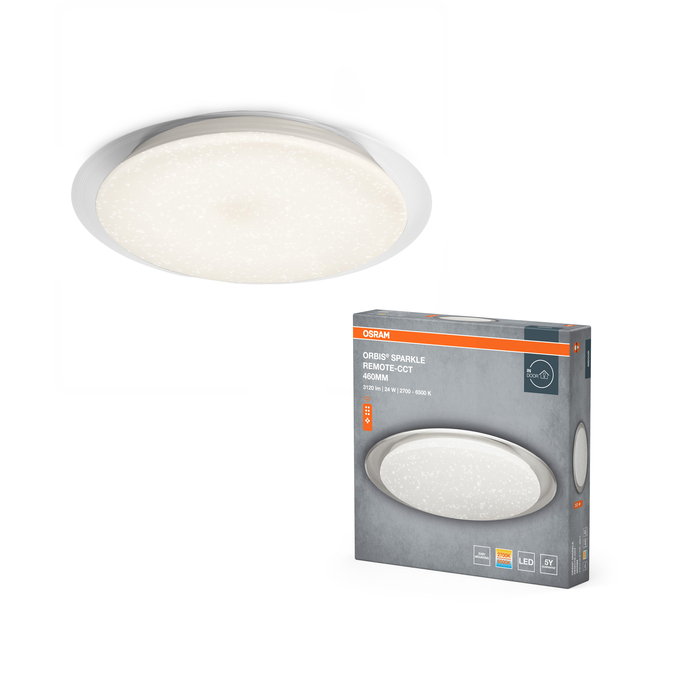

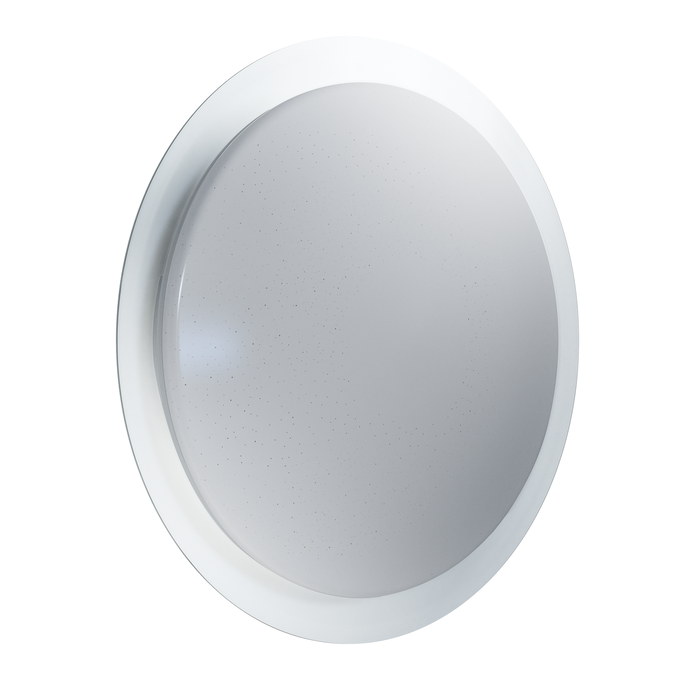

Orbis Sparkle Remote-CCT 460mm 24W
4099854450228
Product benefits
- Very homogenous light
- Easy and quick installation
Areas of application
- For indoor use only
- Decorative domestic lighting
- Ceiling and wall surface mounting
Product features
- Ceiling luminaire with advanced LED technology
- Circular light emission
Equipment / Accessories
- Complete mounting and connecting accessories included
- Batteries required for remote control: 2xAAA (not included)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Battery size [GMS]
AAA
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
2800…6000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
500.00 mm
Dimmable
Yes
GTIN
4099854450228
Height
91.00 mm
Housing color
White
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Tunable White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
93 lm/W
Luminous flux
2000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
44
Max. number of luminaires per miniature circuit breaker C10
35
Max. number of luminaires per miniature circuit breaker C16
57
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
180 mA
Nominal voltage
220…240 V
Nominal voltage of battery
1.5 V
Nominal wattage
28.00 W
Number of switching cycles
15000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
800.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Temperature range at storage
-20…+70 °C
Total luminous flux of contained light sources
3120 lm
Type of Battery
Alkaline
Type of connection
Terminal, 3-pin
Type of protection
IP20
With light source
Yes
