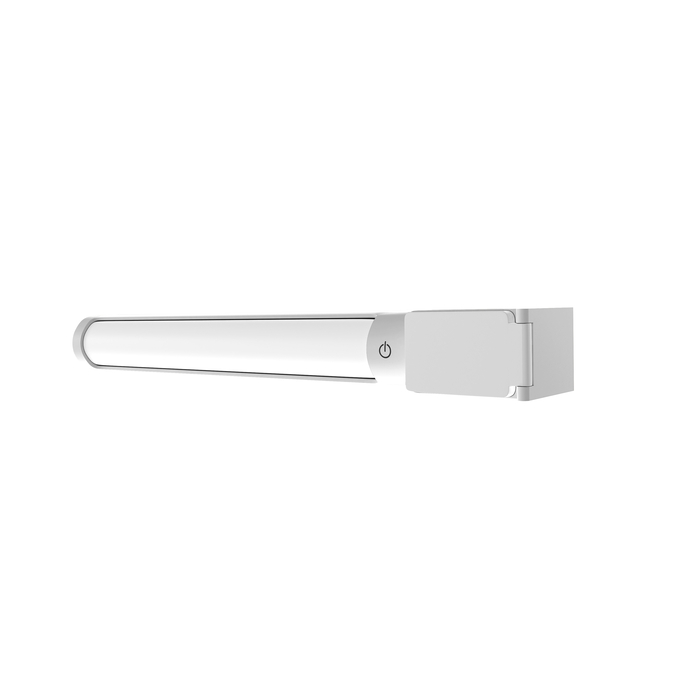

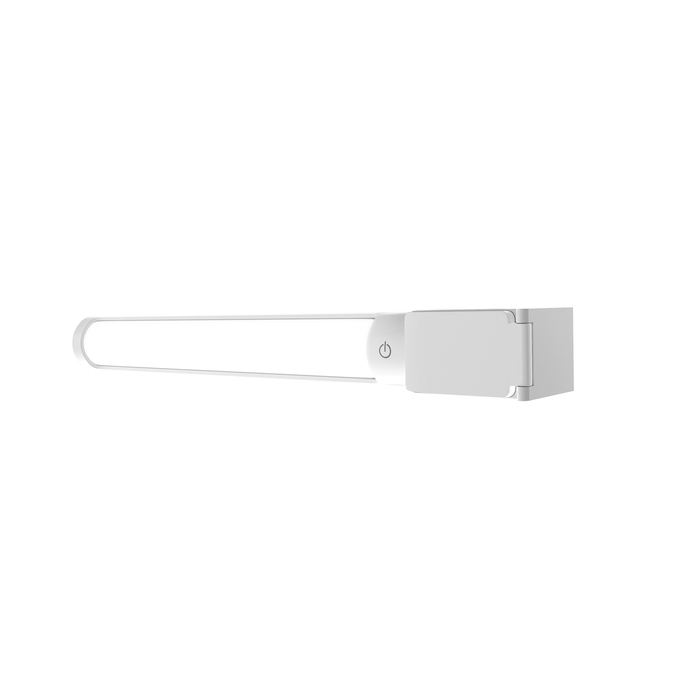

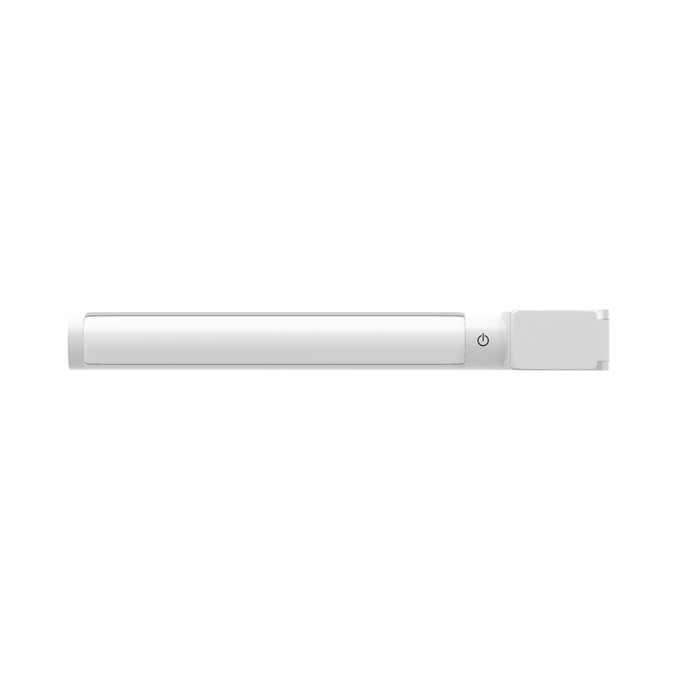

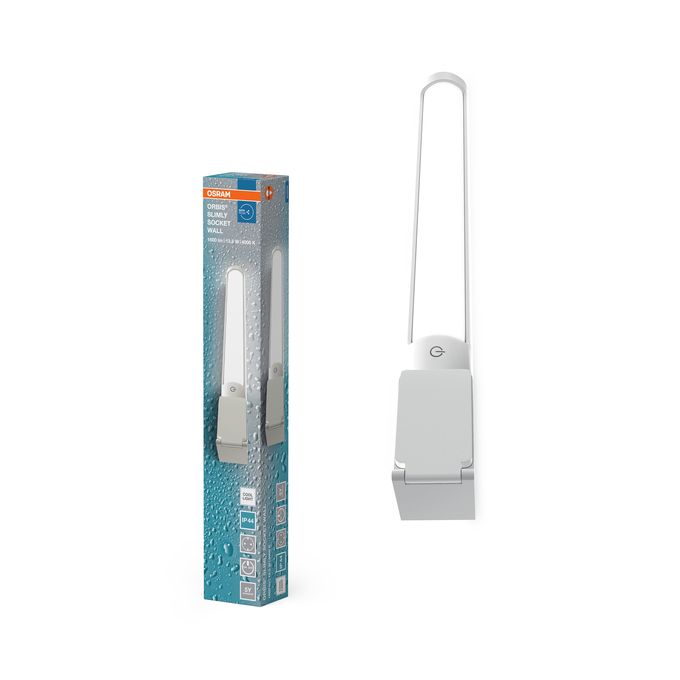

Orbis Slimly Socket Wall 13.5 W 840 IP44
4058075861312
Product benefits
- Long lifetime thanks to LED technology
- Integrated Schuko socket for electrical appliances such as hairdryers, razors or hair straighteners
- Easy to install and use
Areas of application
- Indoor
- Wall and on top of mirror
Product features
- High-power LED
- Integrated Type F (Schuko) socket
- Housing material: plastic
- Type of protection: IP44
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075861312
Height
60.00 mm
Housing color
White
Inrush current
21.2 A
Inrush current time Th50
168 µs
Length
500.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
66 lm/W
Luminous flux
900 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
19
Max. number of luminaires per miniature circuit breaker C10
16
Max. number of luminaires per miniature circuit breaker C16
26
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
110.000 mA
Nominal voltage
220…240 V
Nominal wattage
13.50 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
490.00 g
Protection class
I
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
110 %
Total luminous flux of contained light sources
1600 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP44
Width
73.00 mm
With light source
Yes
