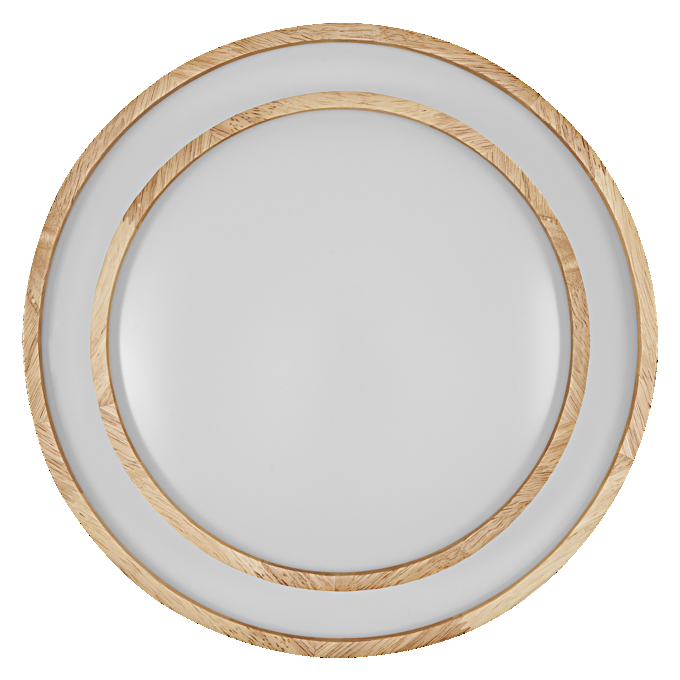

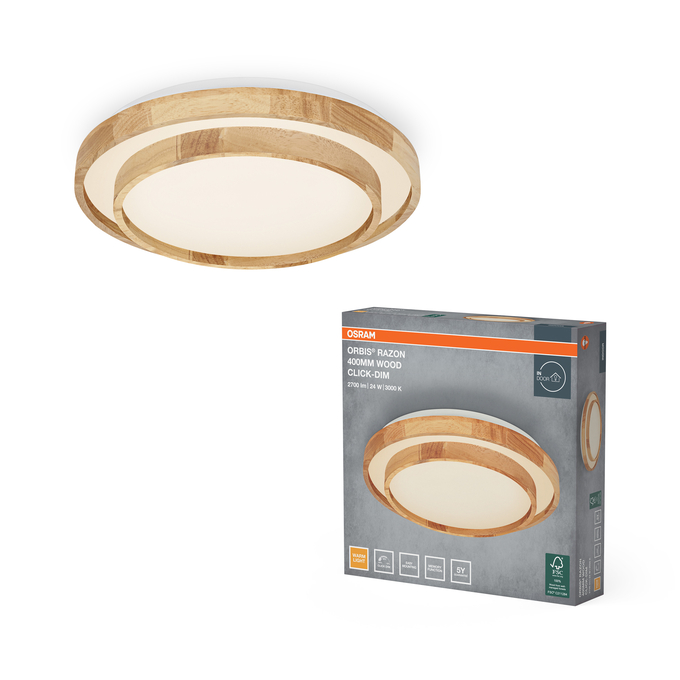

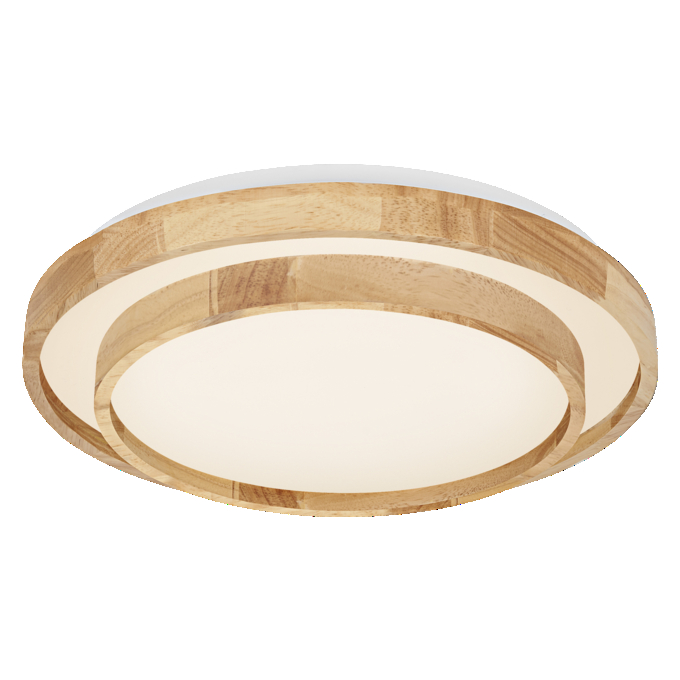

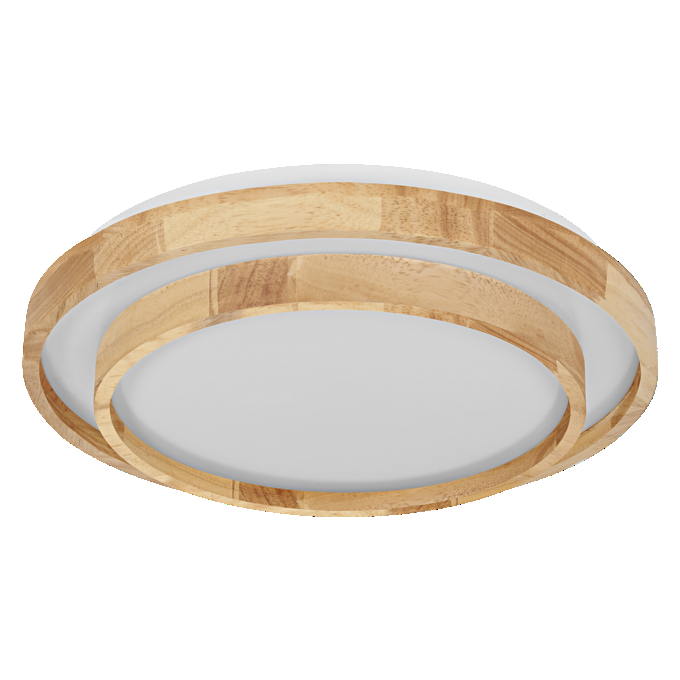

Orbis Razon Wood 400mm 24W 830 Click DIM
4058075863408
Product benefits
- Click-DIM: dimmable in three steps by repeated switching
- Very homogenous light distribution
- Frame made of real wood (FSC)
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Ceiling luminaire with advanced LED technology
- Housing material: wood
- Dimmable in three steps by repeated switching
- Color temperature: 3,000 K
- Memory function of the light setting
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Metal|wood
Color rendering index Ra
80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Diameter
400.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075863408
Height
85.00 mm
Housing color
Wood decor
Inrush current
0.185 A
Inrush current time Th50
5.79 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
60 lm/W
Luminous flux
1450 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
69
Max. number of luminaires per miniature circuit breaker C10
43
Max. number of luminaires per miniature circuit breaker C16
69
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
180.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Wood decor
Product recyclability
Mostly recyclable product 1)
Product weight
1130.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Total luminous flux of contained light sources
2700 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
With light source
Yes
