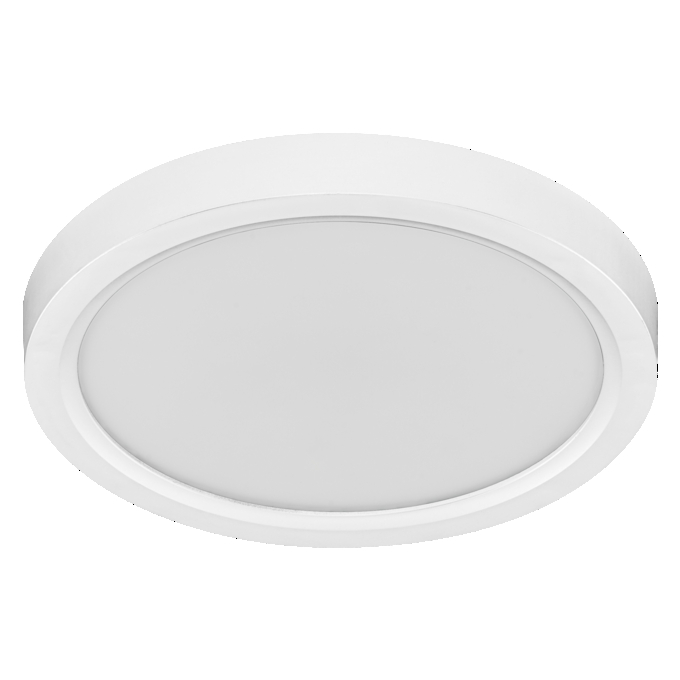

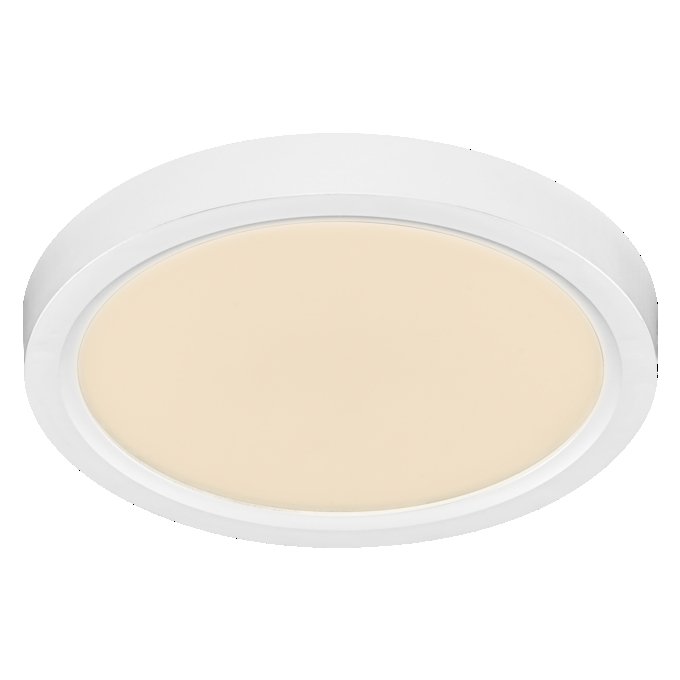

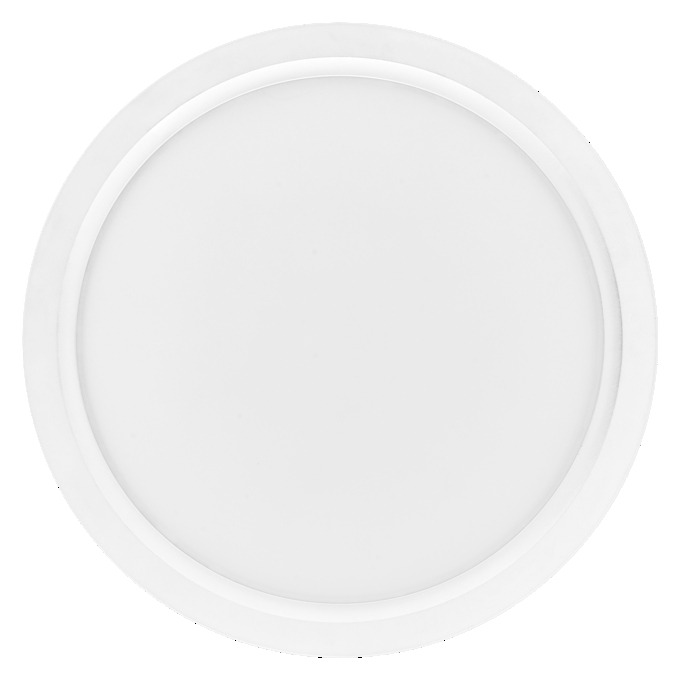

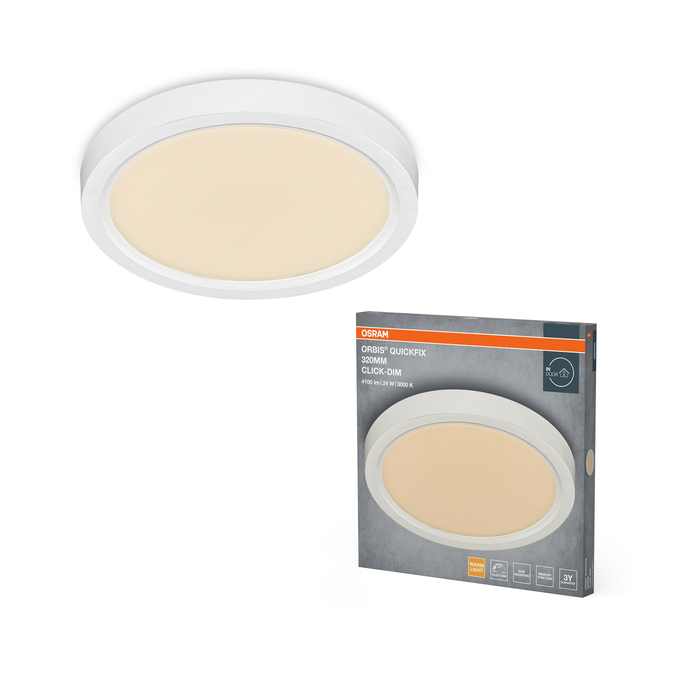

Orbis Quickfix 320mm 24W Click Dim 830 White
4099854604447
Product benefits
- Click dim function by wall switch
- Through-wiring possible with included connector box
- Easy mounting
- Excellent price/performance ratio
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Easy operation and installation
- Click-DIM version: dimmable in three steps by repeated switching
- Through wiring possible
- Housing material: plastic and metal
- Color temperature: 3,000 K
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
115 °
Body material
Metal|Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Diameter
320.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854604447
Height
24.00 mm
Housing color
White
Inrush current
0.125 A
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
104 lm/W
Luminous flux
2500 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
68
Max. number of luminaires per miniature circuit breaker C10
57
Max. number of luminaires per miniature circuit breaker C16
92
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
180.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.50
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
810.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
64 %
Total luminous flux of contained light sources
4100 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
3 DIM
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
