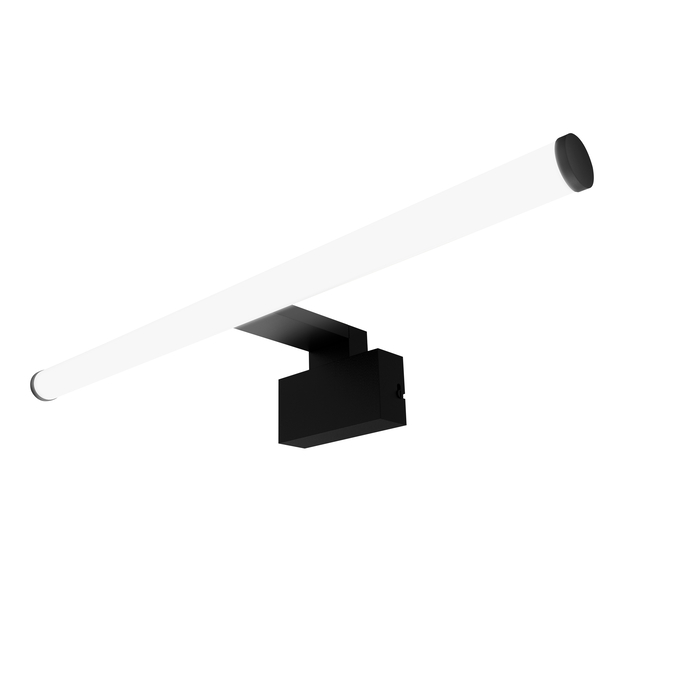

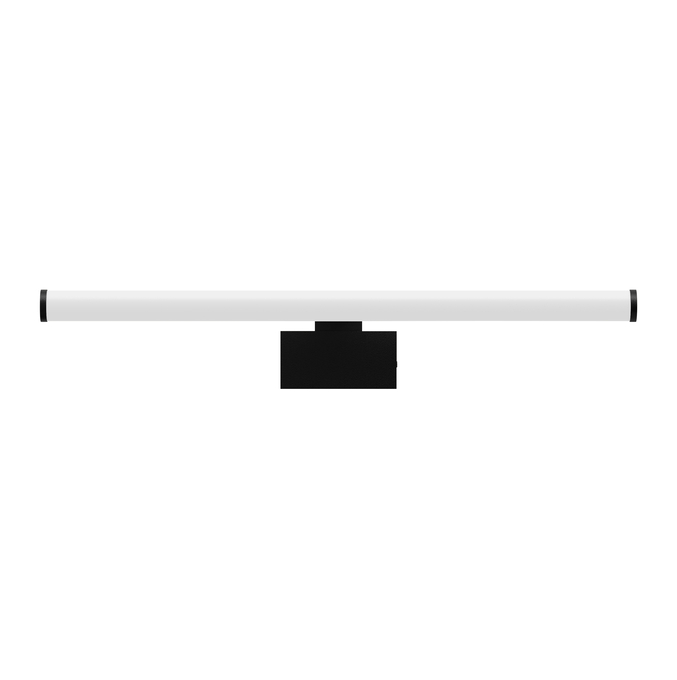

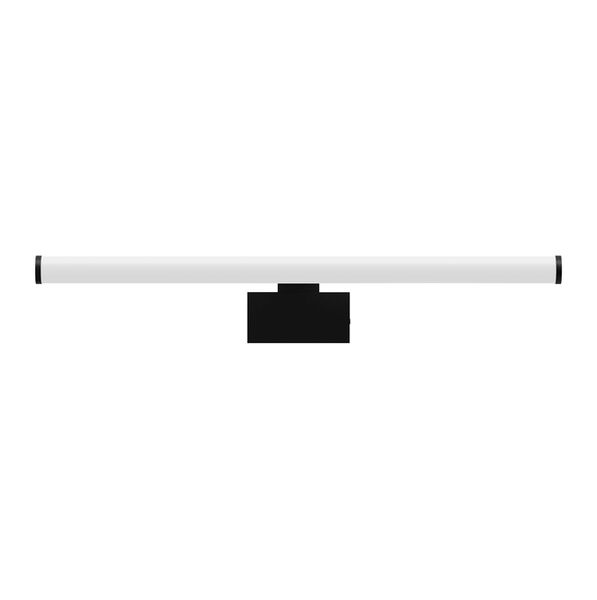

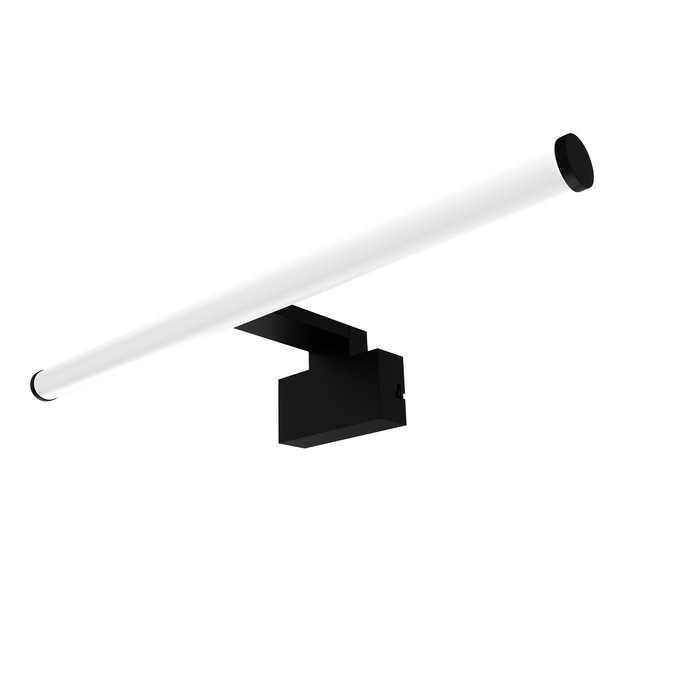

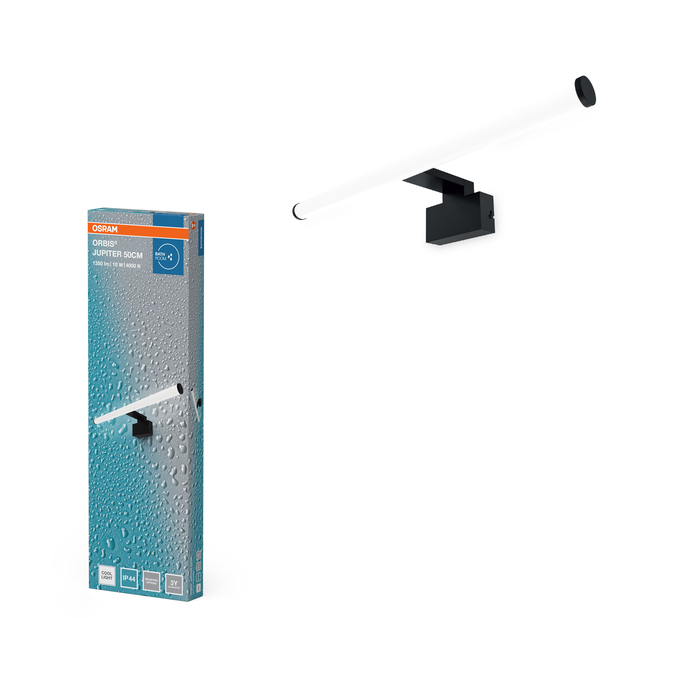

Orbis Jupiter 50 cm 10 W 840 IP44 Black
4058075861374
Product benefits
- Long lifetime thanks to LED technology
- Easy to install and use
Areas of application
- Indoor
- Top of mirror
Product features
- High-power LED
- Housing material: plastic
- Type of protection: IP44
Equipment / Accessories
- Mounting screws and dowels included
- 3 types of fixation included (wall, clip and top of mirror)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075861374
Height
42.00 mm
Housing color
Black
Inrush current
7.36 A
Inrush current time Th50
200 µs
Length
500.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
105 lm/W
Luminous flux
1050 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
51
Max. number of luminaires per miniature circuit breaker C10
43
Max. number of luminaires per miniature circuit breaker C16
70
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
78.000 mA
Nominal voltage
220…240 V
Nominal wattage
10.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
350.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
170 %
Total luminous flux of contained light sources
1350 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP44
Width
128.00 mm
With light source
Yes
