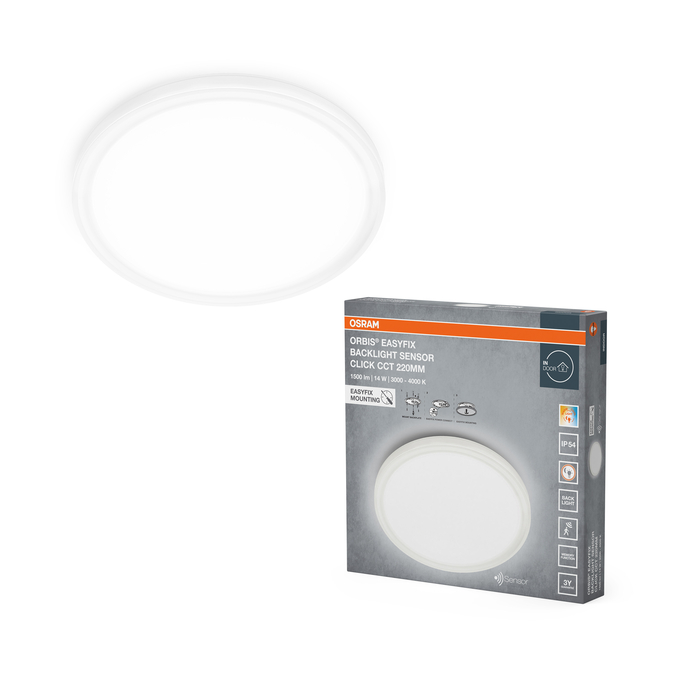

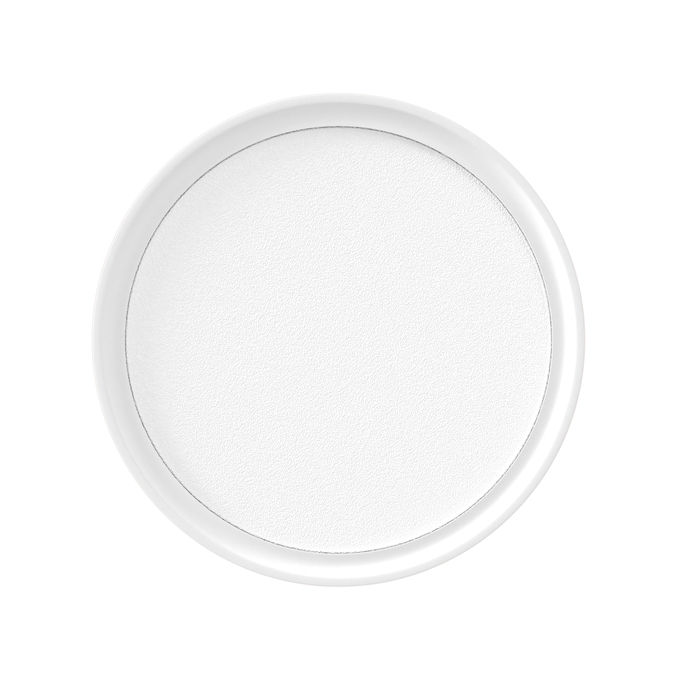

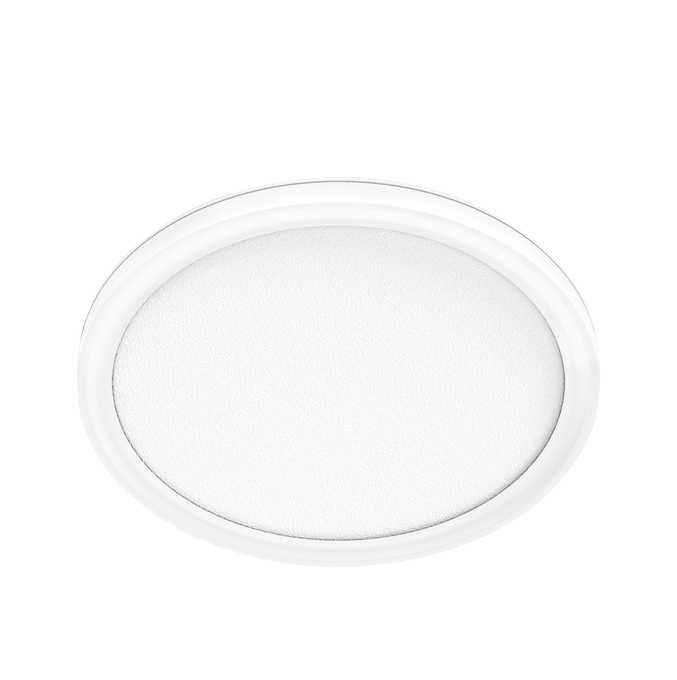

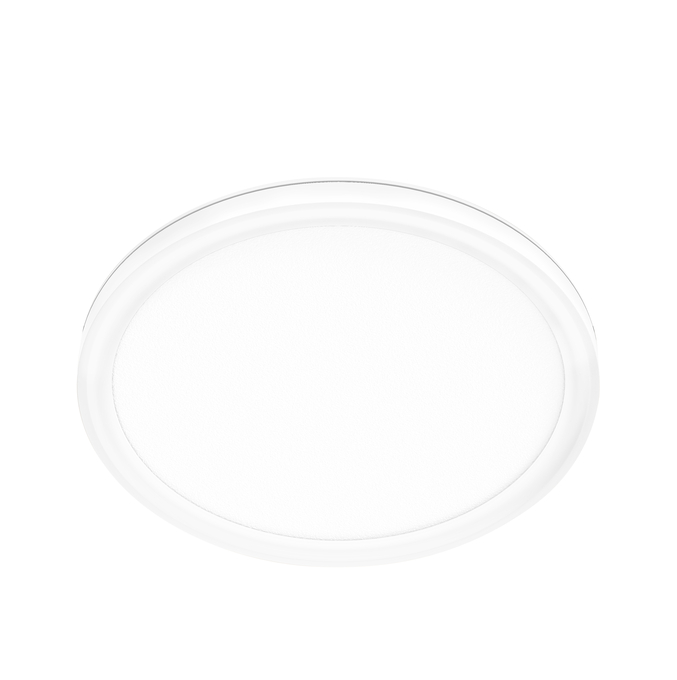

Orbis Easyfix Sensor 220 mm 14 W CCT IP54 White
4099854845468
Product benefits
- Easy mounting
- Very homogenous light with a slight backlight effect
- Type of protection: IP54 (room side) provides additional protection against humidity
- Demand based lighting and energy saving thanks to motion and daylight sensor (if applicable)
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
- Bathrooms
- Workshops, garages, covered outdoor storage areas
Product features
- Easy mounting by single person
- Nightlight via integrated daylight/motion microwave sensor
- Type of protection: IP54
- Color temperature: 3,000 K, 4,000 K
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polyprophylene (PP)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Detection range of motion sensor
0…3 m
Detection threshold of daylight sensor
0…25 lx
Diameter
220.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854845468
Height
31.00 mm
Housing color
White
Inrush current
7.60 A
Inrush current time Th50
128 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
71 lm/W
Luminous flux
1000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
80
Max. number of luminaires per miniature circuit breaker C10
63
Max. number of luminaires per miniature circuit breaker C16
101
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Surface
Mounting type
Surface
Nominal current
100.000 mA
Nominal voltage
220…240 V
Nominal wattage
14.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
380.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor controlled switching time
30 s
Sensor detection angle
120 °
Sensor technology
Microwave
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
180 %
Total luminous flux of contained light sources
1500 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP54
Type of sensor
Lig
With light source
Yes
