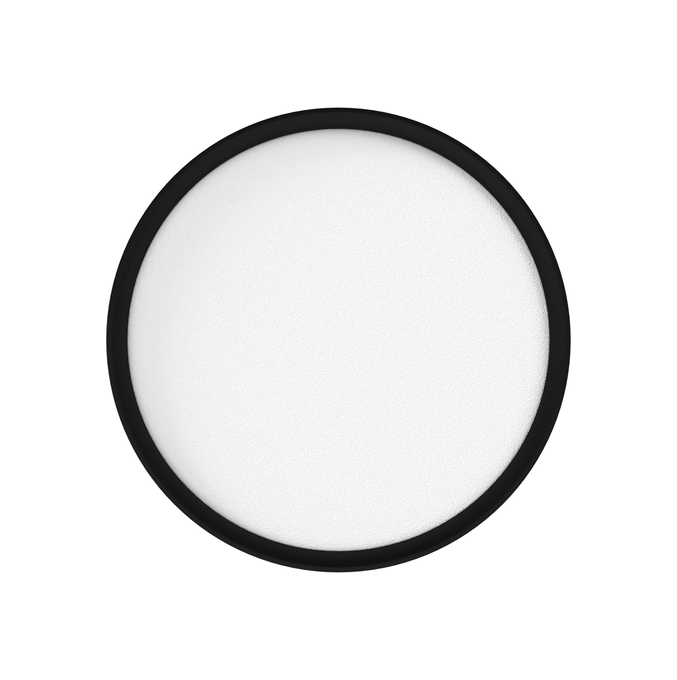

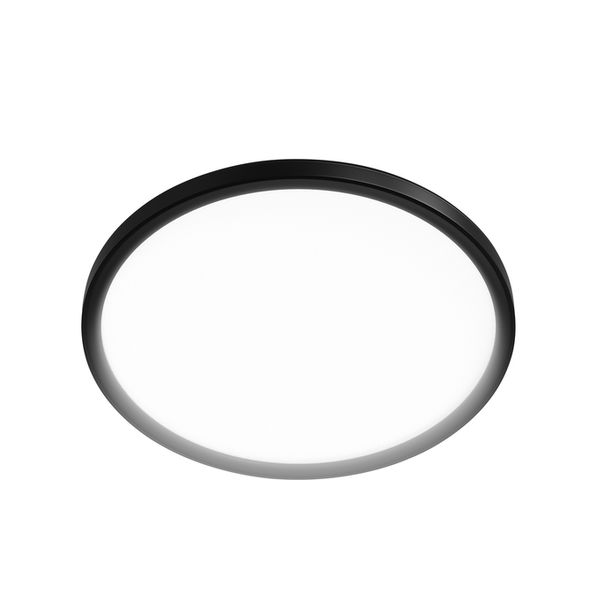

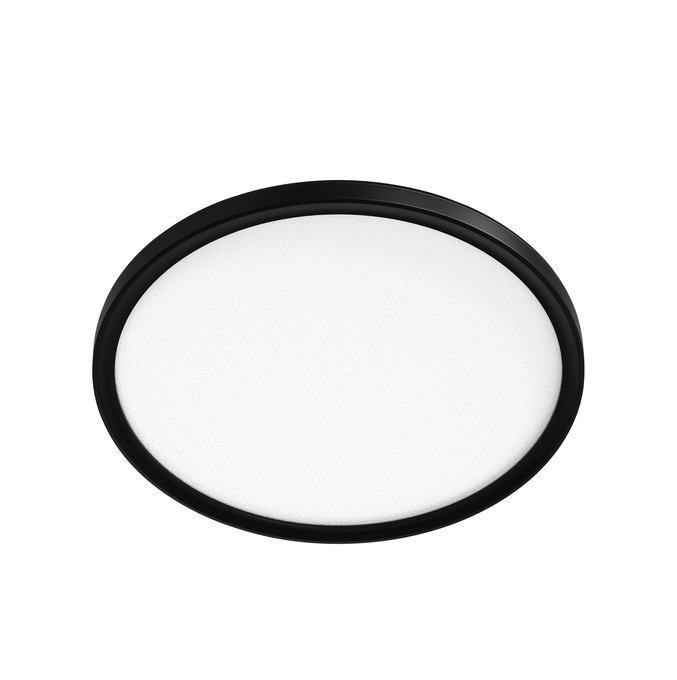

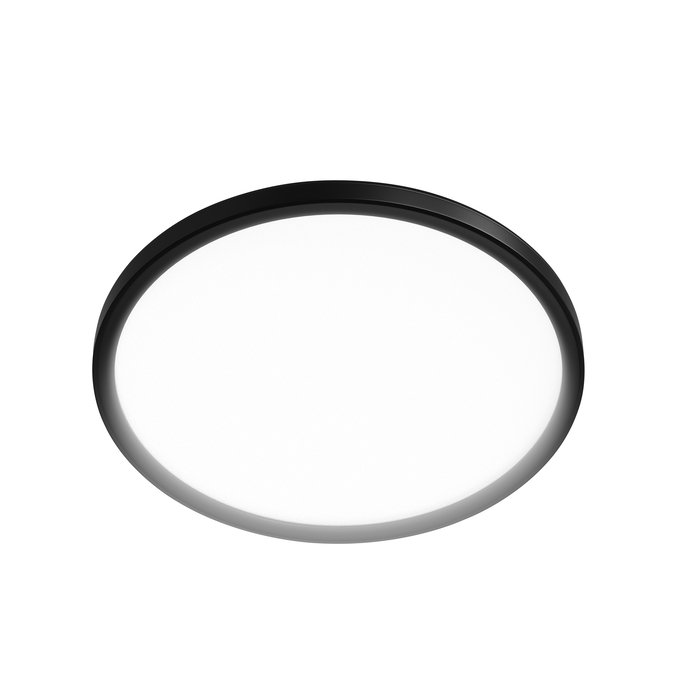

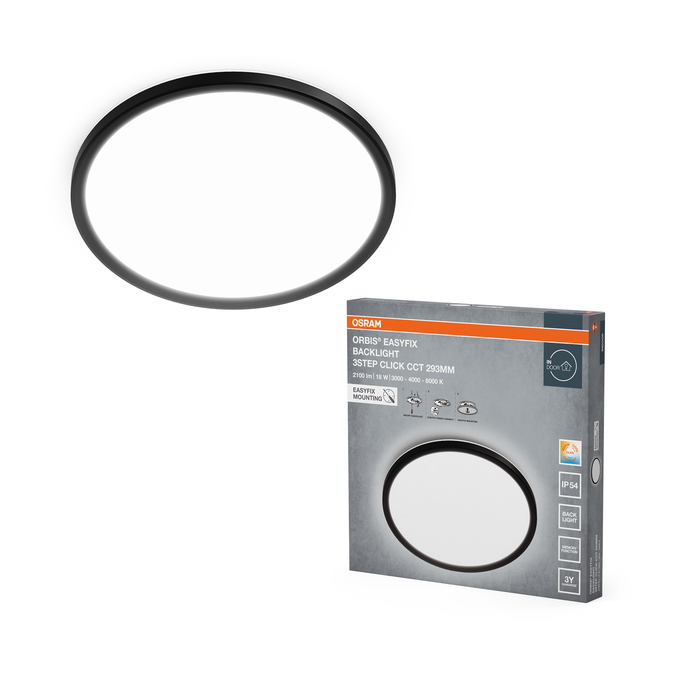

Orbis Easyfix 293 mm 18 W CCT IP54 Black
4099854844812
Product benefits
- Light color change via wall switch
- Easy mounting
- Flexible mounting options
- Very homogenous light with a slight backlight effect
- Type of protection: IP54 (room side) provides additional protection against humidity
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
- Bathrooms
- Workshops, garages, covered outdoor storage areas
Product features
- Easy mounting by single person
- Click-CCT version: color temperature adjustable in three steps by repeated switching
- Type of protection: IP54
- Memory function of the light setting
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polyprophylene (PP)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Diameter
293.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854844812
Height
31.00 mm
Housing color
Black
Inrush current
7.60 A
Inrush current time Th50
128 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
75 lm/W
Luminous flux
1350 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
80
Max. number of luminaires per miniature circuit breaker C10
59
Max. number of luminaires per miniature circuit breaker C16
94
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Surface
Mounting type
Surface
Nominal current
135.000 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
580.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
180 %
Total luminous flux of contained light sources
2100 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP54
With light source
Yes
