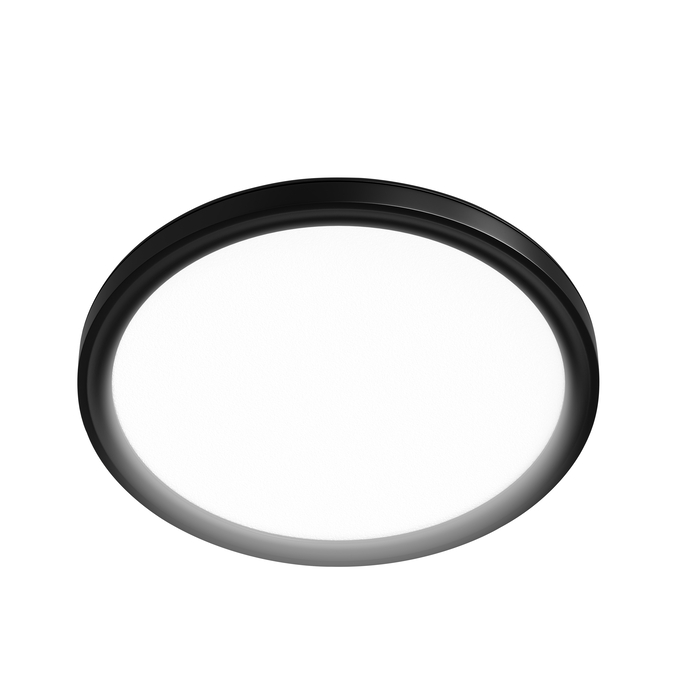

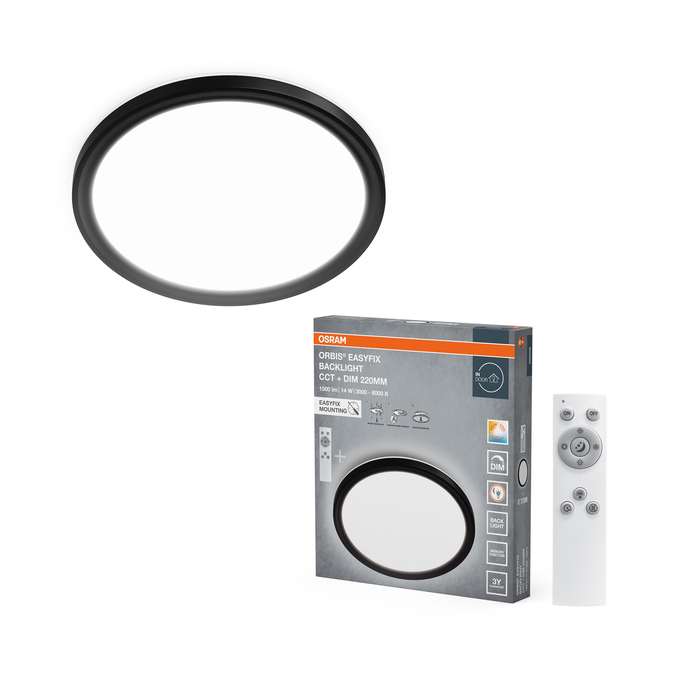

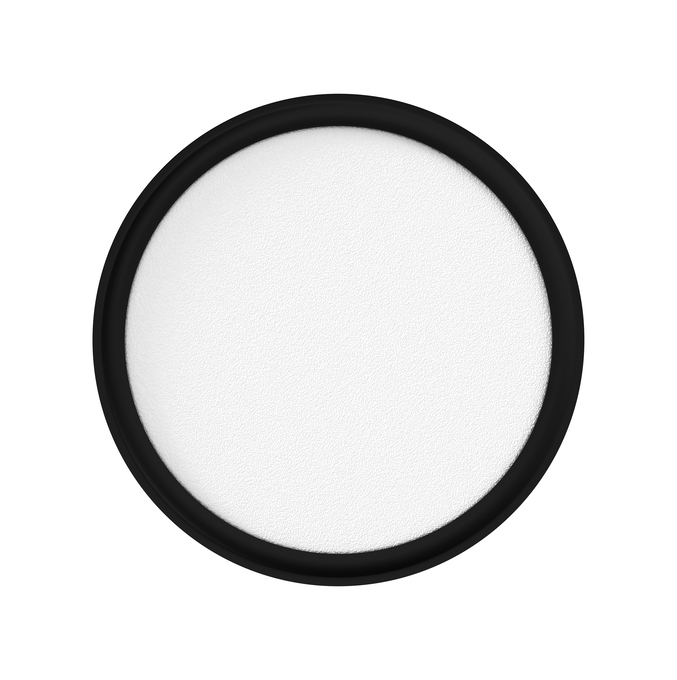

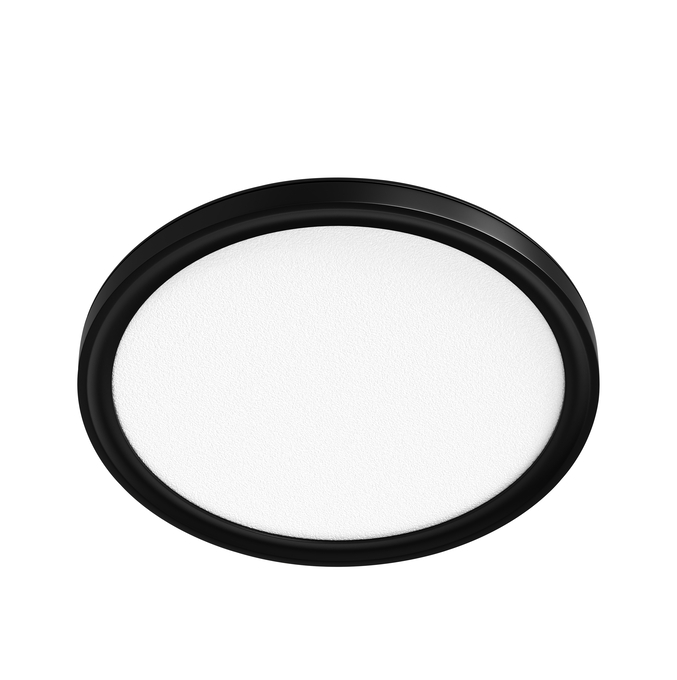

Orbis Easyfix 220 mm 14 W CCT DIM Black Remote Control
4099854844911
Product benefits
- Light color change via wall switch
- Comfortable and intuitive remote control
- Easy mounting
- Very homogenous light with a slight backlight effect
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Easy mounting by single person
- Color temperature adjustment, dimming and night functions via remote control
- Type of protection: IP20
- Memory function of the light setting
Equipment / Accessories
- Mounting screws and dowels included
- Remote control included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Battery size [GMS]
AAA
Beam angle
120 °
Body material
Polyprophylene (PP)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Diameter
220.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854844911
Height
31.00 mm
Housing color
Black
Inrush current
8.6 A
Inrush current time Th50
220 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
67 lm/W
Luminous flux
950 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
39
Max. number of luminaires per miniature circuit breaker C10
34
Max. number of luminaires per miniature circuit breaker C16
55
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Surface
Mounting type
Surface
Nominal current
100.000 mA
Nominal voltage
220…240 V
Nominal wattage
14.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
≥0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
434.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
180 %
Total luminous flux of contained light sources
1500 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP20
With light source
Yes
