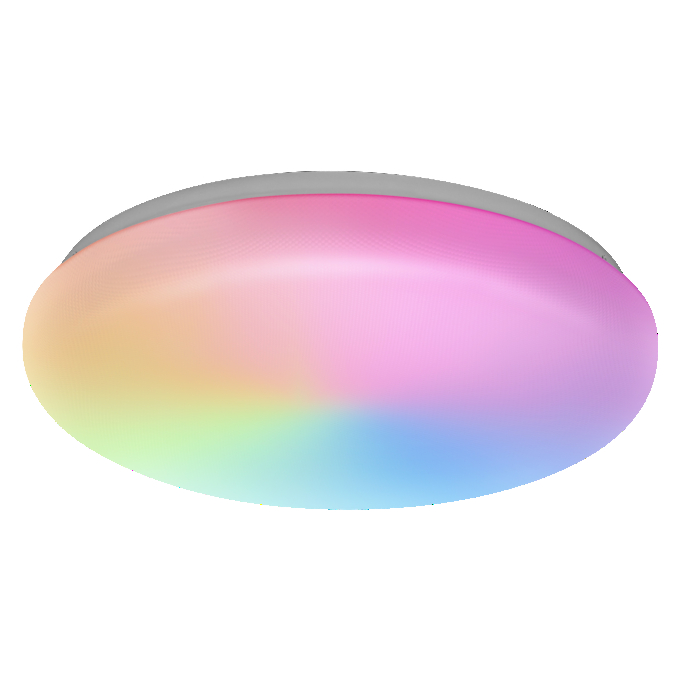

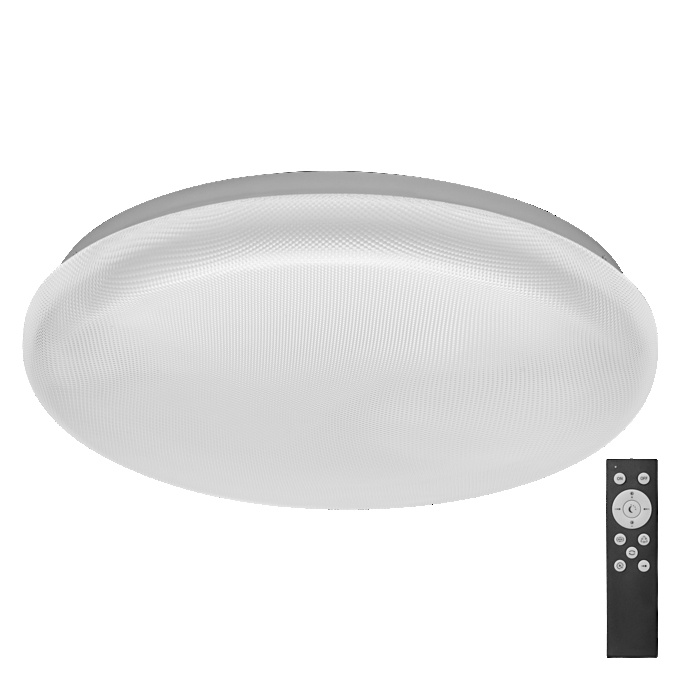

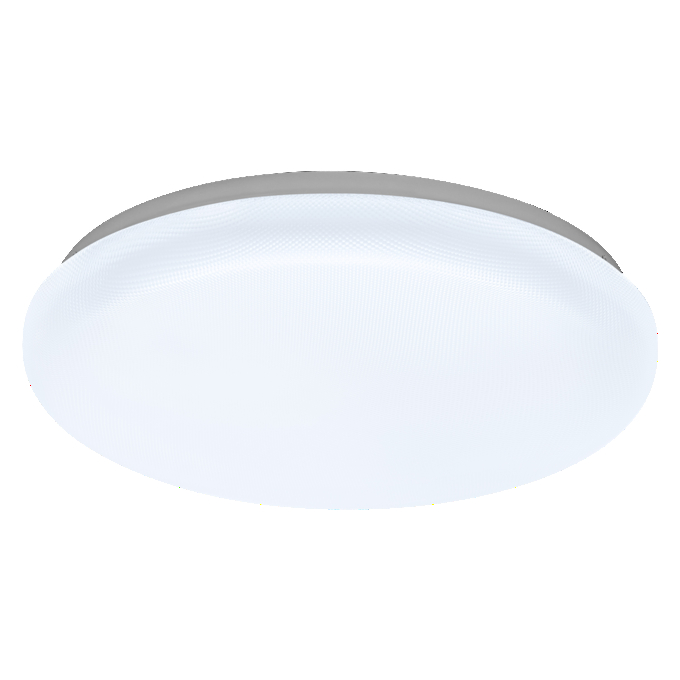

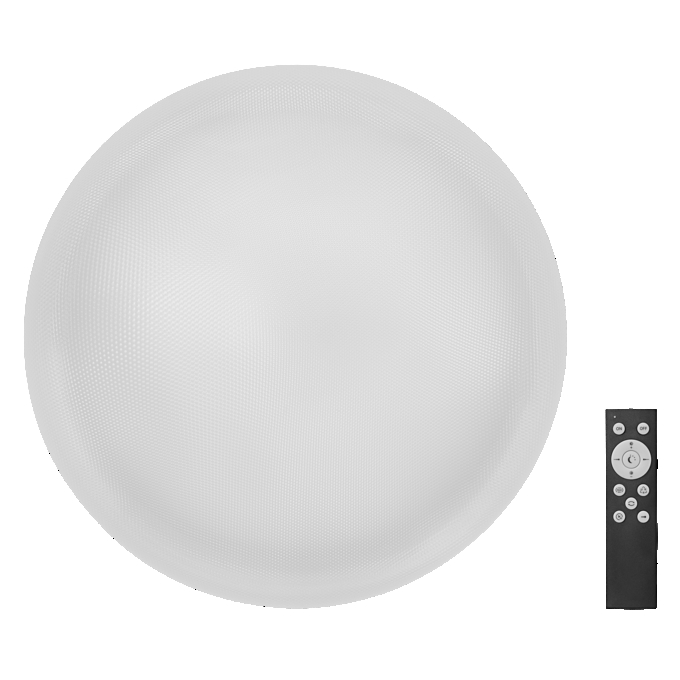

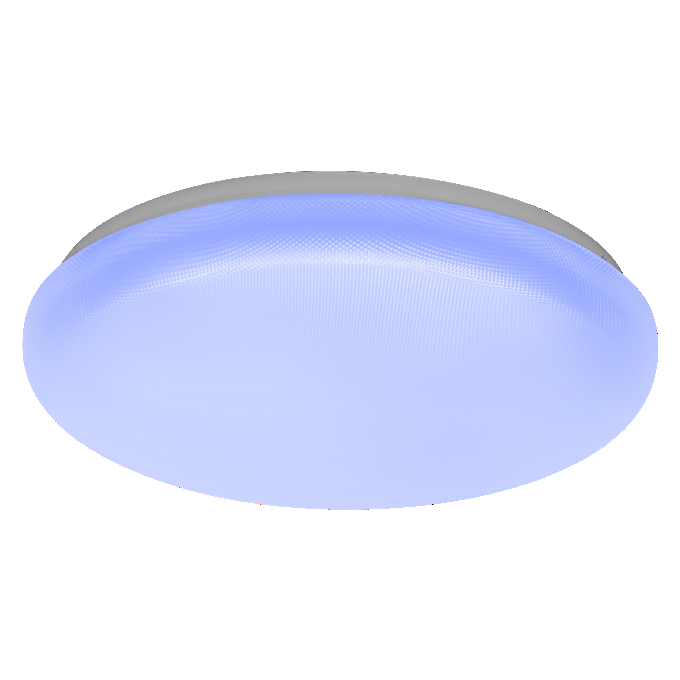

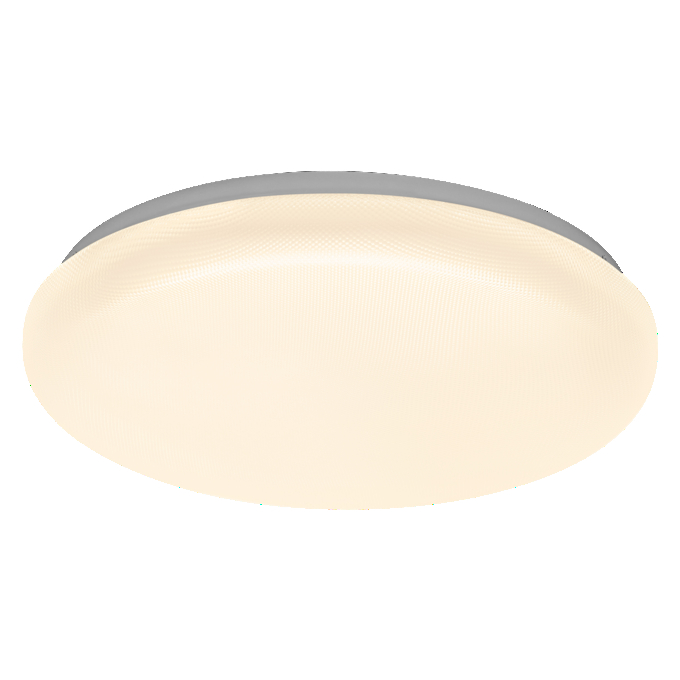

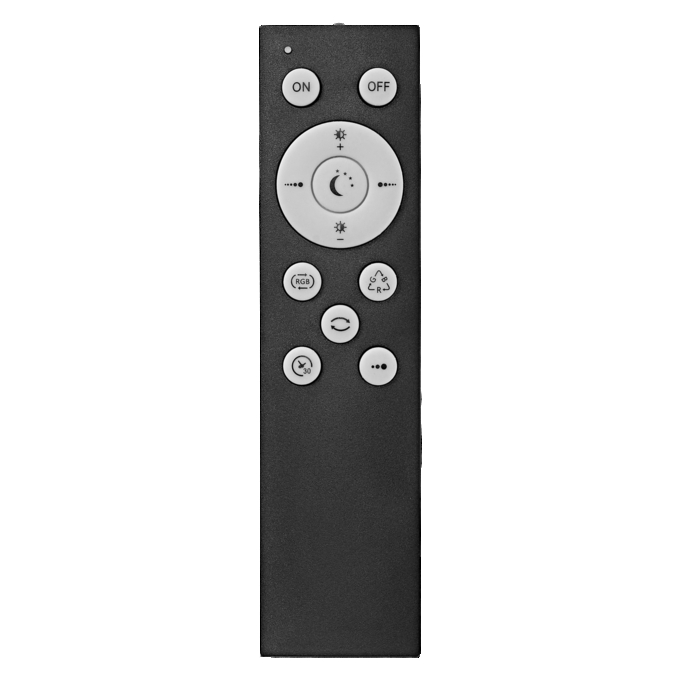

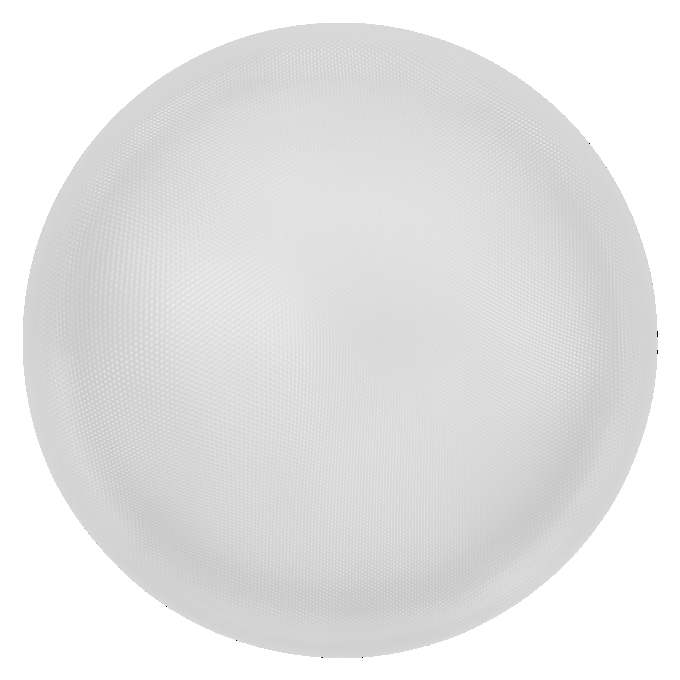

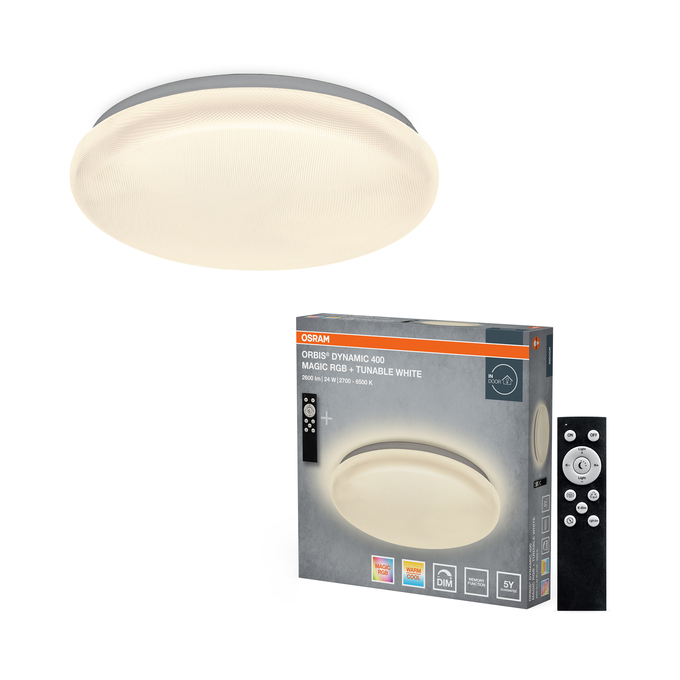

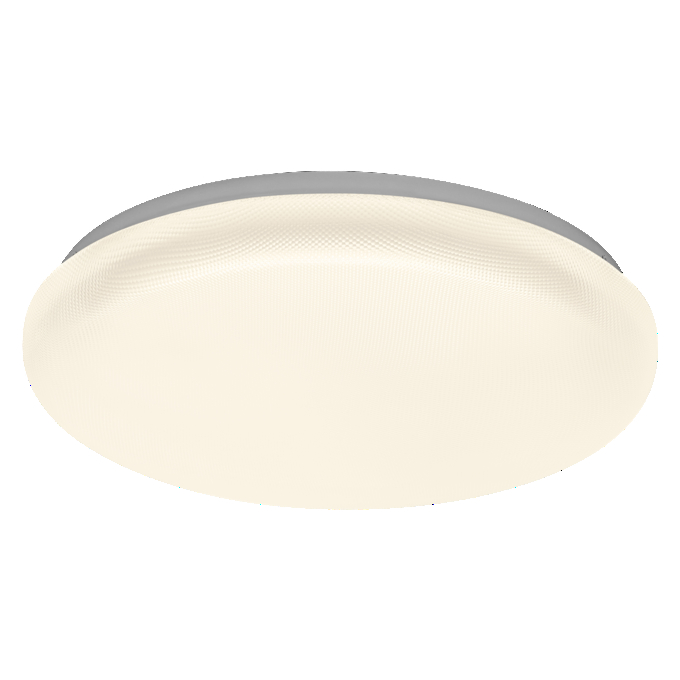

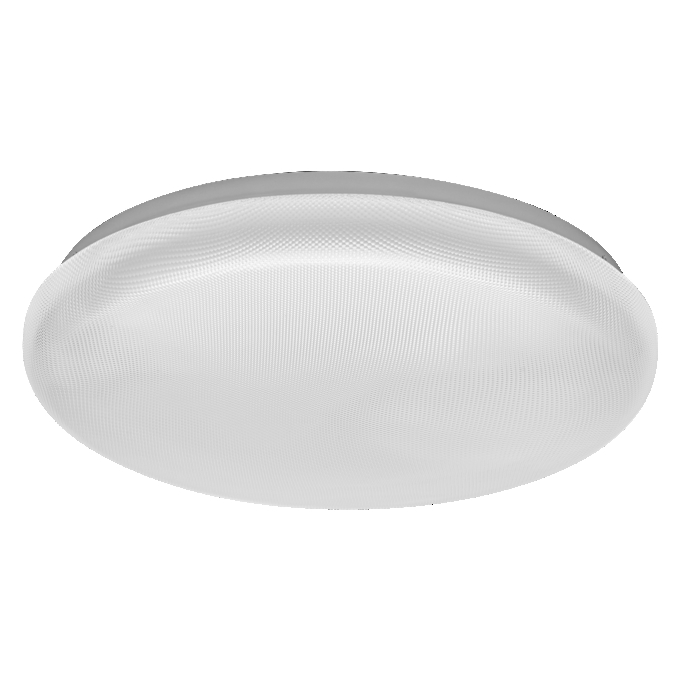

Orbis Dynamic 380 mm CCT RGB DIM Remote Control
4058075861213
Product benefits
- Set color temperature according to daytime and usage (dining, relaxing, social events...)

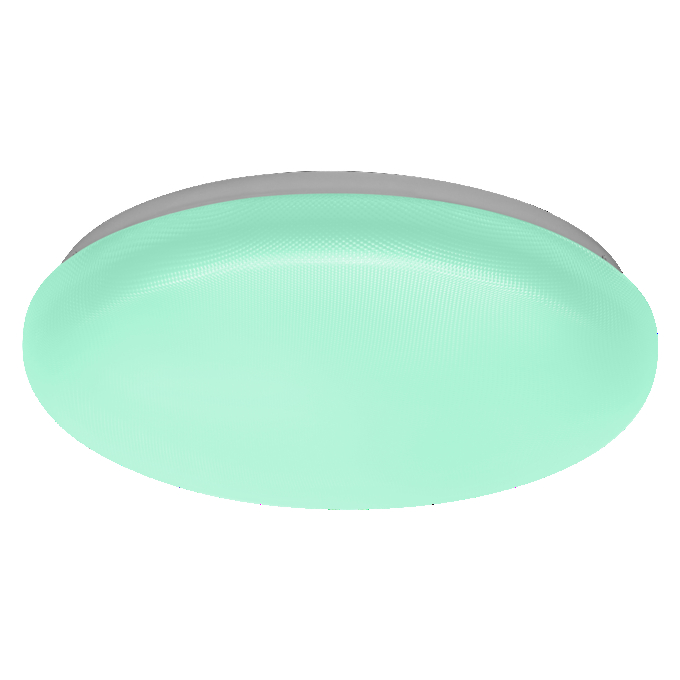

- Dynamic color effect
- Easy mounting
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- High-power LED
- Tunable White and RGB
- Housing material: metal and plastic
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
2700…6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polymethylmethacrylate (PMMA)
Diameter
380.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075861213
Height
75.00 mm
Housing color
White
Inrush current
0.175 A
Inrush current time Th50
620 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
R
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
70 lm/W
Luminous flux
1700 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
26
Max. number of luminaires per miniature circuit breaker C10
25
Max. number of luminaires per miniature circuit breaker C16
41
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Surface
Mounting type
Surface
Nominal current
165.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
800.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
170 %
Total luminous flux of contained light sources
2600 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
With light source
Yes
