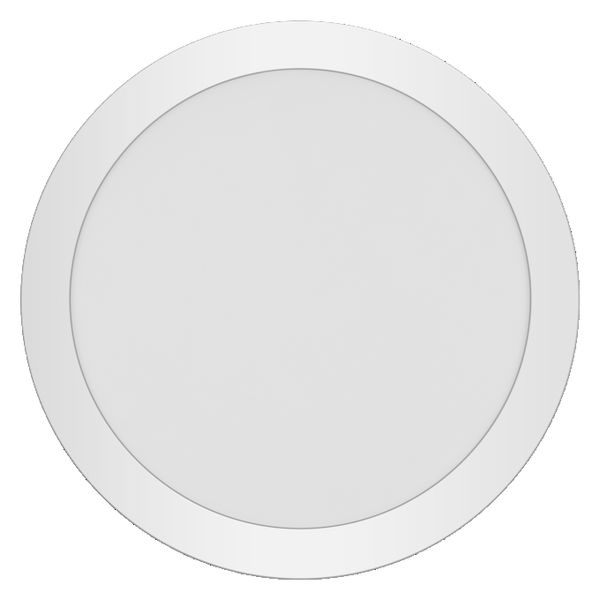

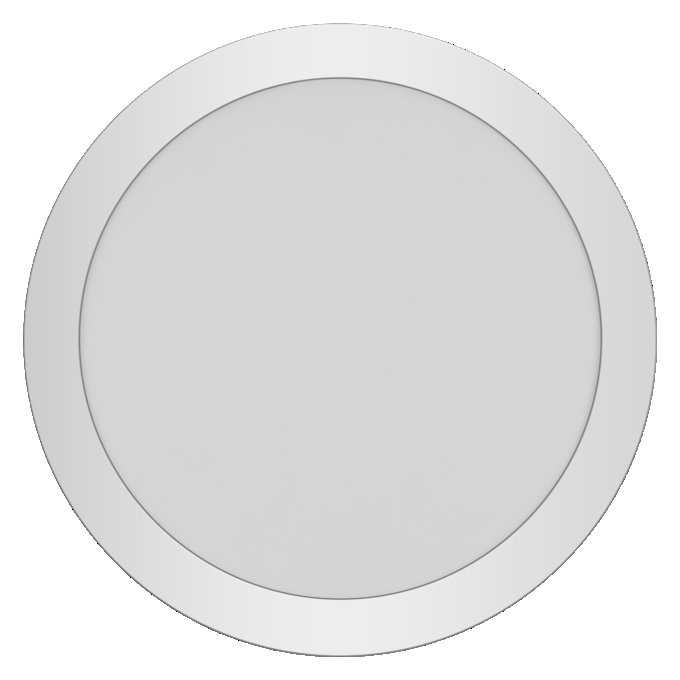

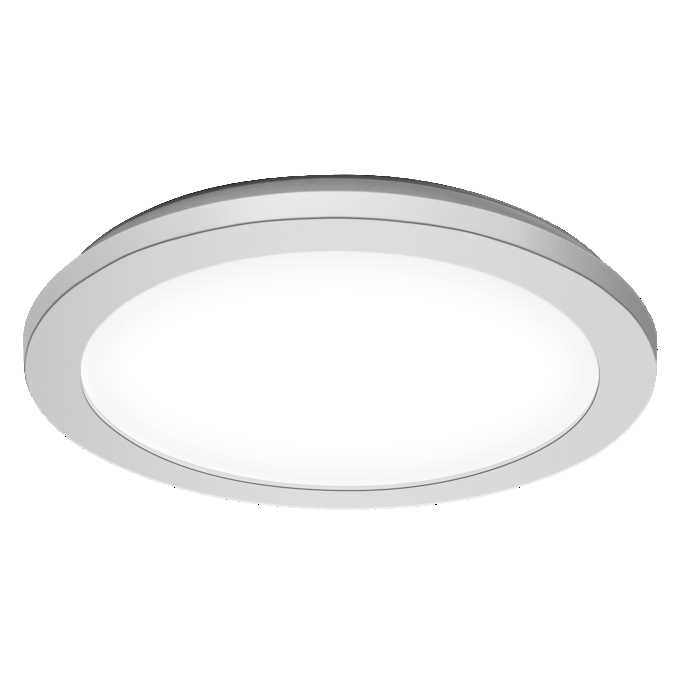

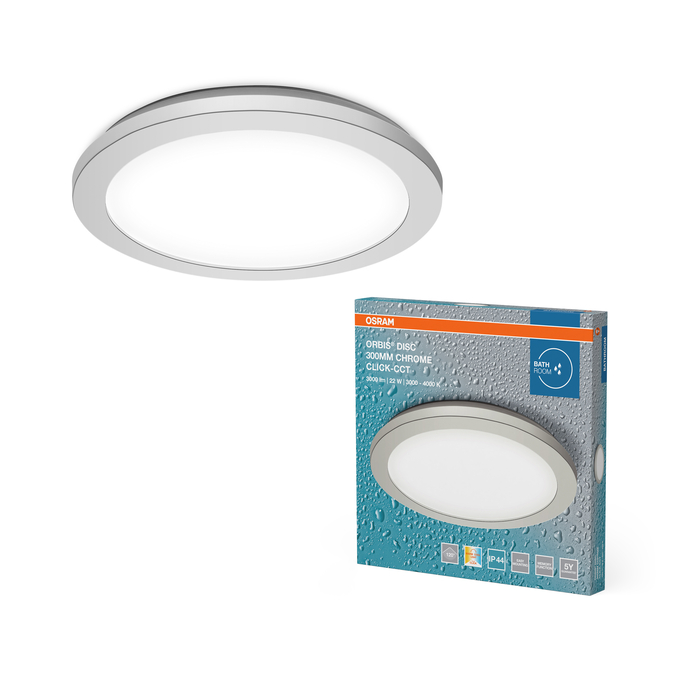

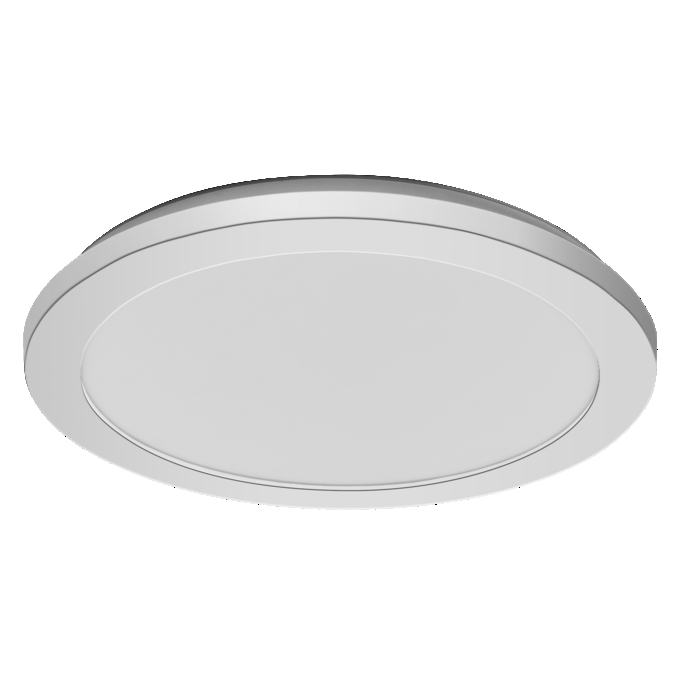

Orbis Disc 30CM 22W Click CCT IP44 Chrome
4099854446832
Product benefits
- Easy to install and use
- Long lifetime thanks to LED technology
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
- Bathrooms (IP44)
Product features
- Type of protection: IP44
- Lifetime up to 30,000 h
- Color temperature: 3,000 K (Warm White) or 4,000 K (Neutral White)
- Click-CCT version: color temperature adjustable in two steps by repeated switching
- Available in square and rectangular form
- Housing material: aluminum
- Polycarbonate (PC) diffuser
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
ABS/Polycarbonate (PC)/Aluminum
Color rendering index Ra
≥80
Color temperature
3000 … 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
300.00 mm
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854446832
Height
30.00 mm
Housing color
Chrome
Inrush current time Th50
800 µs
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
81 lm/W
Luminous flux
1800 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
75
Max. number of luminaires per miniature circuit breaker C10
60
Max. number of luminaires per miniature circuit breaker C16
96
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
116.000 mA
Nominal voltage
220…240 V
Nominal wattage
22.00 W
Number of switching cycles
10000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.7
Product color
Chrome
Product recyclability
Mostly recyclable product 1)
Product weight
890.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 80 %
Total luminous flux of contained light sources
3000 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of protection
IP44
With light source
Yes
