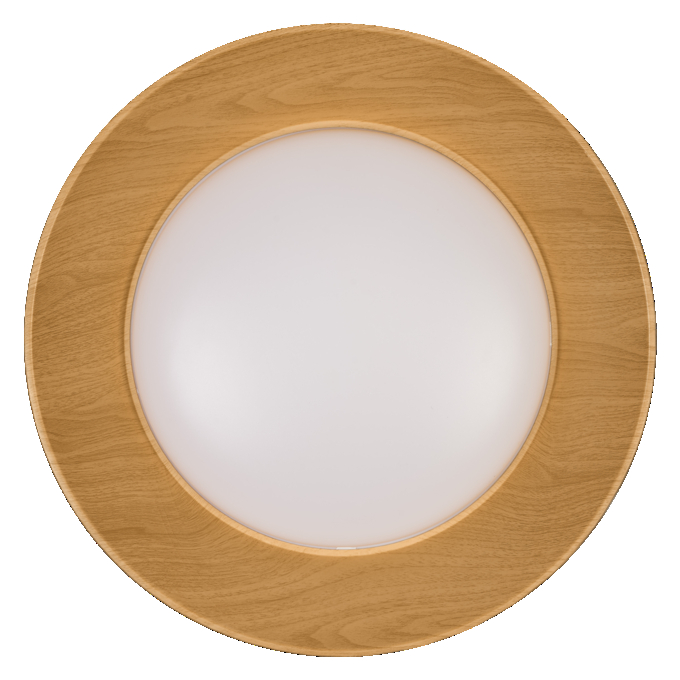

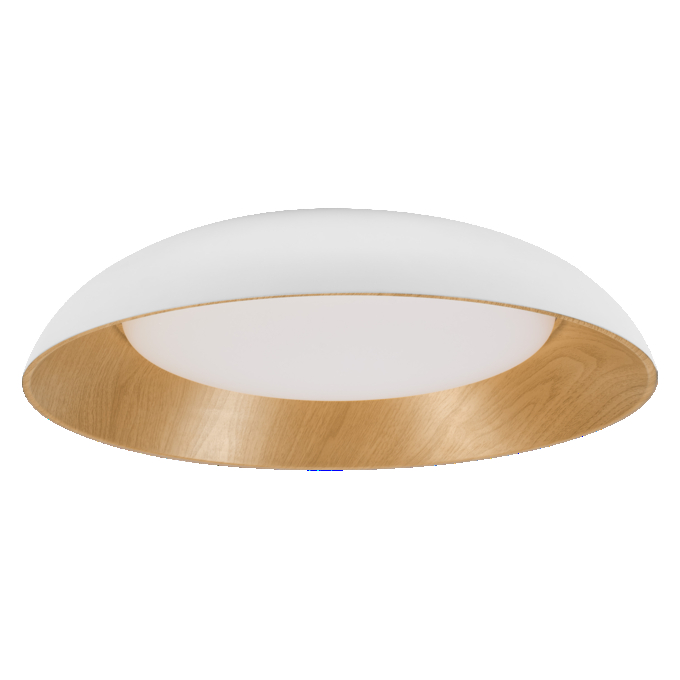

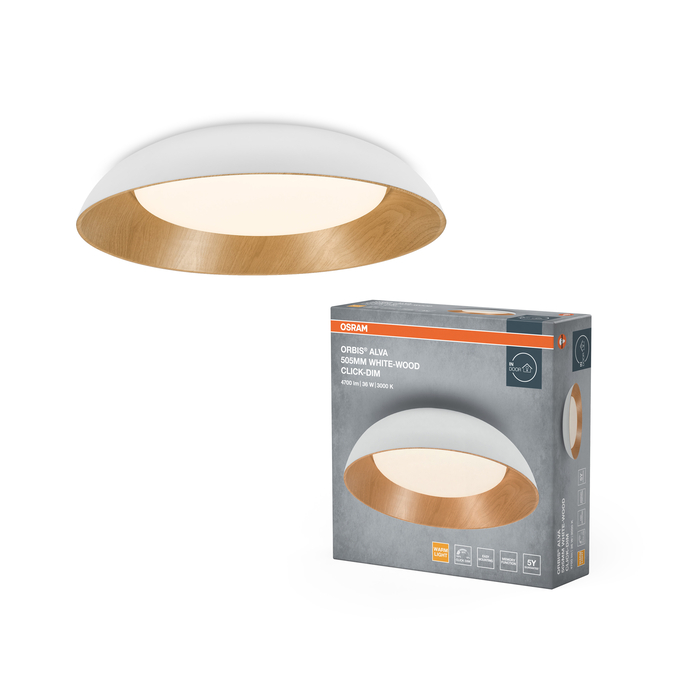

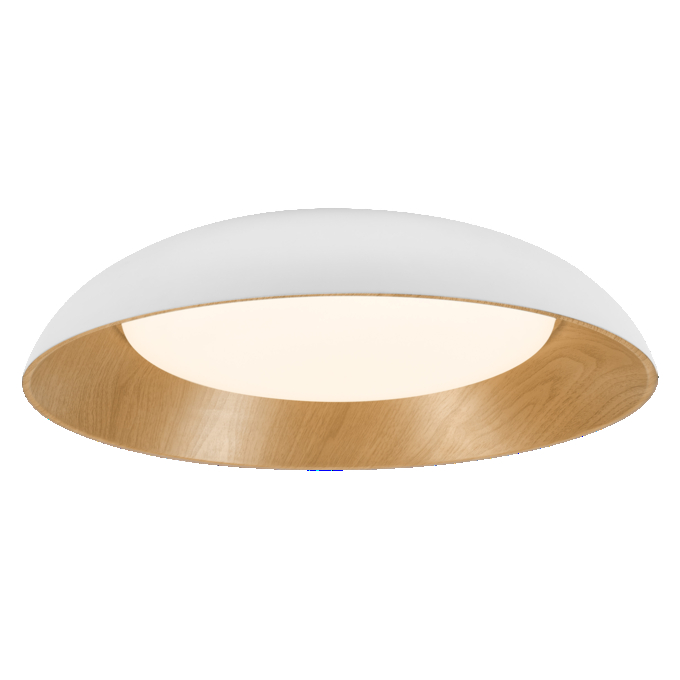

Orbis Alva 505MM 36W 830 Click DIM White and Wood Decor
4099854446351
Product benefits
- Stylish and modern design
- Easy to install and use
- Long lifetime thanks to LED technology
Areas of application
- Indoor
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Type of protection: IP20
- Lifetime up to 30,000 h
- Click-DIM version: dimmable in three steps by repeated switching
- Color temperature: 3,000 K (Warm White)
- Metal housing, PMMA cover
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Metal
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Plastic
Diameter
505.00 mm
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854446351
Height
140.00 mm
Housing color
White|Wood decor
Inrush current time Th50
3.19 µs
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), N,N-Dimethylformamide
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
44 lm/W
Luminous flux
1600 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
75
Max. number of luminaires per miniature circuit breaker C10
47
Max. number of luminaires per miniature circuit breaker C16
75
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
170.000 mA
Nominal voltage
220…240 V
Nominal wattage
36.00 W
Number of switching cycles
25000
Operating mode
External LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White|Wood decor
Product recyclability
Mostly recyclable product 1)
Product weight
2650.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
≤ 30 %
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
With light source
Yes
