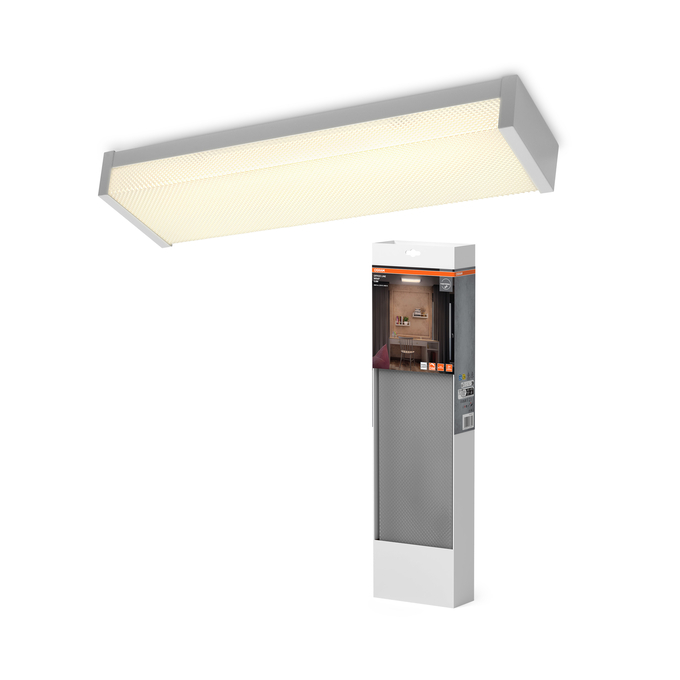

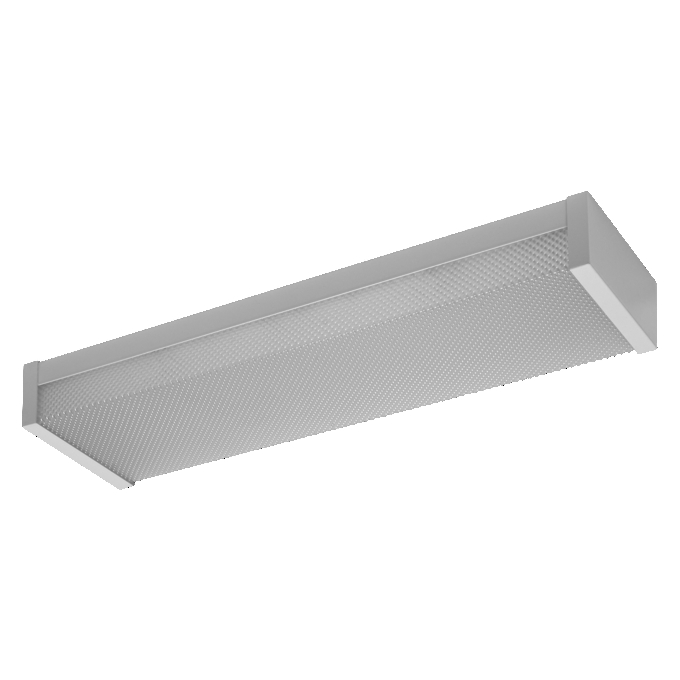

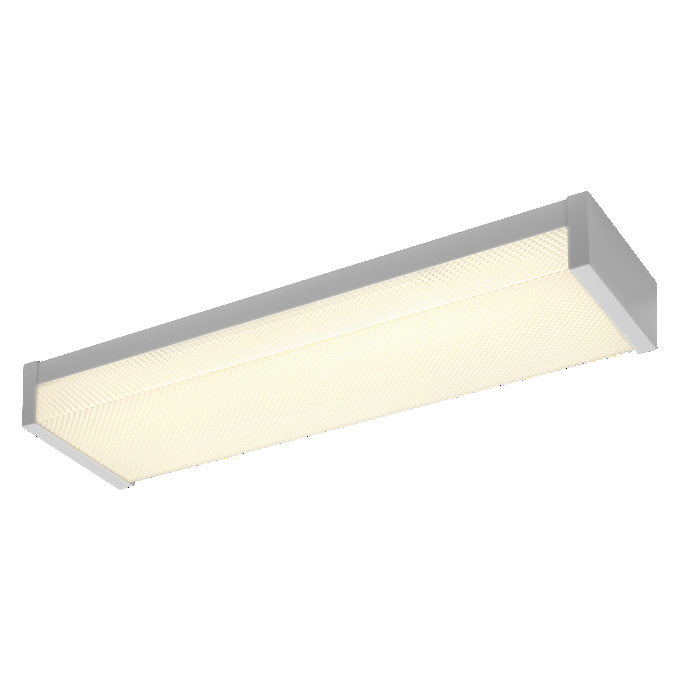

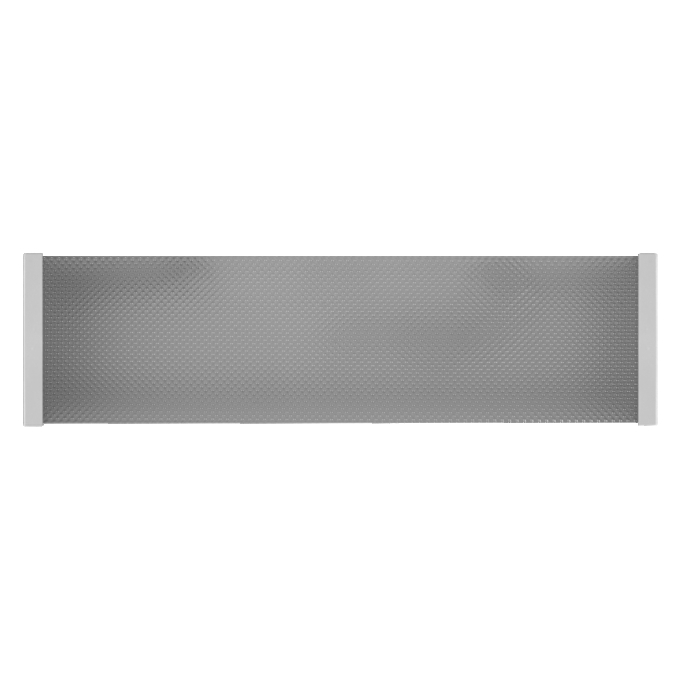

OFFICE LINE WRAP 0.6M 20W 840 DIM RC
4099854536694
Product benefits
- Attractive and functional design for office applications
- Prismatic diffuser to soften and scatter the light
- Dimming via enclosed remote control
Areas of application
- Office lighting
Product features
- Lengths available: 0.6 m, 1.2 m
- Lifetime up to 50,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
- Remote control included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
- If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
- Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Battery size [GMS]
CR2025
Beam angle
95 ° x 90 °
Body material
Steel
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polystyrene (PS)
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854536694
Height
71.60 mm
Housing color
White
Inrush current time Th50
56 µs
Length
600.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Perfluorobutanesulfonic acid (PFBS) (375-73-5),2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV-329)(3147-75-9)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
115 lm/W
Luminous flux
2300 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
96
Max. number of luminaires per miniature circuit breaker C10
76
Max. number of luminaires per miniature circuit breaker C16
122
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
91.000 mA
Nominal voltage
220…240 V
Nominal wattage
20.00 W
Number of illuminants
empty
Number of switching cycles
25000
Operating mode
Battery
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1150.00 g
Protection class
I
Protection class IK (shock resistance)
IK02
Replaceable light source
No
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
2600 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of dimming
PWM
Type of protection
IP20
Width
163.10 mm
With light source
Yes
