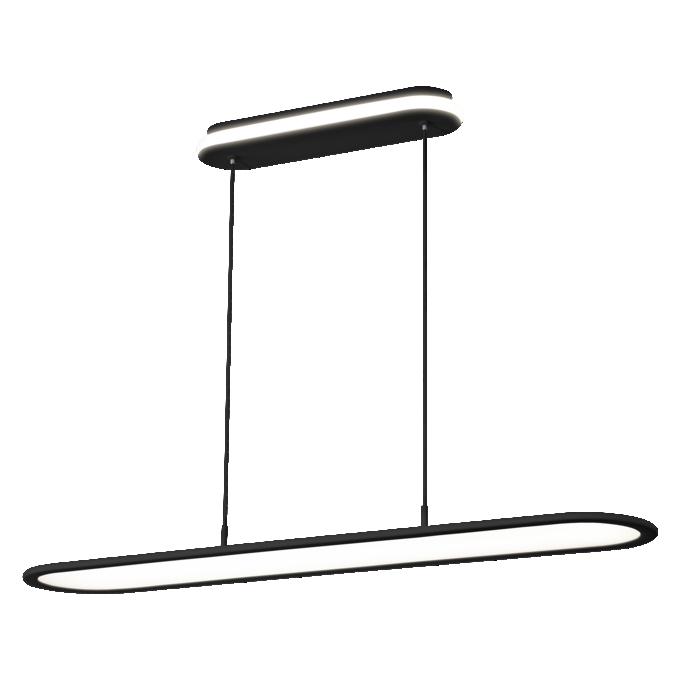

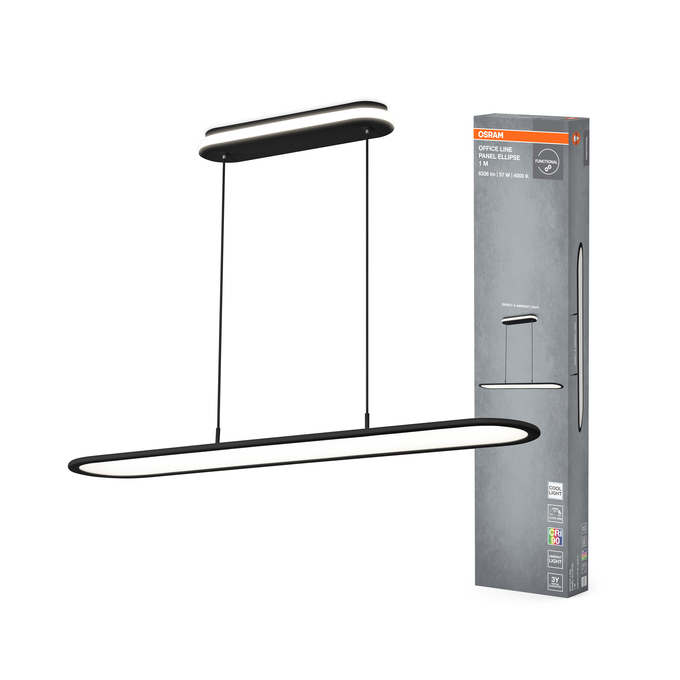

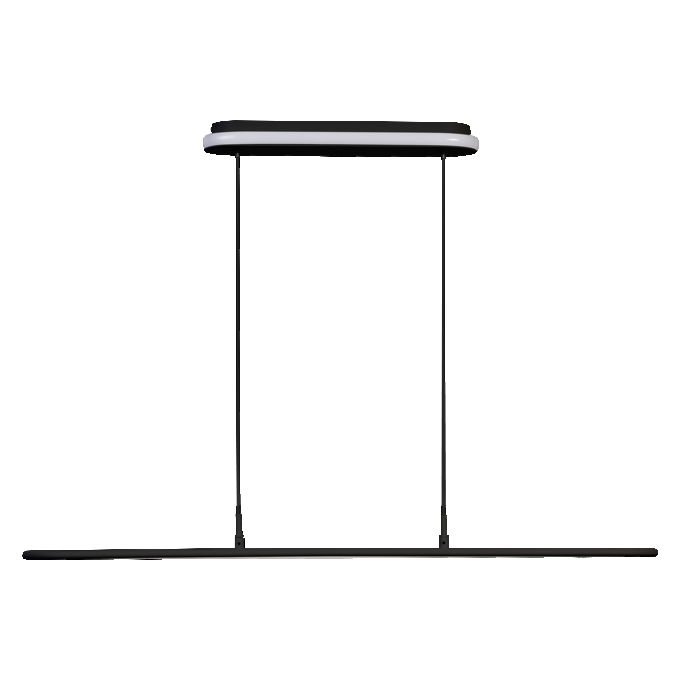

Office Line Panel Ellipse 57W 940 Black
4099854464874
Product benefits
- Suspended mounting to light up the working surface
- Ambient light on the luminaire base
- Click-DIM: dimmable in three steps by repeated switching
- High CRI value of >90 for natural-looking colors
- With a UGR value of <19, the luminaire meets the requirements for VDU workstations and reduces eye strain
Areas of application
- Office lighting
- Home offices
- Indoor applications
Product features
- Modern design for office applications
- Lifetime up to 30,000 h
- Color temperature: 4,000 K
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Beam angle
102.00 °
Body material
Aluminum
Color rendering index Ra
> 90
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Plastic
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854464874
Height
1500.00 mm
Housing color
Black
Inrush current time Th50
28.1 µs
Length
1000.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
50 lm/W
Luminous flux
2700 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
51
Max. number of luminaires per miniature circuit breaker C10
32
Max. number of luminaires per miniature circuit breaker C16
51
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Suspended
Nominal current
245.000 mA
Nominal voltage
220…240 V
Nominal wattage
57.00 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
3600.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
≤6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 10 %
Total luminous flux of contained light sources
6336 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
3 DIM
Type of protection
IP20
UGR
< 19
Width
200.00 mm
With light source
Yes
