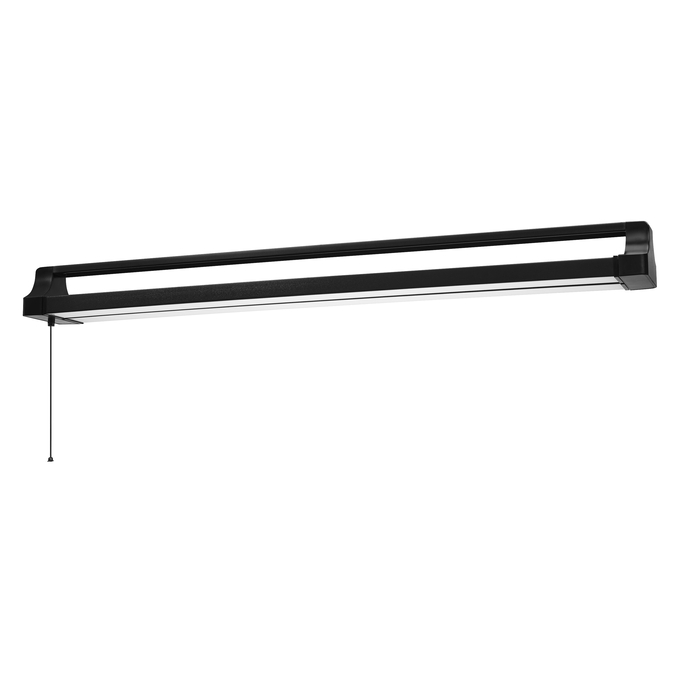

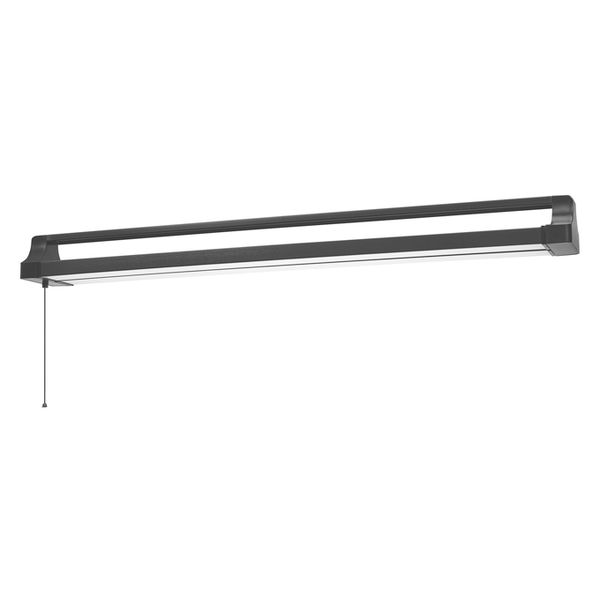

OFFICE LINE DOUBLE ROTATABLE 1.1M 42W 840
4099854536755
Product benefits
- Attractive and functional design for office applications
- Rotatable light body to individually light up the working surface
- Surface mounting and Pendant option to get direct light where needed
- Rope for easy on/off
- Length of rope can be flexibly shortened
Areas of application
- Indoor applications
- Home offices
- General indoor illumination
- Kitchens, workspaces
Product features
- Lifetime up to 30,000 h
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
98 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854536755
Height
102.20 mm
Housing color
Black
Inrush current time Th50
1.5 µs
Length
1062.80 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1), Bisphenol A (BPA)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
95 lm/W
Luminous flux
4000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
43
Max. number of luminaires per miniature circuit breaker C16
55
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Suspended/Surface
Nominal current
180.000 mA
Nominal voltage
220…240 V
Nominal wattage
42.00 W
Number of switching cycles
15000
Operating mode
Electronic control gear (ECG)
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1530.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
4975 lm
Type of connection
Push button terminal, 2-pole
Type of protection
IP20
Width
119.00 mm
With light source
Yes
