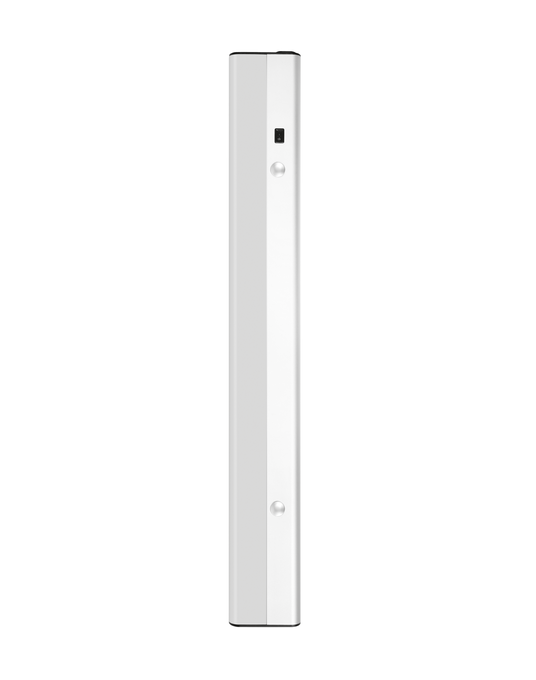

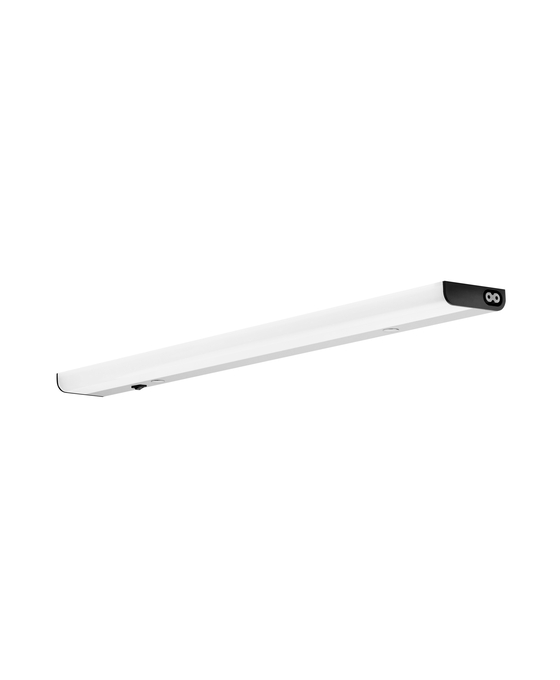

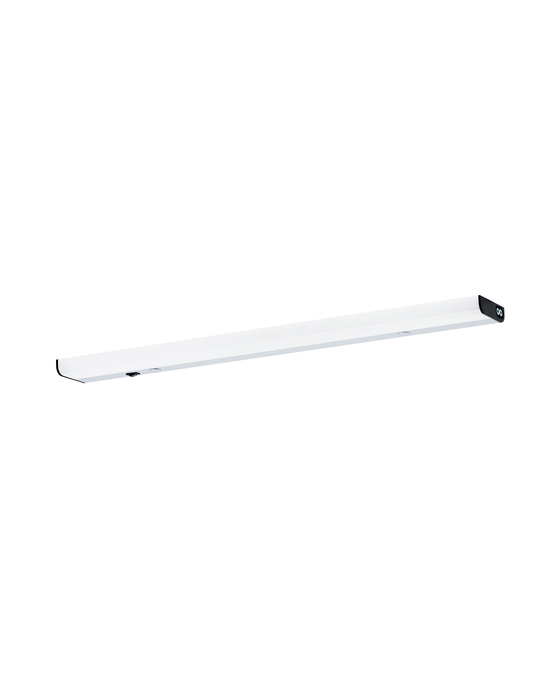

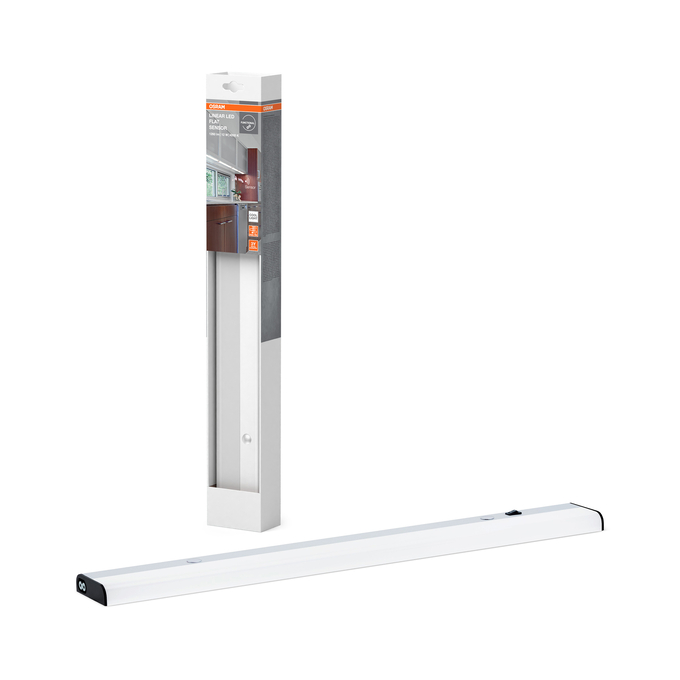

Linear LED Flat Sensor 12W 4000K
4099854532351
Product benefits
- Connection of up to 43 (ECO version) or 18 (sensor Version) luminaires in a row
- Various accessories included: cables and connectors
Areas of application
- Undercabinet lighting
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854532351
Height
19.00 mm
Housing color
Silver
Length
527.00 mm
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
70 lm/W
Luminous flux
840 lm
Mains frequency
50…60 Hz
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
100.000 mA
Nominal voltage
220…240 V
Nominal wattage
12.00 W
Number of illuminants
empty
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Silver
Product recyclability
Mostly recyclable product 1)
Product weight
425.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor technology
Passive infrared (PIR)
Standard deviation of color matching
≤6 sdcm
Total luminous flux of contained light sources
1260 lm
Type of connection
Plug type C (EU)
Type of emergency operation test
None
Type of protection
IP20
Type of sensor
Motion
Width
67.00 mm
With light source
Yes
