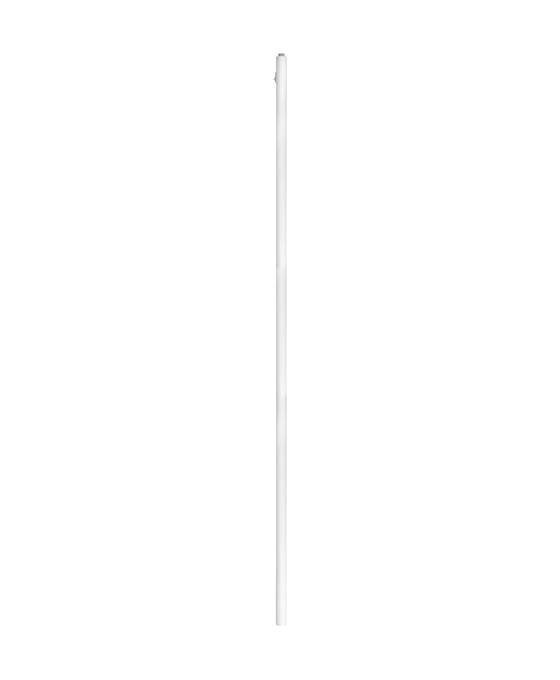

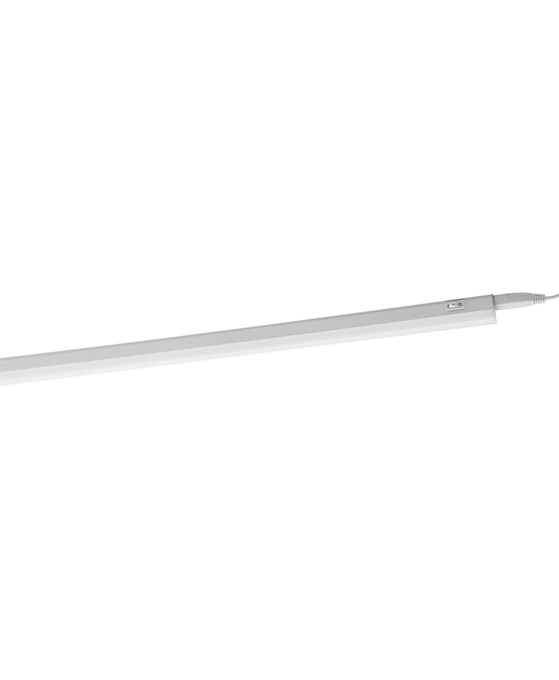

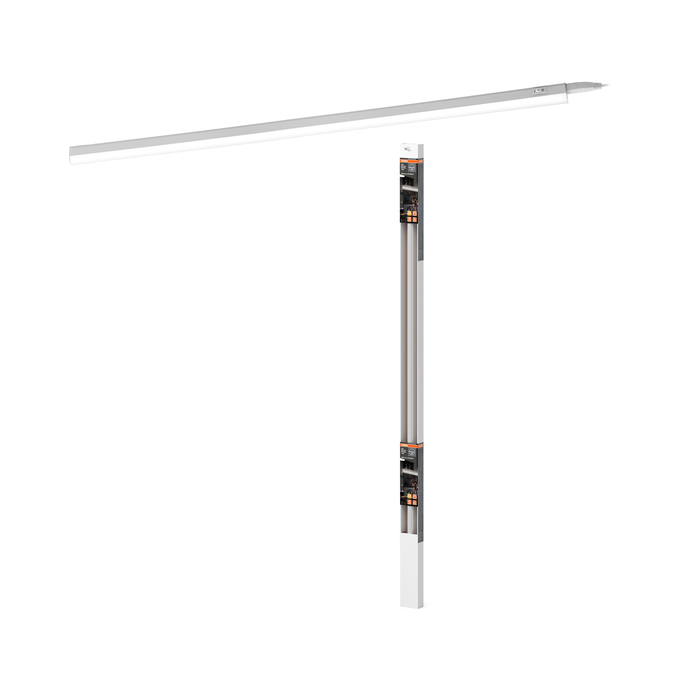

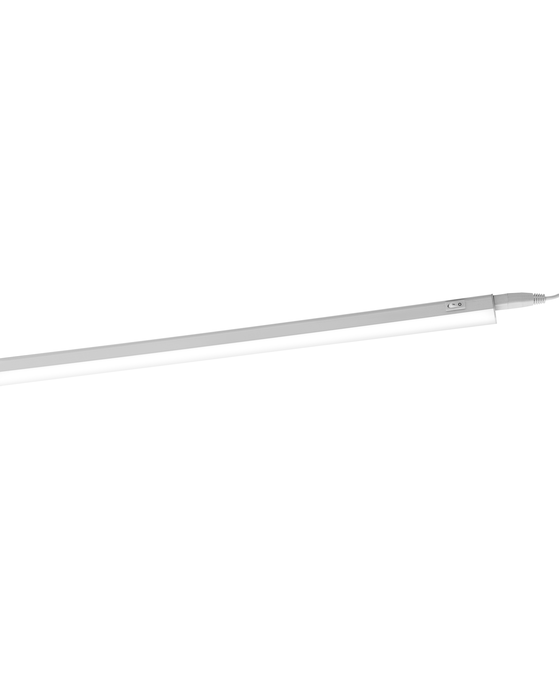

LED Switch Batten 1200 mm 14 W 3000 K
4099854532757
Product benefits
- Little space required thanks to compact dimensions
- Ready for connection due to integrated on/off switch and cable with EU-plug
- Easy and quick electrical connection for light line installation
- Flexible application due to a wide range of available lengths of 300 to 1200 mm.
- Flexible installation in 2 different angles with 2 different mounting options
Areas of application
- Indoor applications
- Under cabinet lighting
- Accent lighting
- General indoor illumination
- Corridors, entrance areas, stairwells, living rooms, basements
- Cove lighting
Product features
- Replacement for traditional T8 luminaires

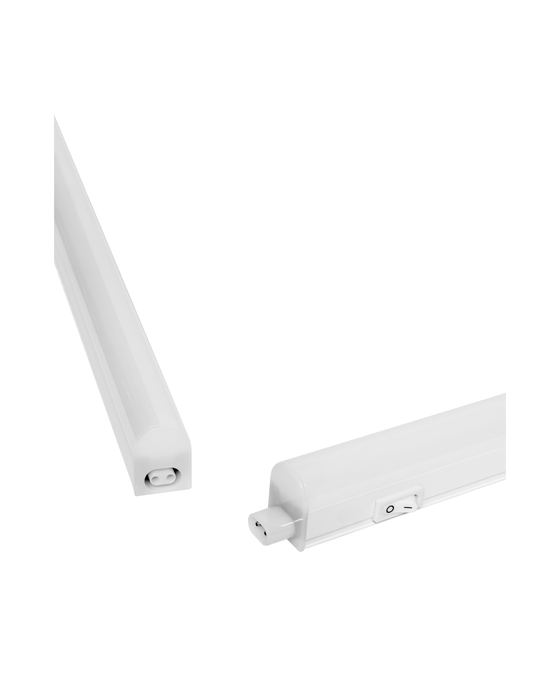

- On/off switch on luminaire
- Polycarbonate housing
- Lifetime up to 30,000 h
- Color temperature: 3,000 K, 4,000 K
- High luminous efficacy: up to 115 lm/W
- Lengths available: 0.3 m, 0.6 m, 0.9 m, 1.2 m
- Mounting accessories included

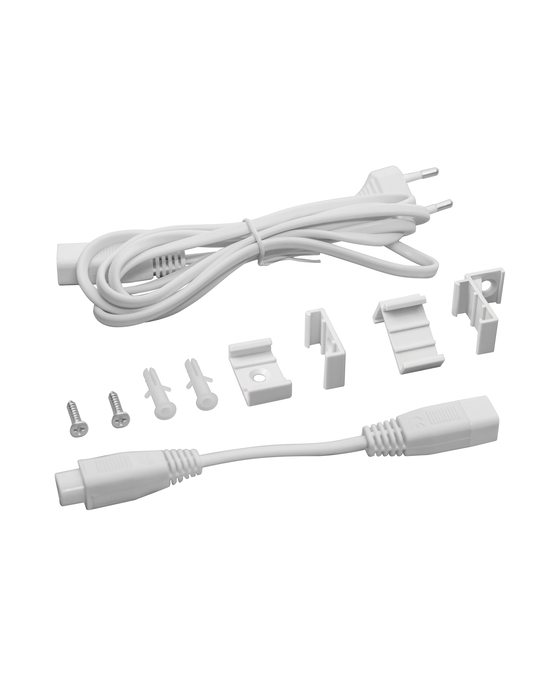

Equipment / Accessories
- Equipped with 1.5 m cable and EU plug
- Mounting bracket included

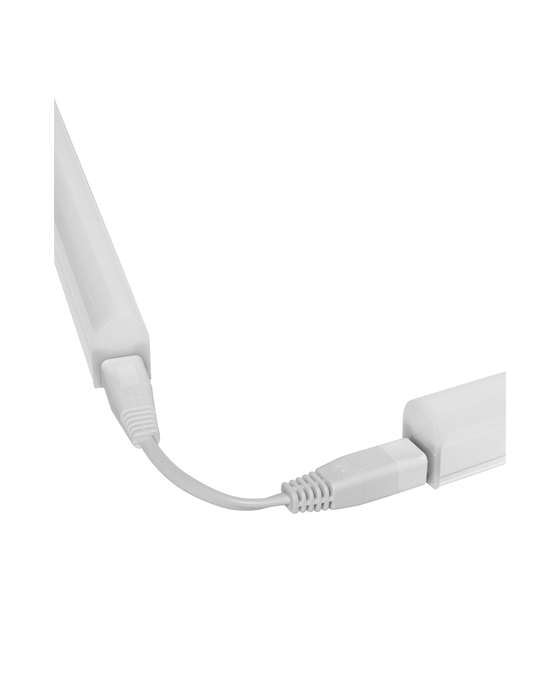

- Fixed connector and flexible connecting cable included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Beam angle
155 °
Body material
Polycarbonate (PC)
Cable length
1500 mm
Color rendering index Ra
≥80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
GTIN
4099854532757
Height
30.00 mm
Housing color
White
Length
1173.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
110 lm/W
Luminous flux
1600 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
22
Max. number of luminaires per miniature circuit breaker C16
35
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
105.000 mA
Nominal voltage
220…240 V
Nominal wattage
14.00 W
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
200.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Total harmonic distortion
110 %
Total luminous flux of contained light sources
1800 lm
Type of connection
Plug type C (EU)
Type of protection
IP20
Width
22.00 mm
With light source
Yes
