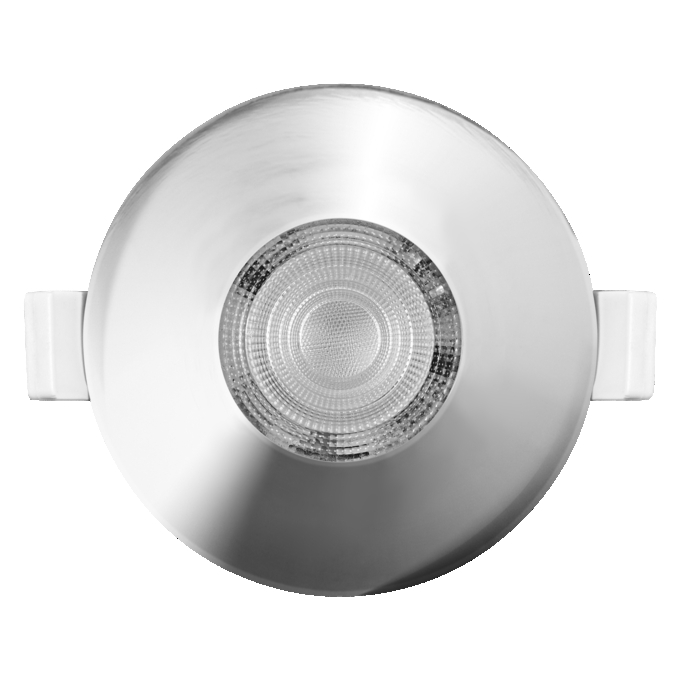

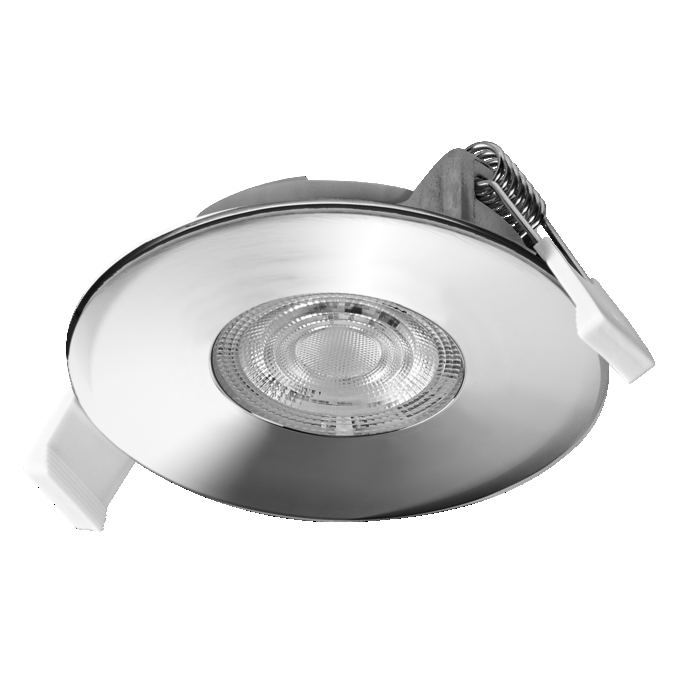

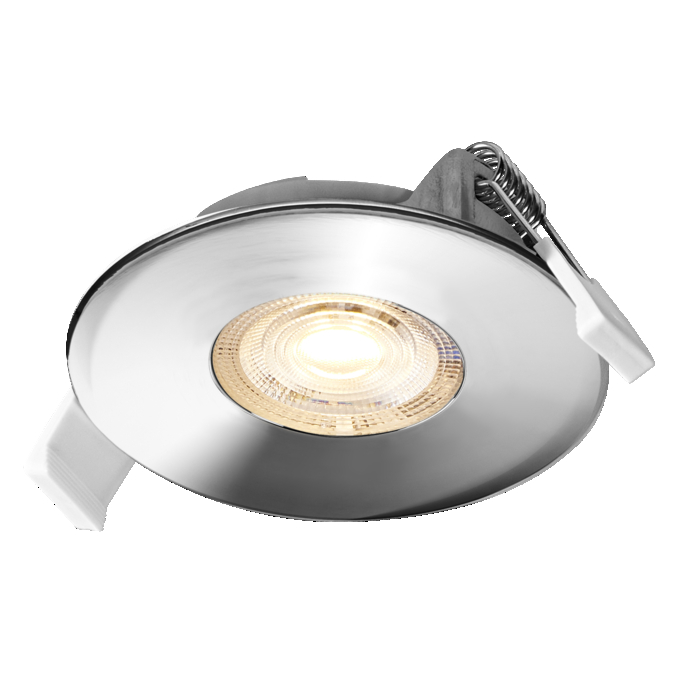

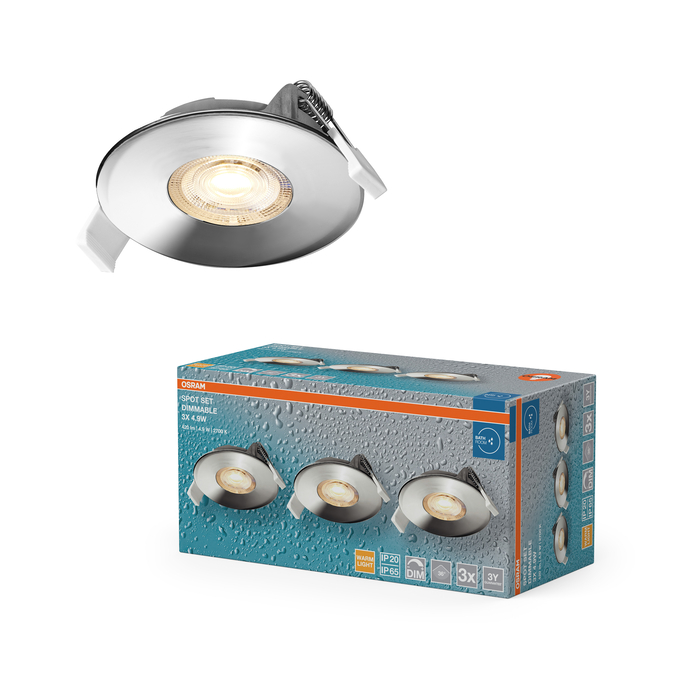

LED Spot Set DIM Recess IP65 4.9W 827 36° Chrome
4099854596100
Product benefits
- Can be rotated and swiveled for optimum illumination
- Through-wiring possible with included connector box
- Easy mounting
Areas of application
- Suitable for outdoor use
- Bathrooms
- Workshops, garages, covered outdoor storage areas
Product features
- Recessed ceiling mounting
- Dimmable (with suitable Phase-cut dimmers)
- Color temperature: 2,700 K
- Through wiring possible
- Type of protection, front side: IP44
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
36 °
Body material
Aluminum|Plastic
Color rendering index Ra
80
Color temperature
2700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
85.00 mm
Dimmable
Yes
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854596100
Height
27.50 mm
Housing color
Chrome
Inrush current
4.1 A
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
55 lm/W
Luminous flux
270 lm
Luminous intensity
520 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
38
Max. number of luminaires per miniature circuit breaker C10
24
Max. number of luminaires per miniature circuit breaker C16
38
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
40 mm
Mounting diameter
68 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
33.000 mA
Nominal voltage
220…240 V
Nominal wattage
4.90 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.40
Product color
Chrome
Product recyclability
Mostly recyclable product 1)
Product weight
92.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
420 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of dimming
PHASE CUT
Type of emergency operation test
None
Type of protection
IP65/IP20
With light source
Yes
