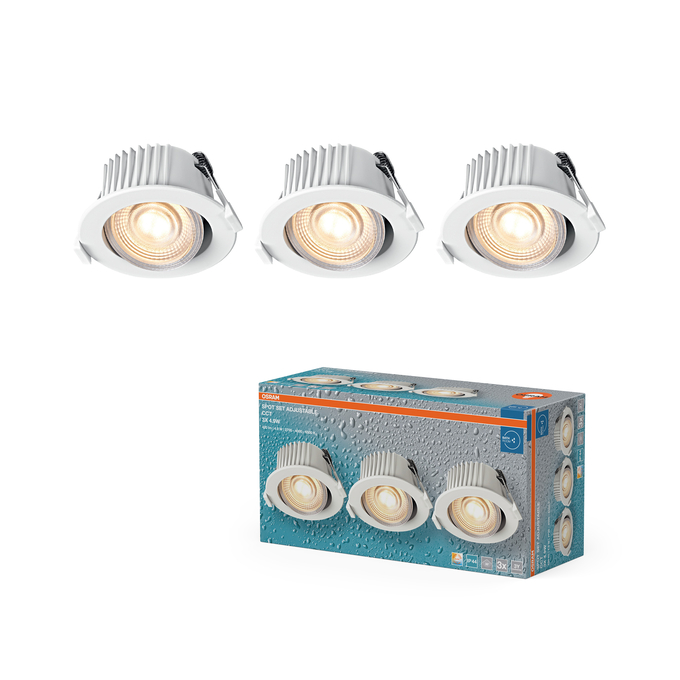

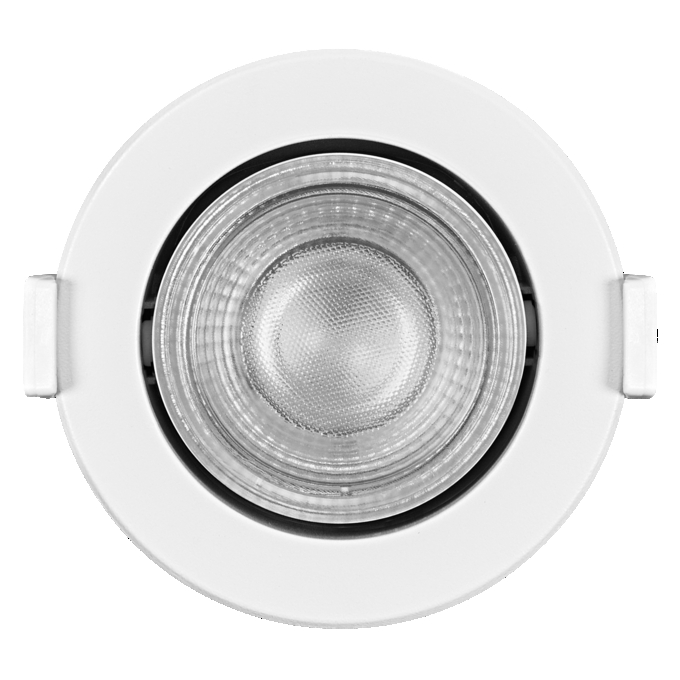

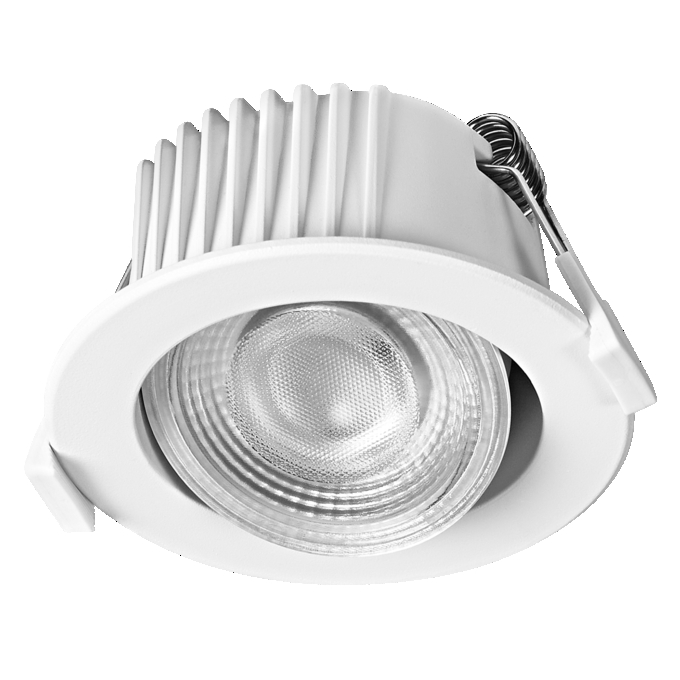

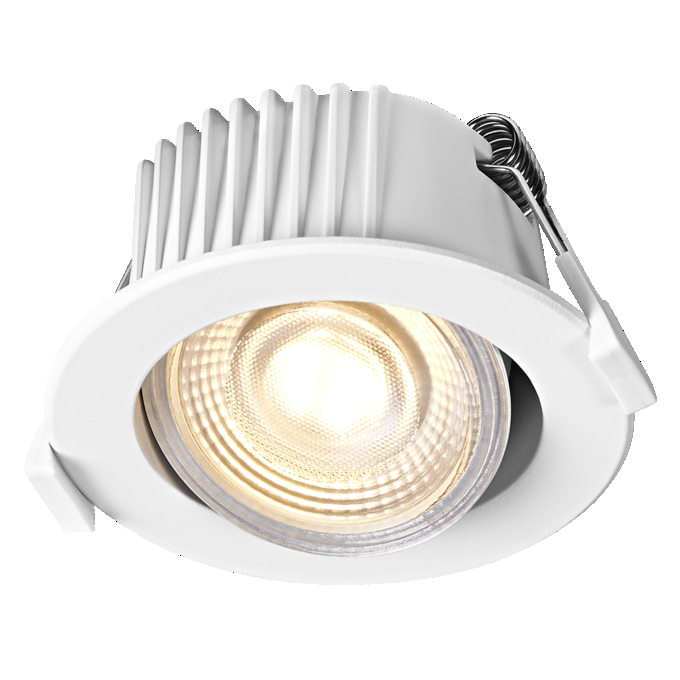

LED Spot Set CCT Recess IP44 Adjustable 4.9W CCT 36° White
4099854596063
Product benefits
- Highly versatile due to selectable CCT
- Can be rotated and swiveled for optimum illumination
- Through-wiring possible with included connector box
- Easy mounting
Areas of application
- Suitable for outdoor use
- Bathrooms
- Workshops, garages, covered outdoor storage areas
Product features
- Recessed ceiling mounting
- Click-CCT version: color temperature adjustable in three steps by repeated switching
- Adjustable swivel angle
- With integrated LED module and driver
- Available with color temperature: 2,700 K, 4,000 K, 6,500 K
- Through wiring possible
- Type of protection, front side: IP44
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
36 °
Body material
Aluminum
Color rendering index Ra
80
Color temperature
2700 K / 4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Diameter
88.00 mm
Dimmable
No
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854596063
Height
40.00 mm
Housing color
White
Inrush current
6.1 A
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
59 lm/W
Luminous flux
290 lm
Luminous intensity
570 cd
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
29
Max. number of luminaires per miniature circuit breaker C10
18
Max. number of luminaires per miniature circuit breaker C16
29
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
80 mm
Mounting diameter
68 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
44.000 mA
Nominal voltage
220…240 V
Nominal wattage
4.90 W
Number of switching cycles
15000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.40
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
208.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Reference control setting of contained light source (Kelvin)
2700 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
420 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP44/IP20
With light source
Yes
