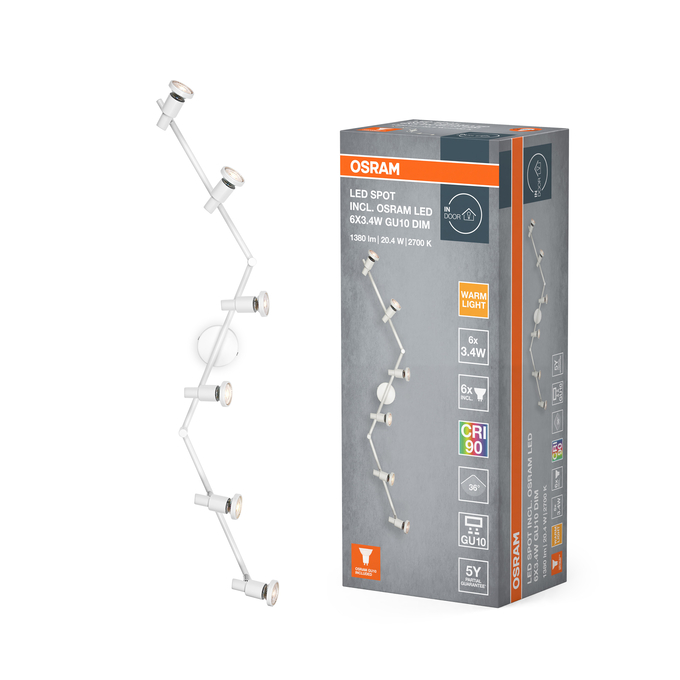

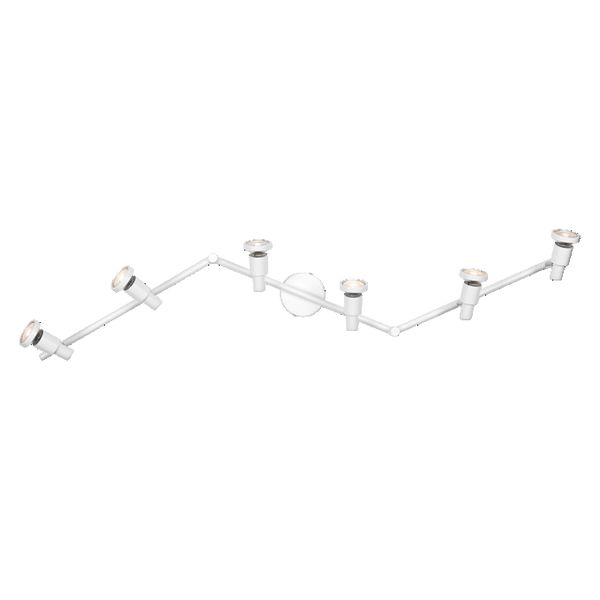

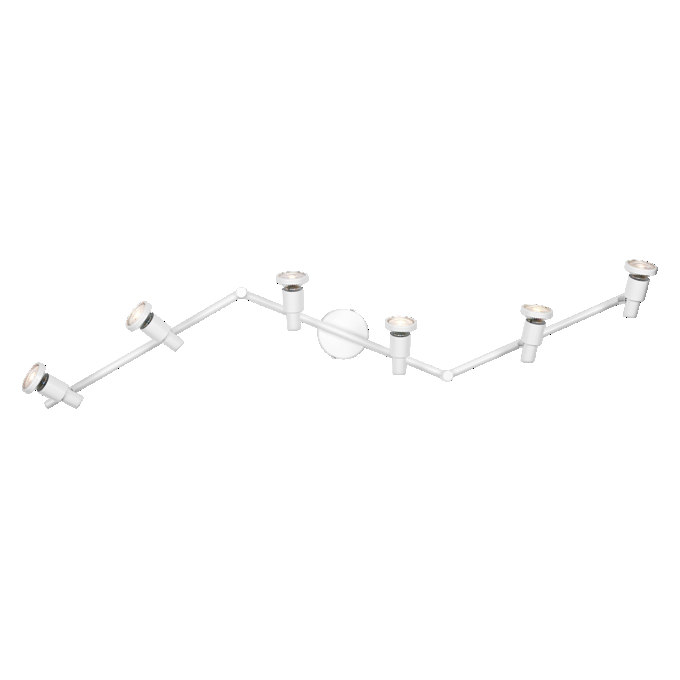

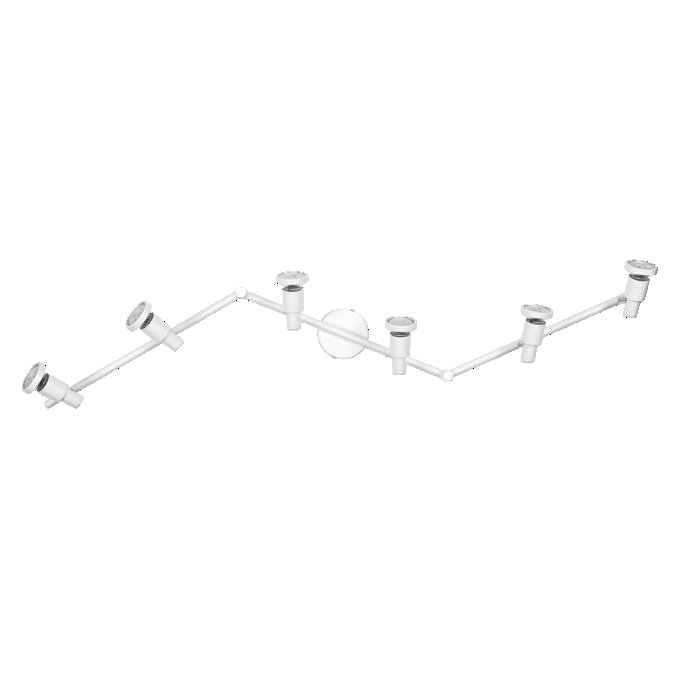

LED Spot GU10 White 6 X 3.4W 927 DIM
4099854474613
Product benefits
- Timeless design
- High-quality housing with matt white or matt black surface
- Flexible thanks to replaceable LED lamps
- Dimmable OSRAM lamp included
- Easy mounting
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Kitchens, workspaces
- Ceiling and wall surface mounting
Product features

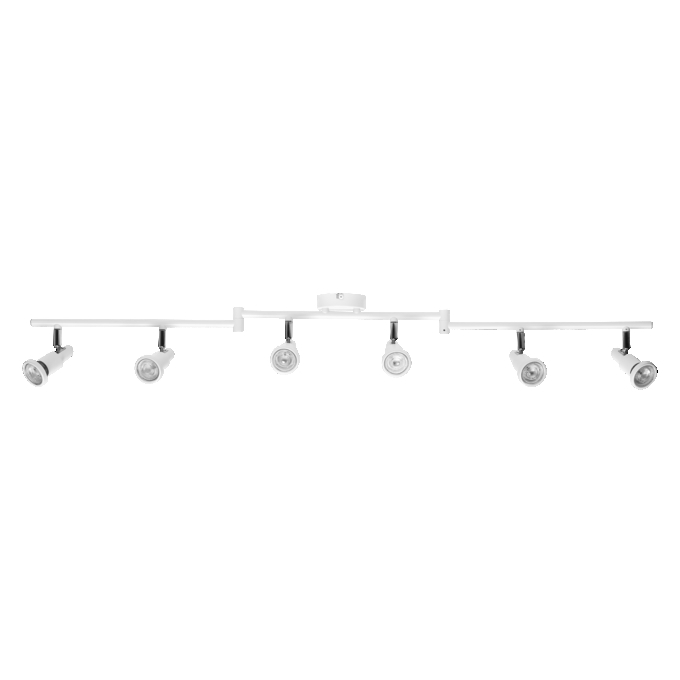

- Luminaire family features five versions with up to 6 spot heads
- Adjustable heads
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Adjustable
Yes
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
36 °
Body material
Steel
Color rendering index Ra
90
Color temperature
2700 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854474613
Height
176.00 mm
Holder designation
GU10
Housing color
White
Inrush current time Th50
600 µs
Length
1198.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
68 lm/W
Luminous flux
1380 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
25
Max. number of luminaires per miniature circuit breaker C16
44
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
102.000 mA
Nominal voltage
220…240 V
Nominal wattage
20.40 W
Number of illuminants
6
Number of switching cycles
100000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
0.70
Product color
White
Product recyclability
Mostly recyclable product 1)
Product remark
Maximum bulb wattage: 5 W LED
Product weight
1310.00 g
Protection class
I
Protection class IK (shock resistance)
IK06
Replaceable light source
No
Standard deviation of color matching
≤5 sdcm
Temperature range at storage
-20…+40 °C
Total harmonic distortion
100 %
Total luminous flux of contained light sources
1380 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
Width
90.00 mm
With light source
Yes
