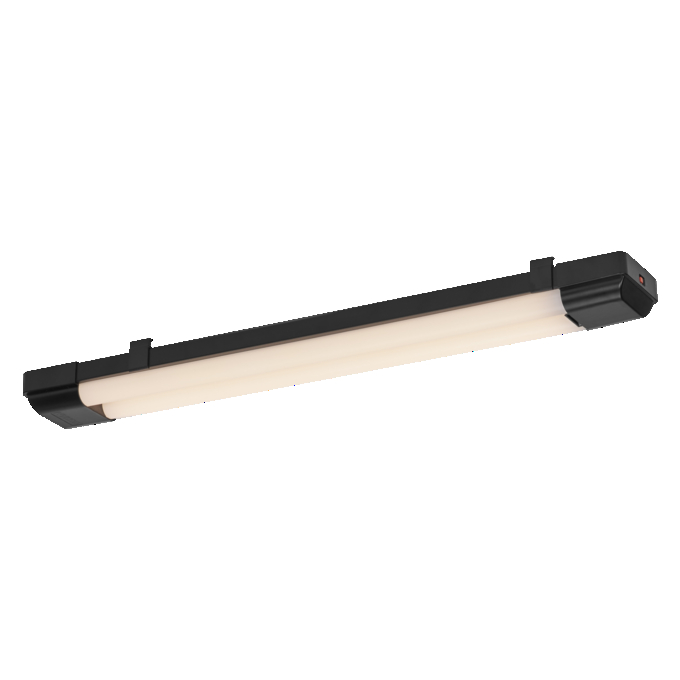

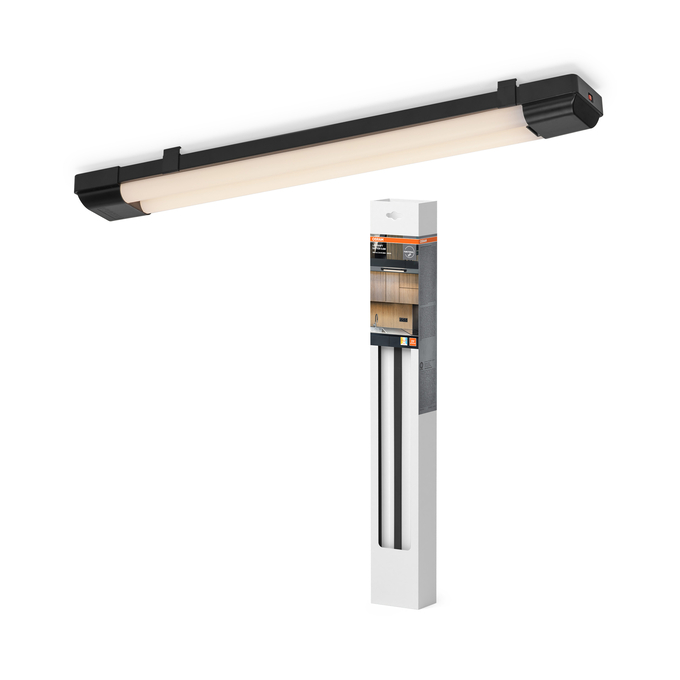

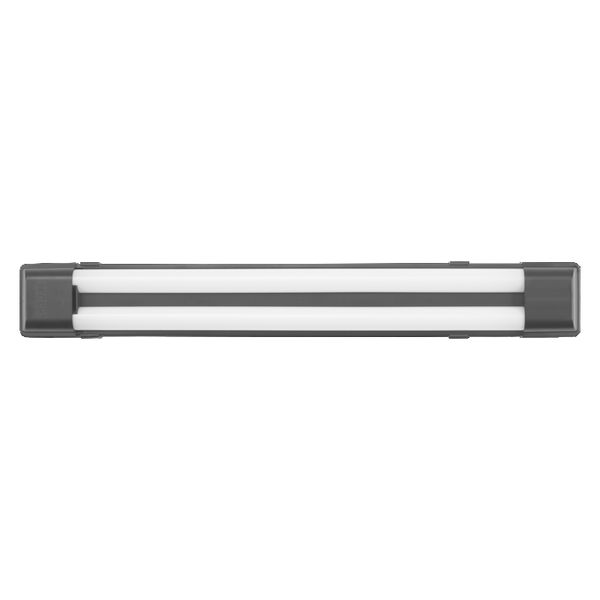

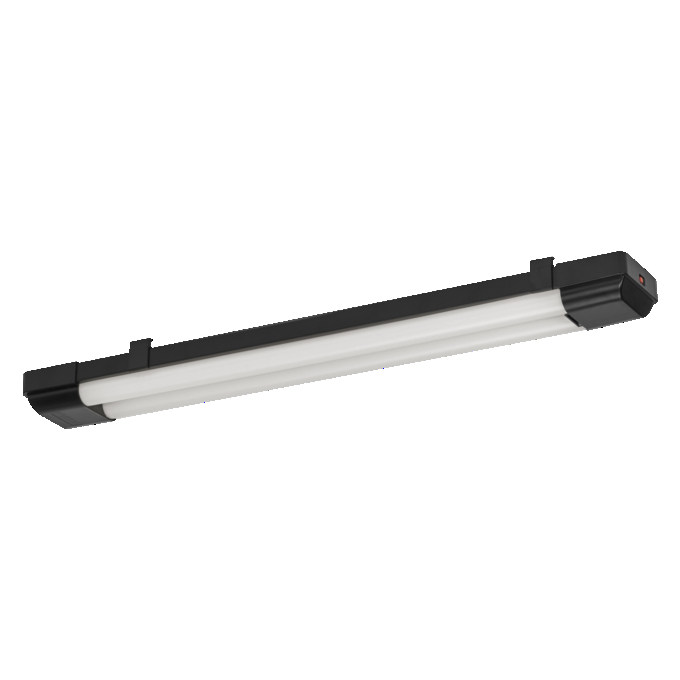

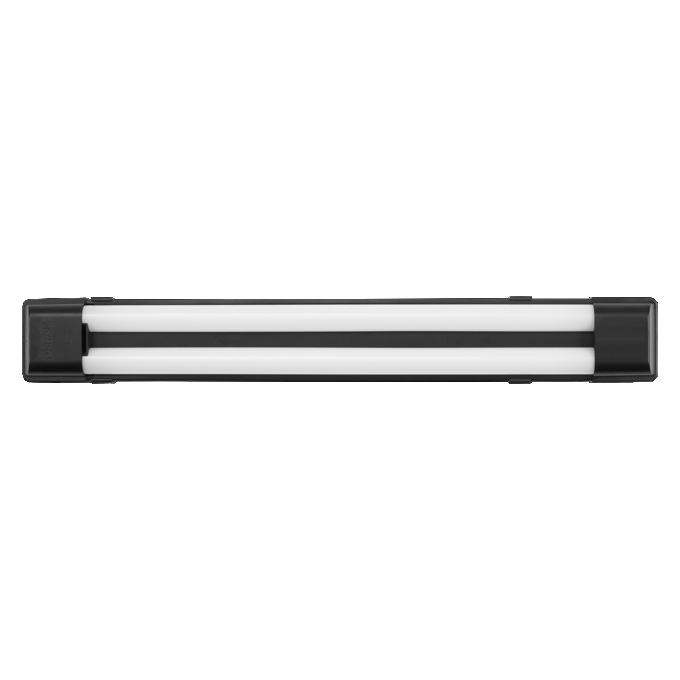

LED Shift Batten 60cm 24W CCT Black
4099854600975
Product benefits
- Established design in the trendy color black for modern accents
- Color temperature adjustment for different application needs
- High brightness at low power consumption
- High energy savings compared to luminaires that use conventional light sources
- Easy installation
Areas of application
- Indoor applications
- Ceiling and wall surface mounting
- Kitchens, workspaces
- Corridors, stairwells, basements
- General indoor illumination
- Workshops
Product features
- Replacement for traditional T8 luminaires
- Very high luminous efficacy (130 lm/W)
- Wall and ceiling luminaire
- Lifetime up to 30,000 h
- Lengths available: 0.6 m, 1.2 m
- Multi Color function: 3000 K and 4000 K
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
135 °
Body material
Metal
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
< 5%
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854600975
Height
49.20 mm
Housing color
Black
Inrush current
0.18 A
Length
600.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminous efficacy
120 lm/W
Luminous flux
2880 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
48
Max. number of luminaires per miniature circuit breaker C10
38
Max. number of luminaires per miniature circuit breaker C16
62
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface/Suspended
Nominal current
180.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
530.00 g
Protection class
I
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Total harmonic distortion
140 %
Total luminous flux of contained light sources
1800 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP20
Width
82.40 mm
With light source
Yes
