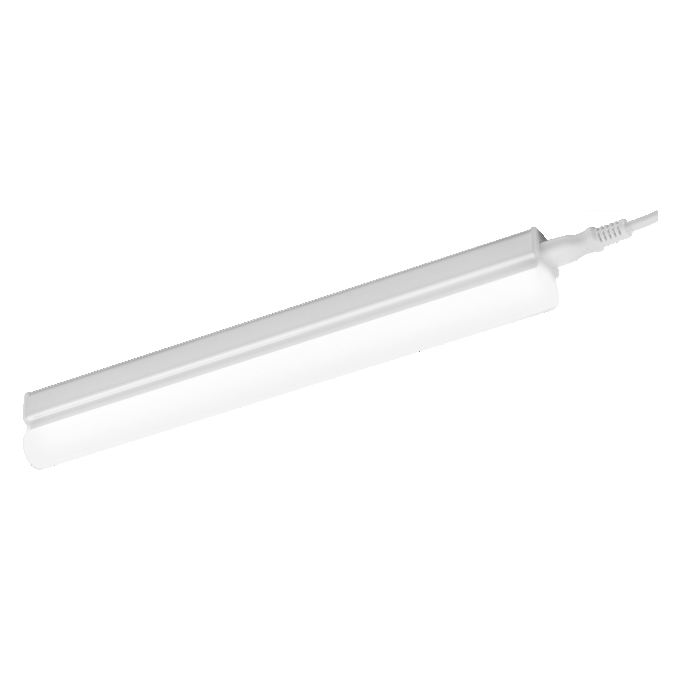

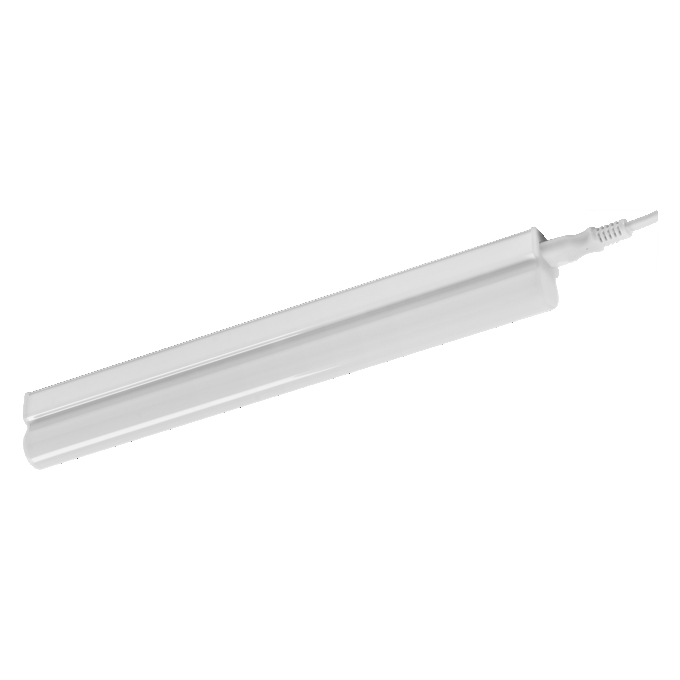

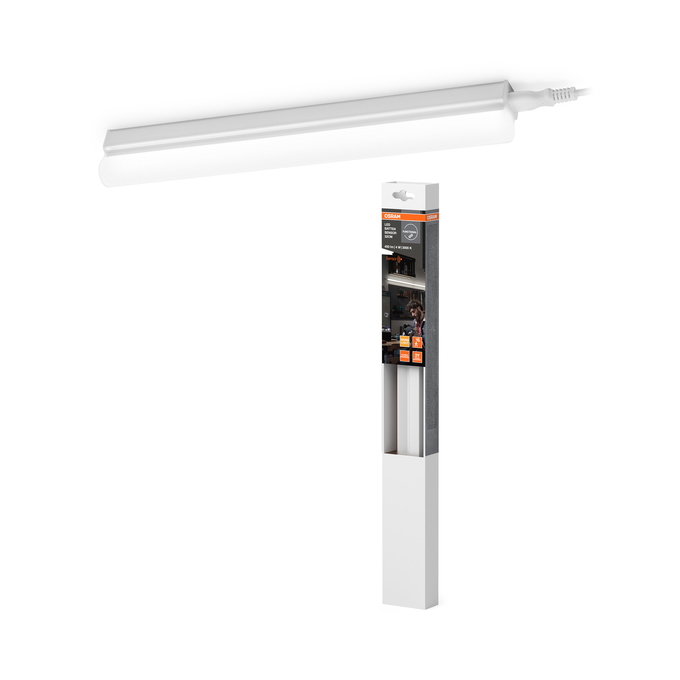

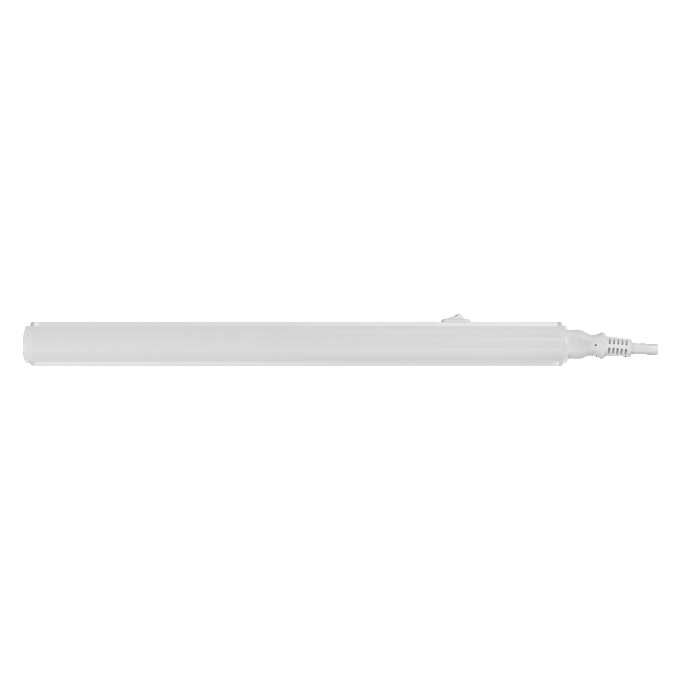

LED Sensor Batten 320mm 4W 3000K
4099854532498
Product benefits
- Attractive and functional design for office applications
- Touchless switching thanks to integrated sensor
Areas of application
- Offices
- Undercabinet lighting
- Kitchens
Product features
- Integrated motion sensor
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
180 °
Body material
Plastic
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854532498
Height
36.00 mm
Housing color
White
Inrush current time Th50
182 µs
Length
313.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
56
Max. number of luminaires per miniature circuit breaker C16
56
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
32.000 mA
Nominal voltage
220…240 V
Nominal wattage
4.00 W
Number of switching cycles
100000
Operating mode
Integrated LED driver
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62471
RG0
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
77.00 g
Protection class
II
Replaceable light source
No
Standard deviation of color matching
< 5 sdcm
Standards
CE
Total harmonic distortion
110 %
Total luminous flux of contained light sources
450 lm
Type of connection
Plug type C (EU)
Type of protection
IP20
Type of sensor
Movement
Width
28.00 mm
With light source
Yes
