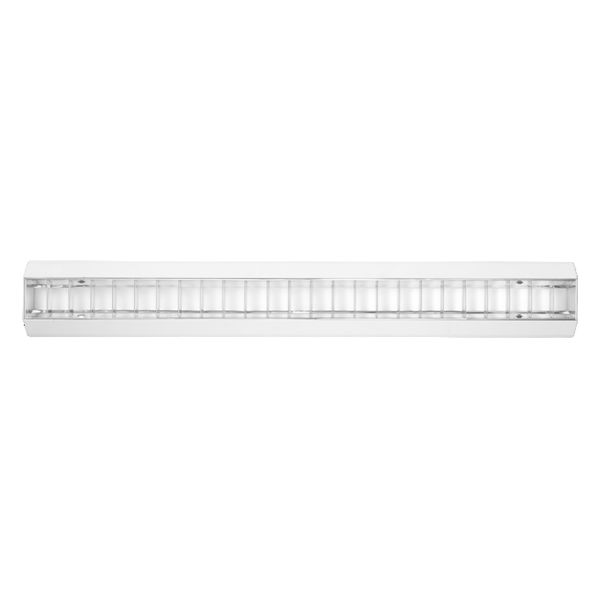

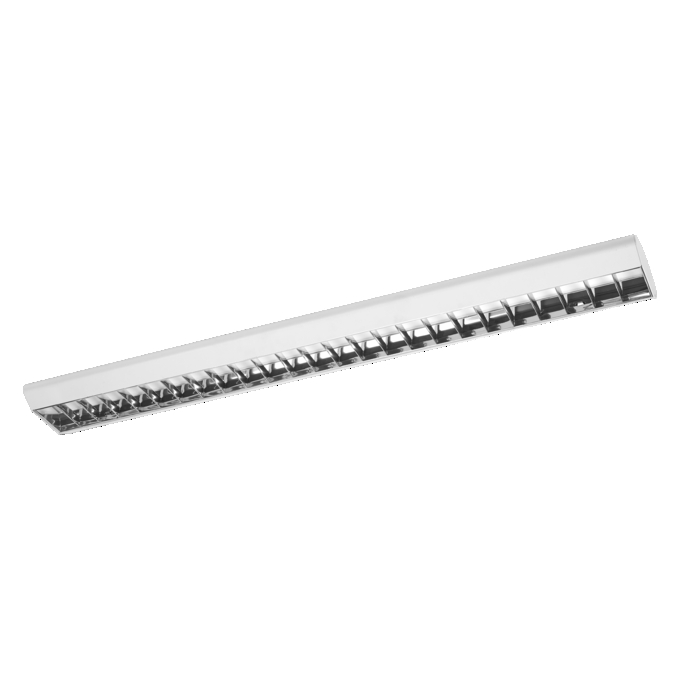

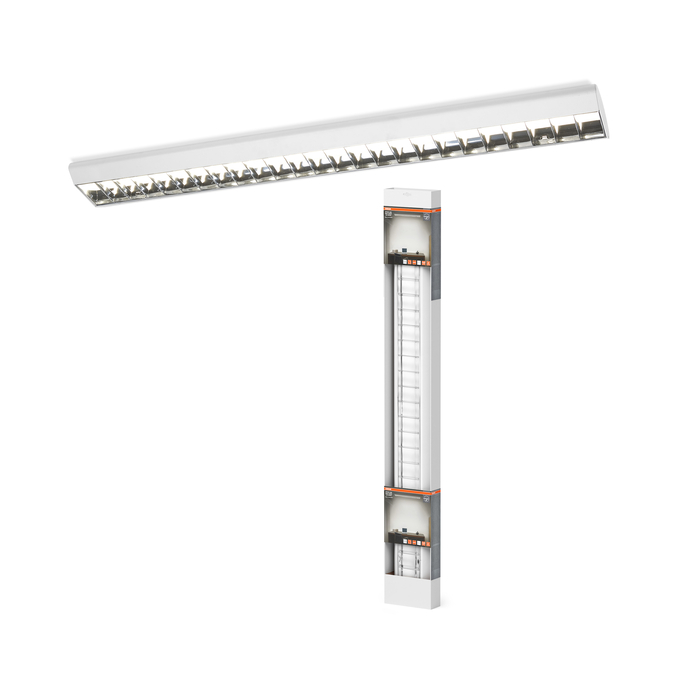

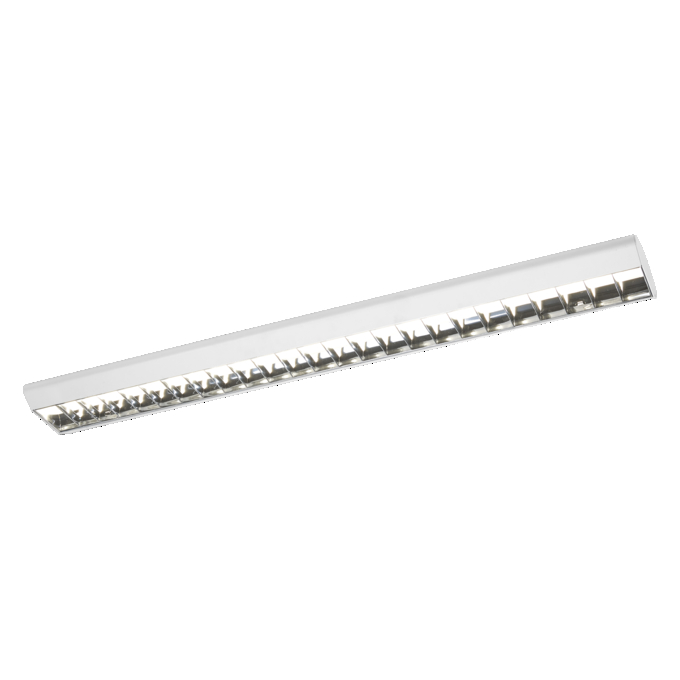

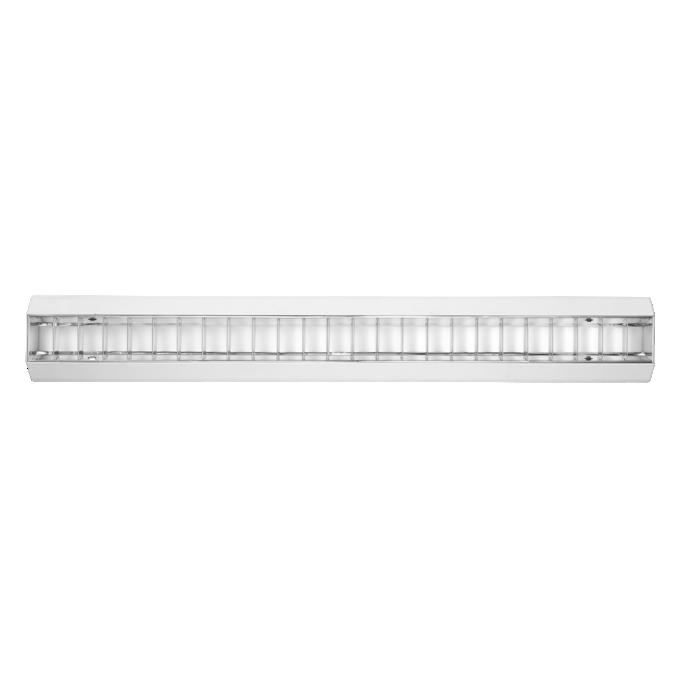

LED Office Line Grid Curve 1.2m DIM 840 White
4099854589706
Product benefits
- Flexible mounting options
- Click-DIM: dimmable in three steps by repeated switching
- With a UGR value of <19, the luminaire meets the requirements for VDU workstations and reduces eye strain
Areas of application
- Office lighting
- Home offices
- Indoor applications
Product features
- Traditional design in a new modern look
- Lifetime up to 50,000 h
- Color temperature: 4,000 K
- Luminaire with included louver grid
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+45 °C
Ball shot safe
No
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Plastic
Dimmable
Yes
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854589706
Height
56.00 mm
Housing color
White
Inrush current
0.174 A
Inrush current time Th50
980 µs
Length
1193.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
4000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
11
Max. number of luminaires per miniature circuit breaker C10
11
Max. number of luminaires per miniature circuit breaker C16
18
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
185.000 mA
Nominal voltage
220…240 V
Nominal wattage
40.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
2370.00 g
Protection class
I
Protection class IK (shock resistance)
IK02
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 15 %
Total luminous flux of contained light sources
6000 lm
Type of connection
Terminal, 3-pole
Type of emergency operation test
None
Type of protection
IP20
UGR
< 19
Width
167.00 mm
With light source
Yes
