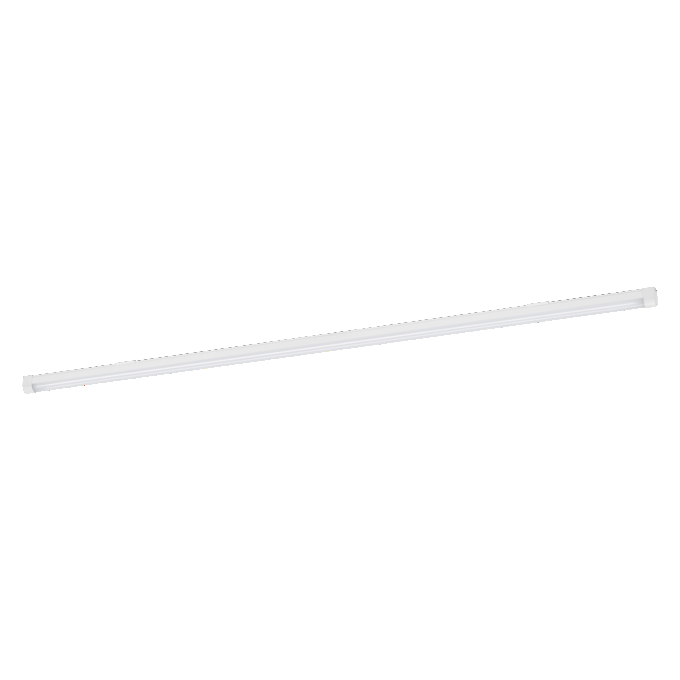

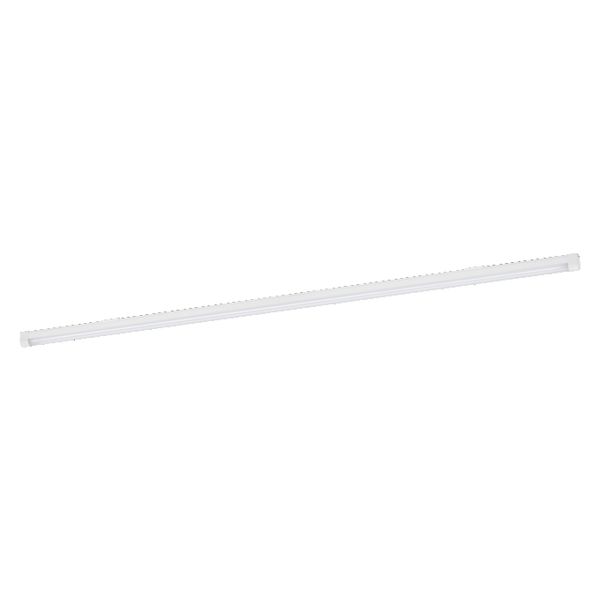

LED Essential Batten 1500 mm 24 W 865
4058075858374
Product benefits
- Excellent price/performance ratio
- High energy savings compared to luminaires that use conventional light sources
- Functional and minimalistic design
- Flexible application due to a wide range of available lengths of 600 to 1500 mm
Areas of application
- Indoor applications
- Ceiling and wall surface mounting
- Corridors, stairwells, basements
Product features
- Replacement for traditional T8 luminaires
- Wall and ceiling batten luminaire
- Lifetime up to 25,000 h
- Color temperature: 6,500 K
- Lengths available: 0.6 m, 0.9 m, 1.2 m, 1.5 m
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
130 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075858374
Height
37.00 mm
Housing color
White
Inrush current
0.14 A
Inrush current time Th50
860 µs
Length
1500.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
2400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
13
Max. number of luminaires per miniature circuit breaker C10
13
Max. number of luminaires per miniature circuit breaker C16
21
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
140.000 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
275.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
Total harmonic distortion
118 %
Total luminous flux of contained light sources
2900 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
Width
30.00 mm
With light source
Yes
