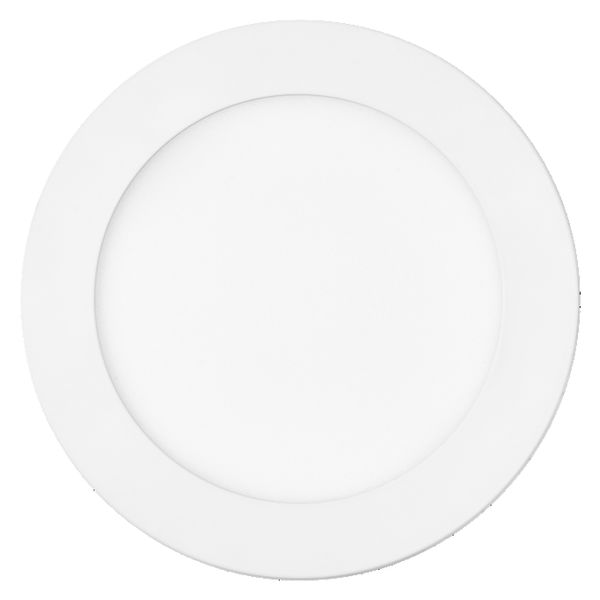

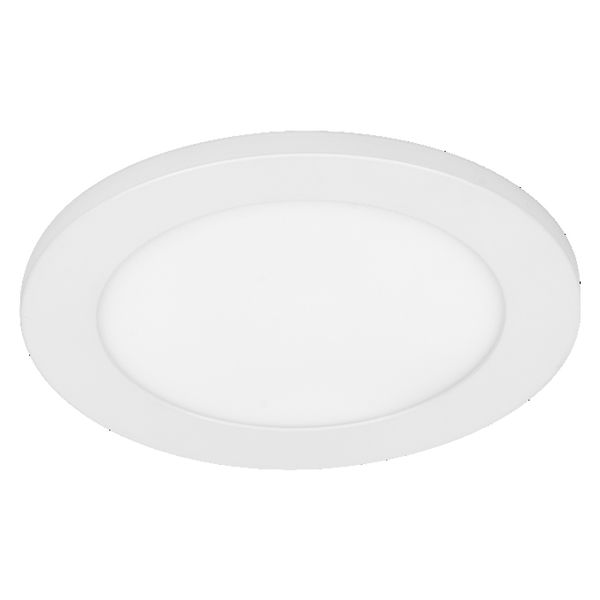

LED Downlight Side-Mainlight 175mm 18W 830 White
4058075853935
Product benefits
- Through-wiring possible with included connector box
- Easy mounting
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Recessed ceiling mounting
- Color temperature: 3,000 K
- Through wiring possible
- Type of protection: IP20
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Beam angle
120 °
Body material
Aluminum
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polystyrene (PS)
Diameter
175.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075853935
Height
30.00 mm
Housing color
White
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
77 lm/W
Luminous flux
1400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
23
Max. number of luminaires per miniature circuit breaker C16
23
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting depth
30,0 mm
Mounting diameter
85…145 mm
Mounting location
Ceiling
Mounting type
Recessed
Nominal current
450.000 mA
Nominal voltage
220…240 V
Nominal wattage
18.00 W
Number of switching cycles
50000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
350.00 g
Protection class
II
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
< 6 sdcm
Standards
CE
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+70 °C
Total luminous flux of contained light sources
1400 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
