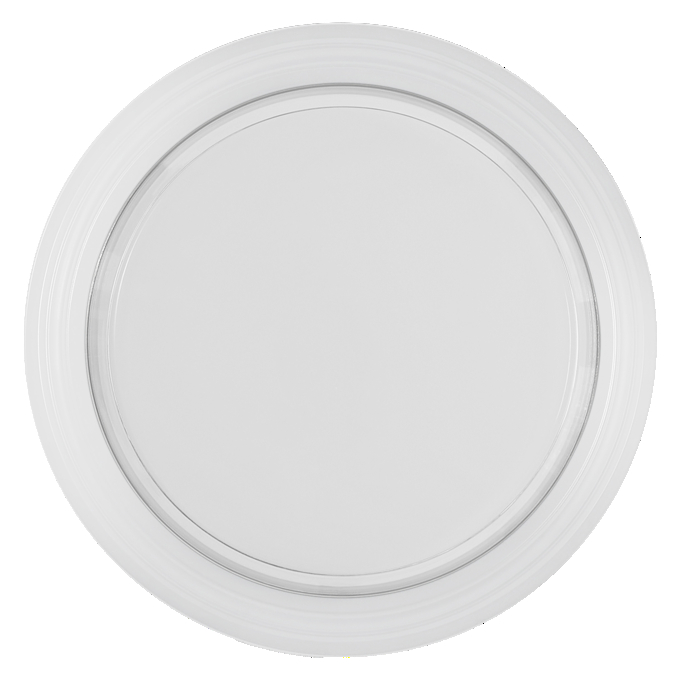

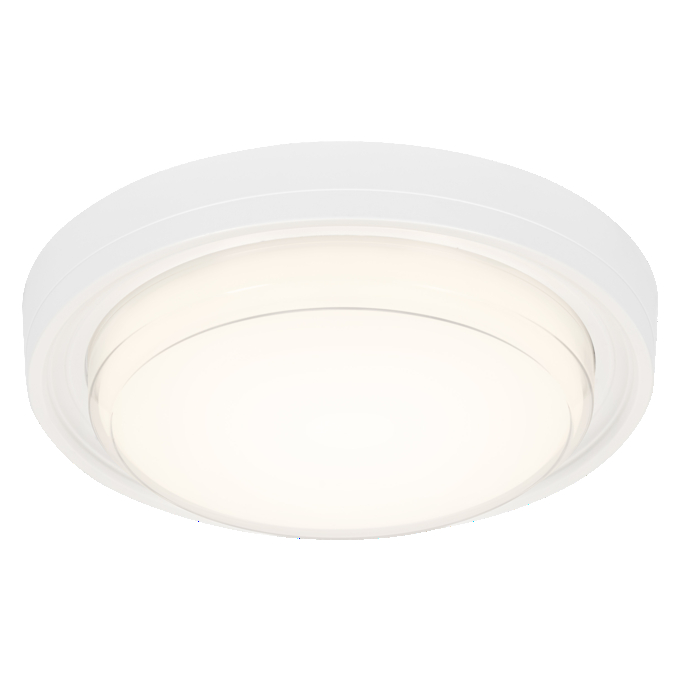

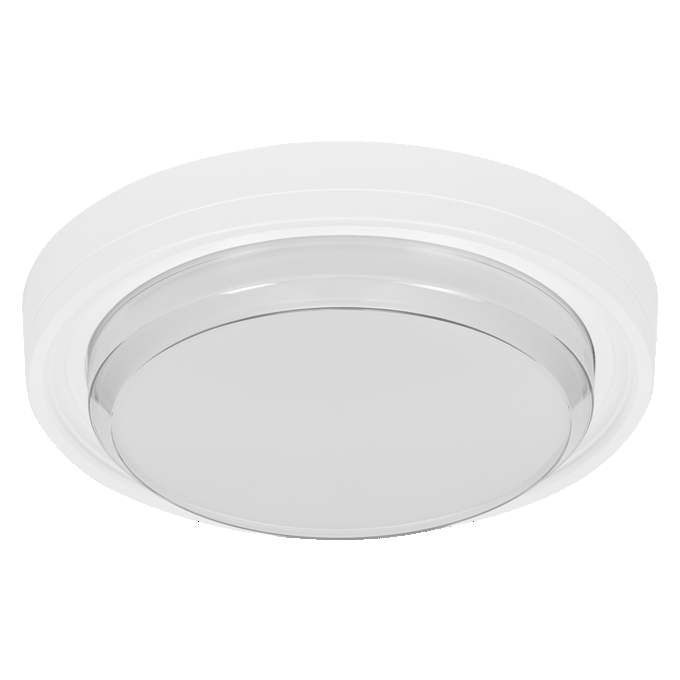

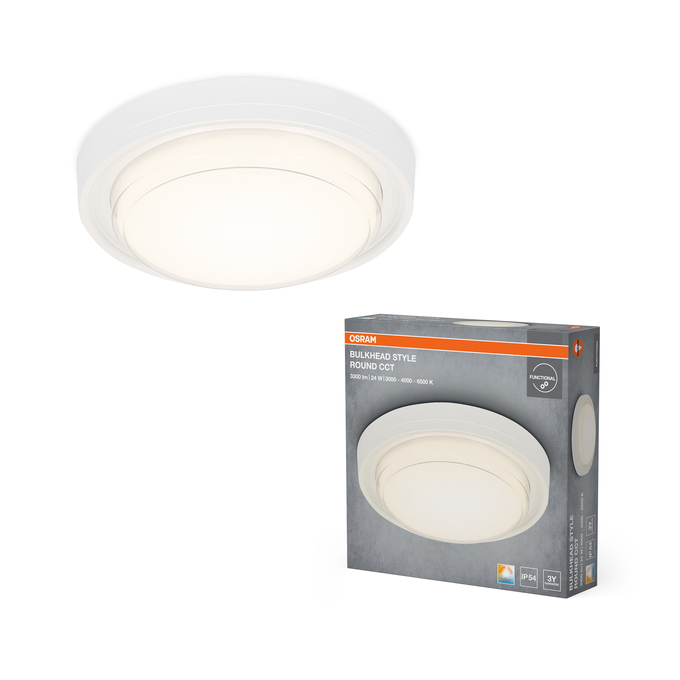

LED Bulkhead Style Round 24W CCT White
4099854689949
Product benefits
- Energy-efficient thanks to LED technology
- Thanks to protection class IP54, the luminaire is splash-proof and protected against dust
- PIR motion sensor with a detection range of up to 7 m
- Easy and quick installation
Areas of application
- Basements, garages, warehouses
- Entrance areas
- Outdoor
Product features
- LED integrated indoor and outdoor luminaire in decorative design
- Color temperature switch (CCT): 3000 K, 4000 K, 6500 K
- Type of protection: IP54
- Impact resistance: IK06
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Body material
Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
3000 K / 4000 K / 6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
220.00 mm
Dimmable
No
Flickering metric (Pst LM)
≤1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854689949
Height
48.00 mm
Housing color
White
Inrush current
11.5 A
Inrush current time Th50
3.5 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
85 lm/W
Luminous flux
2100 lm
Luminous intensity
800
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
65
Max. number of luminaires per miniature circuit breaker C10
45
Max. number of luminaires per miniature circuit breaker C16
73
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
174 mA
Nominal voltage
220…240 V
Nominal wattage
24.00 W
Number of illuminants
1
Number of switching cycles
20000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
340.00 g
Protection class
II
Protection class IK (shock resistance)
IK06
Reference control setting of contained light source (Kelvin)
6500 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
≤6 sdcm
Stroboscope effect metric (SVM)
≤0.4
Temperature range at storage
-40…+80 °C
Total luminous flux of contained light sources
3300 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP54
With light source
Yes
