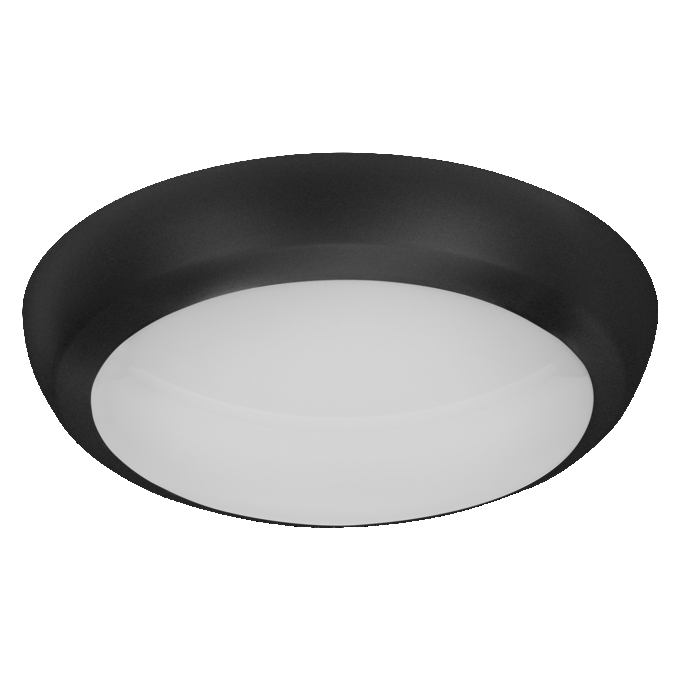

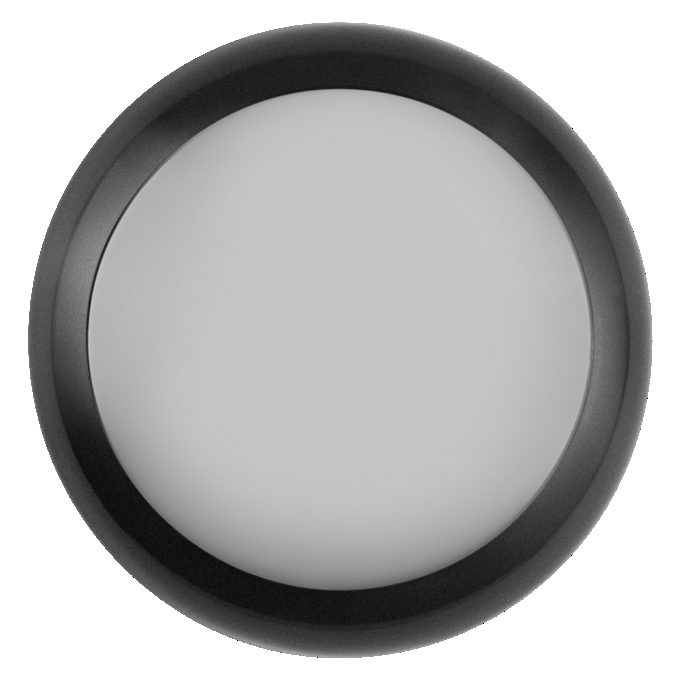

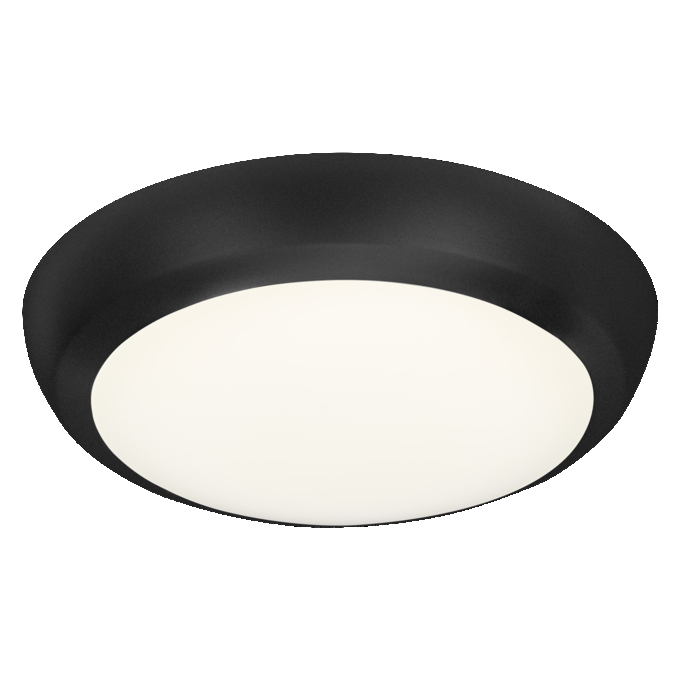

LED Bulkhead Core 16W 840 Black
4099854690303
Product benefits
- Energy-efficient thanks to LED technology
- Thanks to protection class IP54, the luminaire is splash-proof and protected against dust
- Suitable for use in dusty and damp locations thanks to high IP rating
- Easy and quick installation
Areas of application
- Basements, garages, warehouses
- Entrance areas
- Outdoor
Product features
- Bright and functional indoor and outdoor LED luminaire
- Type of protection: IP65
- Impact resistance: IK10
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Application environment
Indoor
Ball shot safe
No
Beam angle
120 °
Body material
Polycarbonate (PC)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Diameter
325.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854690303
Height
90.00 mm
Housing color
Black
Inrush current
20 A
Inrush current time Th50
150 µs
Lifespan L70/B50 at 25 °C
54000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
100 lm/W
Luminous flux
1400 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
30
Max. number of luminaires per miniature circuit breaker C10
24
Max. number of luminaires per miniature circuit breaker C16
38
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
90.000 mA
Nominal voltage
220…240 V
Nominal wattage
16.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.70
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
690.00 g
Protection class
II
Protection class IK (shock resistance)
IK10
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+80 °C
Total luminous flux of contained light sources
2350 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
