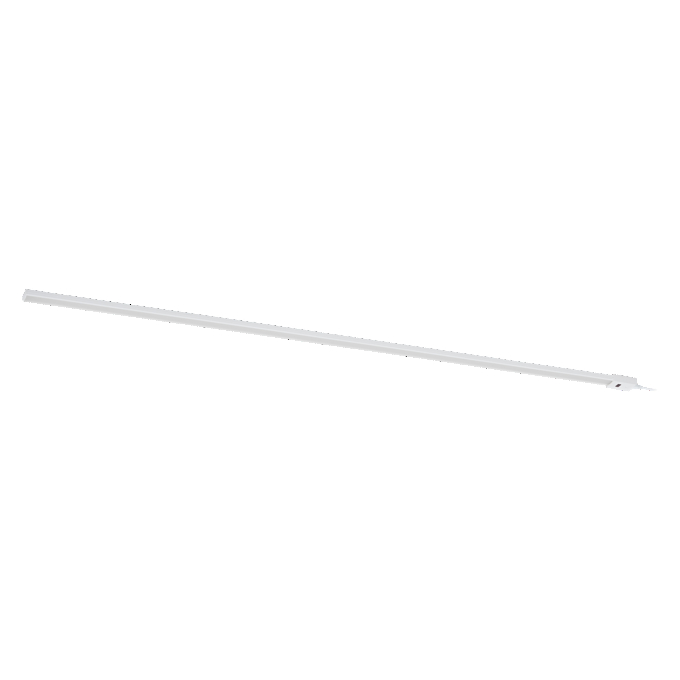

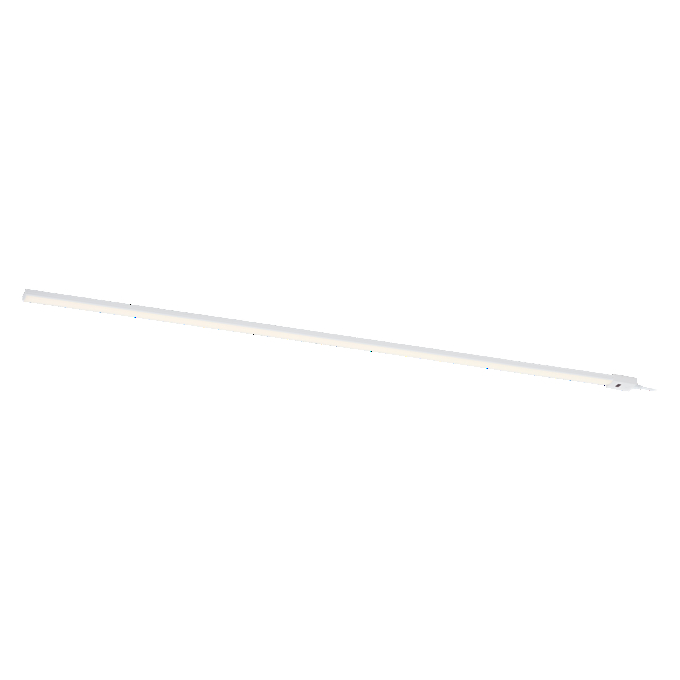

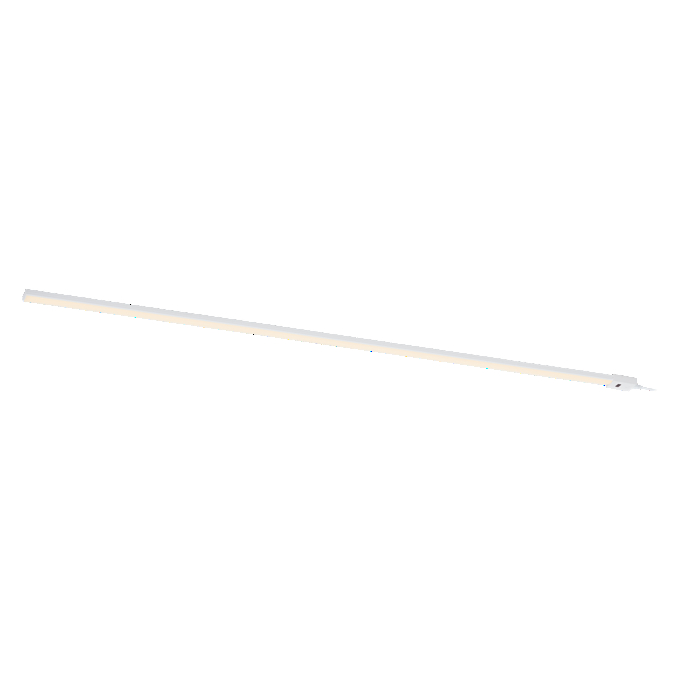

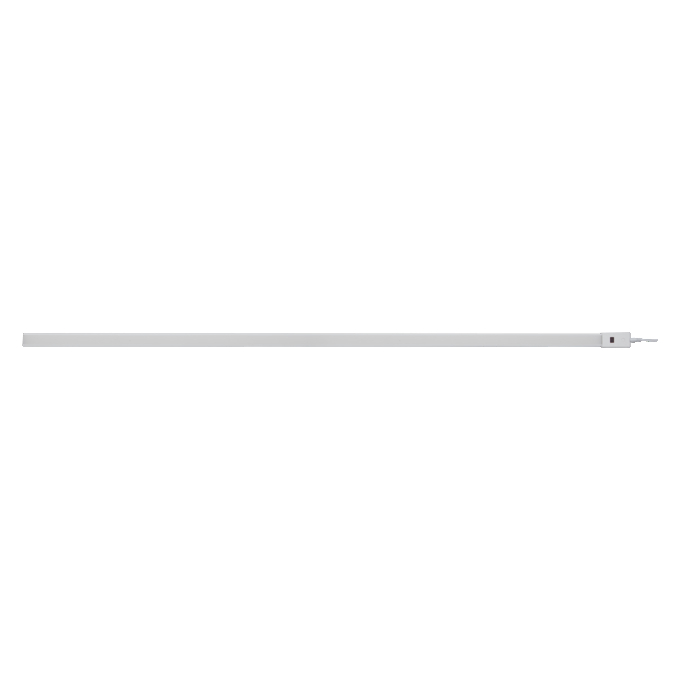

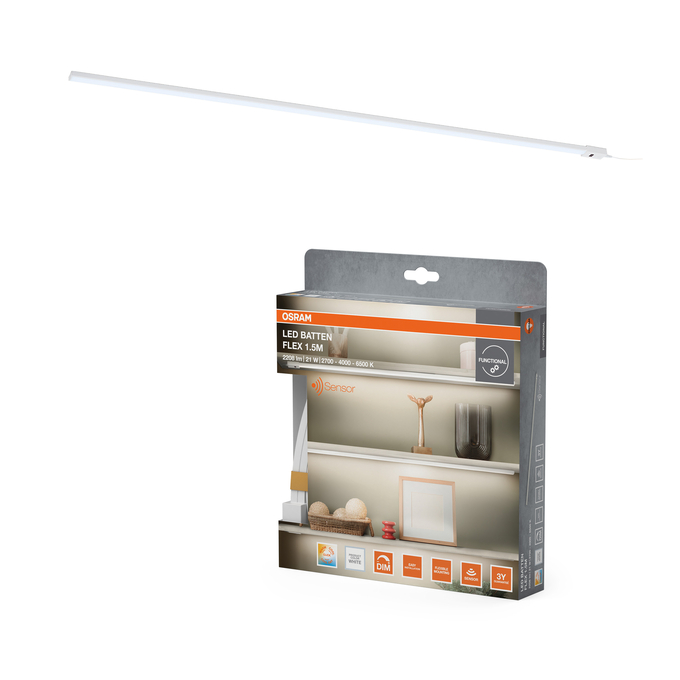

LED Batten Flex 1500 mm 21 W CCT DIM
4099854856259
Product benefits
- Light strip can be shortened to suit individual needs
- Highly versatile due to selectable light color and brightness
- Easy and fast mounting on nearly every surface via adhesive tape or enclosed mounting clips
- Flexible application due to a wide range of available lengths of 800 to 1500 mm
Areas of application
- Indoor applications
- Kitchens, Living areas, Shelf and undercabinet lighting
Product features
- Flexible and bendable LED strip
- LED stripe cuttable every 6 cm
- Color temperature adjustable in three steps
- Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
- Dimming by covering the infrared motion sensor for at least one second
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Beam angle
120 °
Body material
Acrylonitrile butadiene styrene (ABS)
Color rendering index Ra
> 80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Silicone
Detection range of motion sensor
0.05 m
Dimmable
Yes
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854856259
Height
20.00 mm
Housing color
White
Inrush current
6.25 A
Inrush current time Th50
200 µs
Length
1504.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Warm Whi
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
78 lm/W
Luminous flux
1650 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
61
Max. number of luminaires per miniature circuit breaker C10
51
Max. number of luminaires per miniature circuit breaker C16
61
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Surface
Nominal current
170 mA
Nominal voltage
220…240 V
Nominal wattage
21.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
573.00 g
Protection class
II
Reference control setting of contained light source (Kelvin)
4000 K
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Sensor detection angle
90 °
Sensor technology
Infrared/Photocell
Standard deviation of color matching
< 6 sdcm
Total harmonic distortion
150 %
Total luminous flux of contained light sources
2208 lm
Type of connection
Plug type C (EU)
Type of dimming
PWM
Type of protection
IP20
Type of sensor
Motion
Width
35.00 mm
With light source
Yes
