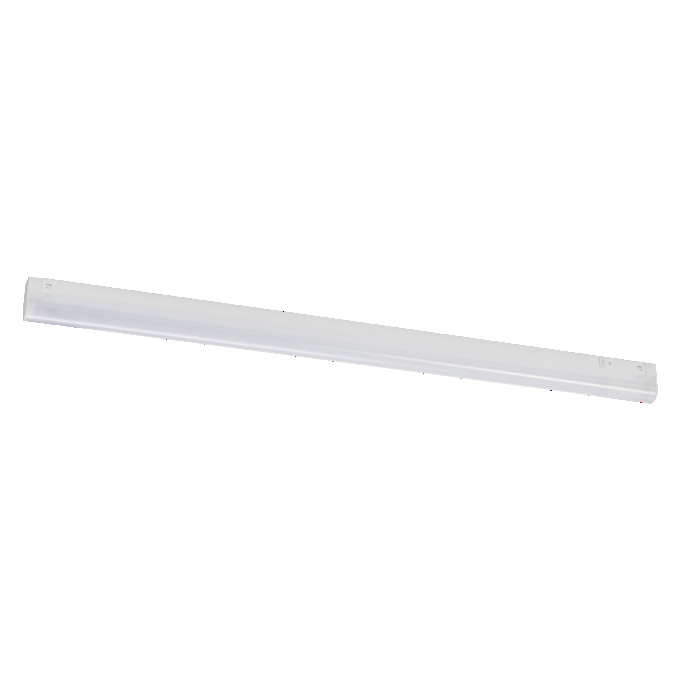

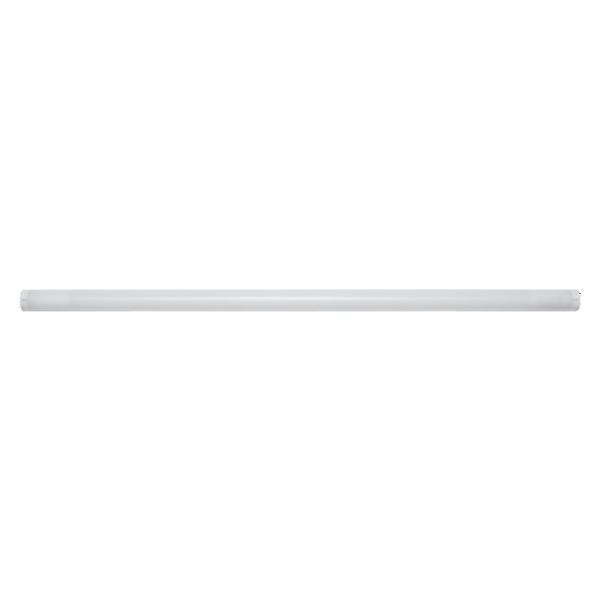

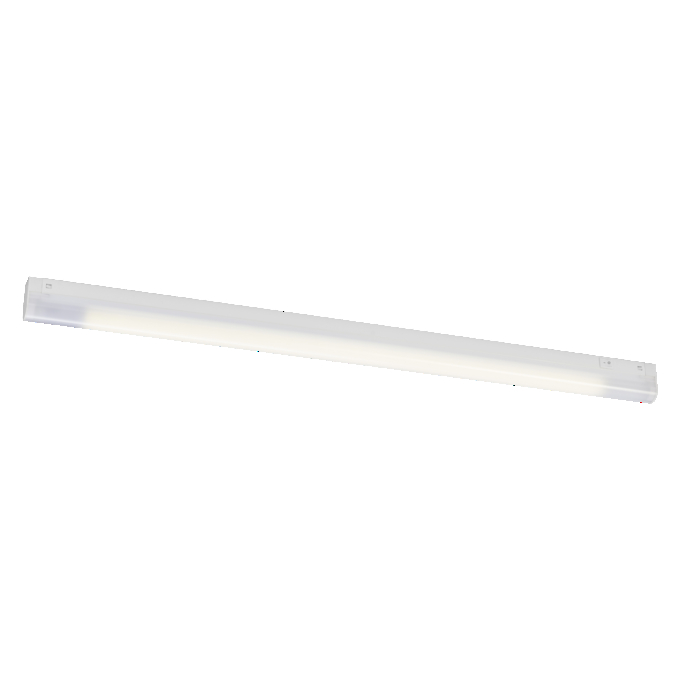

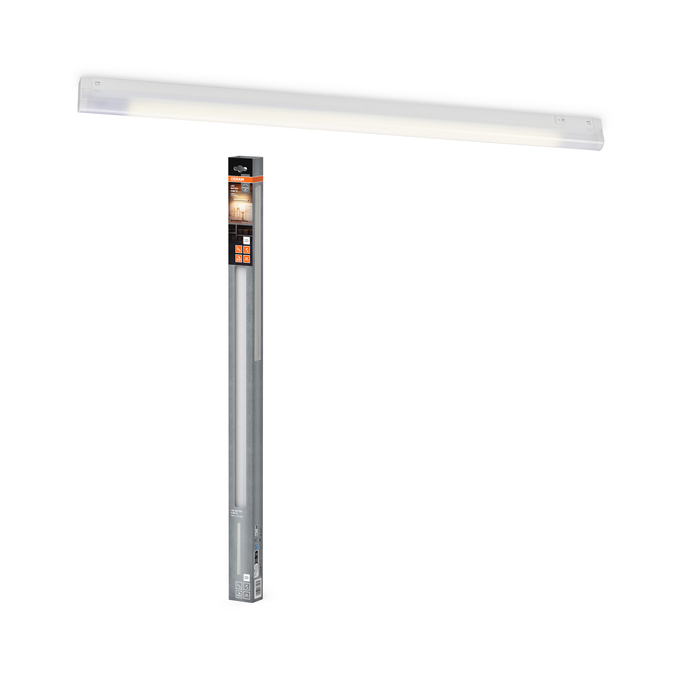

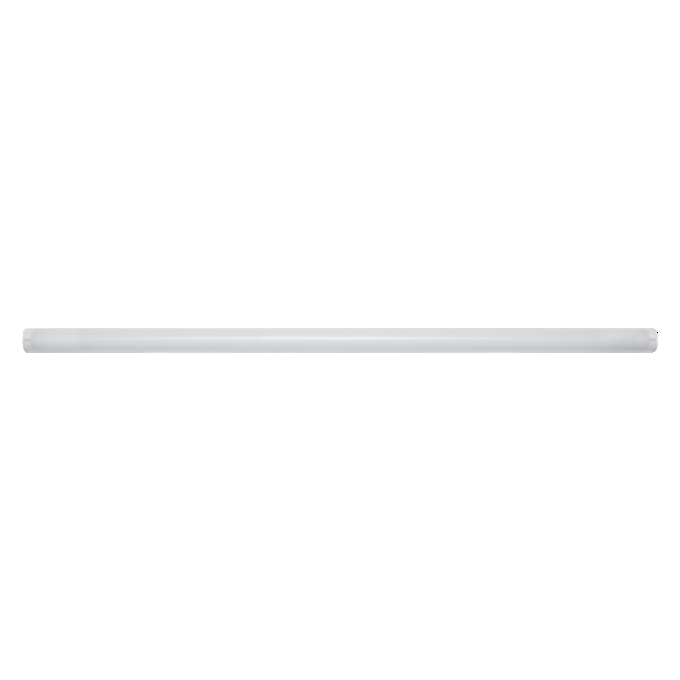

LED Batten 900 mm 13 W G5 T5
4099854880070
Product benefits
- Very sustainable thanks to replaceable LED tube
- Cover ensures uniform light distribution
- Handy switch directly installed on the luminaire
- Flexible application due to a wide range of available lengths of 600 to 1200 mm
Areas of application
- Indoor applications
- Wall and ceiling surface mounting
- Kitchens, workspaces
- Corridors, stairwells, basements
- Workshops
Product features
- Replacement for traditional T5 luminaires
- Wall and ceiling batten luminaire
- Lengths available: 0.6 m, 0.9 m, 1.2 m
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+45 °C
Ball shot safe
No
Body material
Metal
Color rendering index Ra
80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
< 1
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854880070
Height
53.00 mm
Holder designation
G5
Housing color
White
Inrush current
6.48 A
Inrush current time Th50
280 µs
Length
900.00 mm
Lifespan L70/B50 at 25 °C
50000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
115 lm/W
Luminous flux
1495 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
35
Max. number of luminaires per miniature circuit breaker C10
34
Max. number of luminaires per miniature circuit breaker C16
55
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
59 mA
Nominal voltage
220…240 V
Nominal wattage
13.00 W
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
480.00 g
Protection class
I
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
< 0.4
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
1690 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP20
Width
33.00 mm
With light source
Yes
