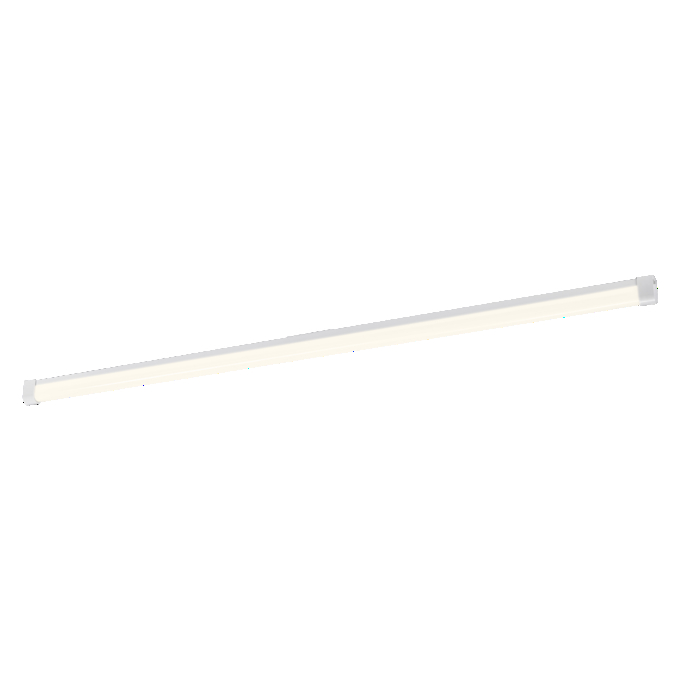

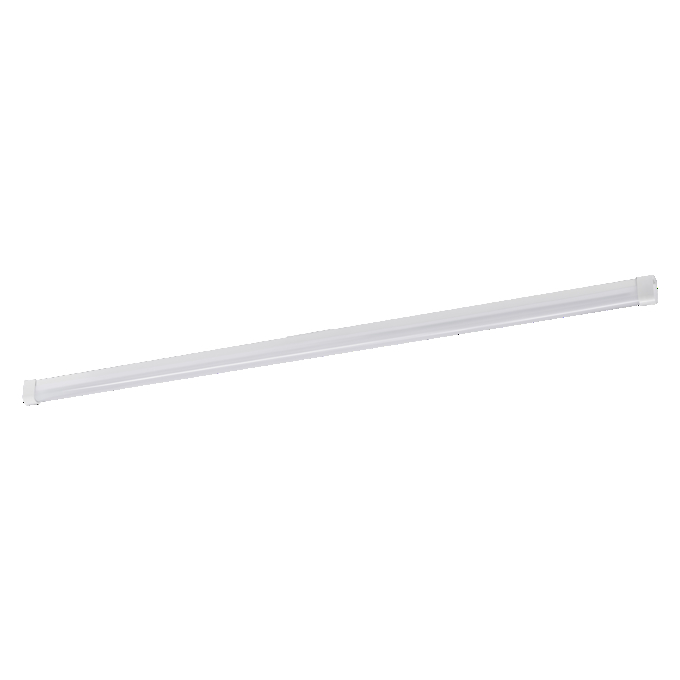

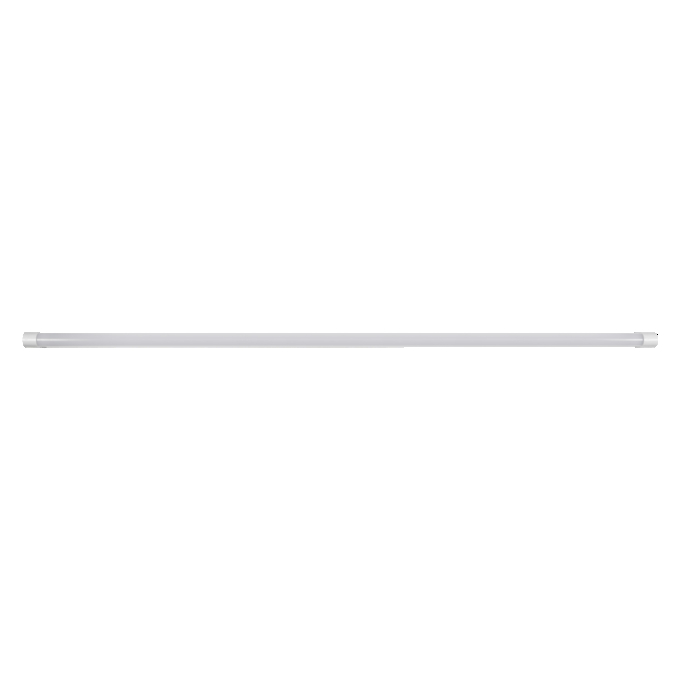

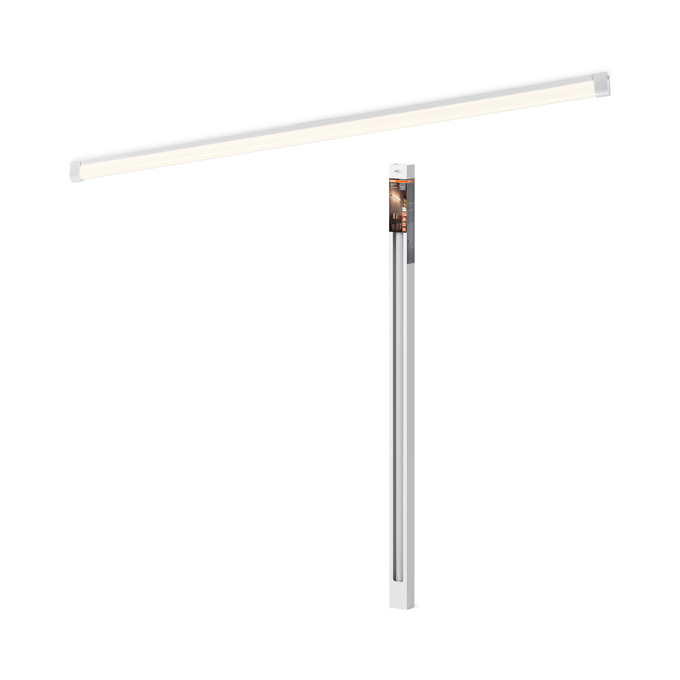

LED Batten 150cm 20W 840 G13 T8
4099854609121
Product benefits
- Very sustainable thanks to replaceable LED tube
- Cover ensures uniform light distribution
- Handy switch directly installed on the luminaire
- Flexible application due to a wide range of available lengths of 600 mm to 1500 mm
Areas of application
- Indoor applications
- Ceiling and wall surface mounting
- Kitchens, workspaces
- Corridors, stairwells, basements
- General indoor illumination
- Workshops
Product features
- Replacement for traditional T8 luminaires
- Wall and ceiling batten luminaire
- Lengths available: 0.6 m, 1.2 m, 1.5 m
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Body material
Metal
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Polycarbonate (PC)
Dimmable
No
Flickering metric (Pst LM)
< 5 %
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854609121
Height
55.00 mm
Holder designation
G13
Housing color
White
Inrush current
0.065 A
Inrush current time Th50
1.52 µs
Length
1530.00 mm
Lifespan L70/B50 at 25 °C
30000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
95 lm/W
Luminous flux
1900 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
51
Max. number of luminaires per miniature circuit breaker C10
41
Max. number of luminaires per miniature circuit breaker C16
65
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Ceiling
Mounting type
Surface
Nominal current
150.000 mA
Nominal voltage
220…240 V
Nominal wattage
20.00 W
Number of switching cycles
50000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.5
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
728.00 g
Protection class
II
Replaceable light source
No
Standard deviation of color matching
< 6 sdcm
Stroboscope effect metric (SVM)
0,4
Total harmonic distortion
150 %
Total luminous flux of contained light sources
2300 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
Width
34.00 mm
With light source
Yes
