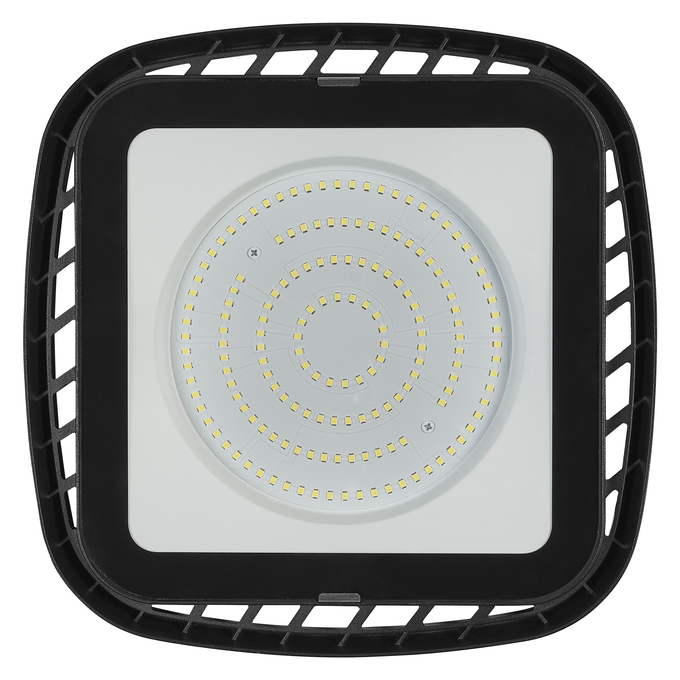

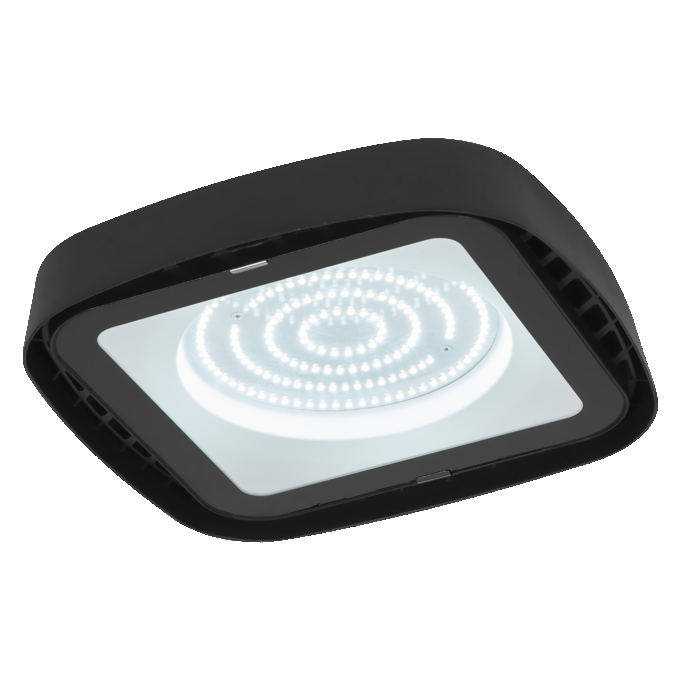

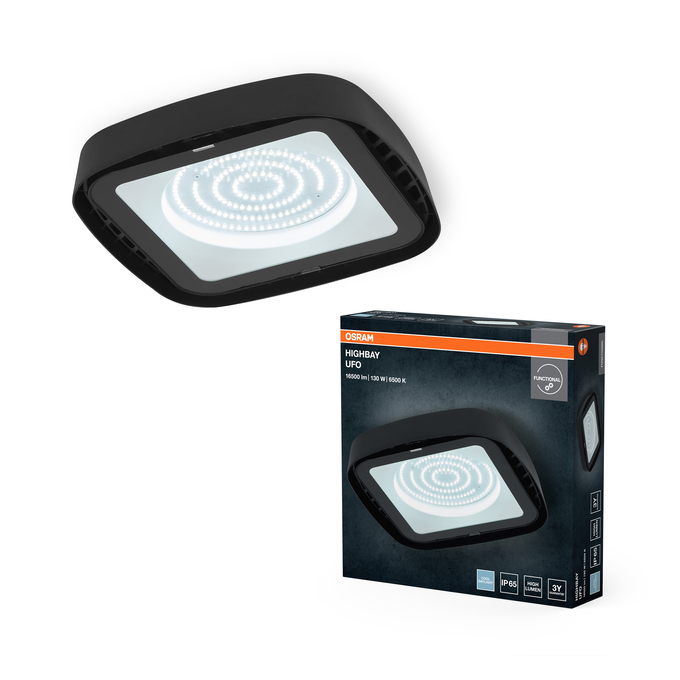

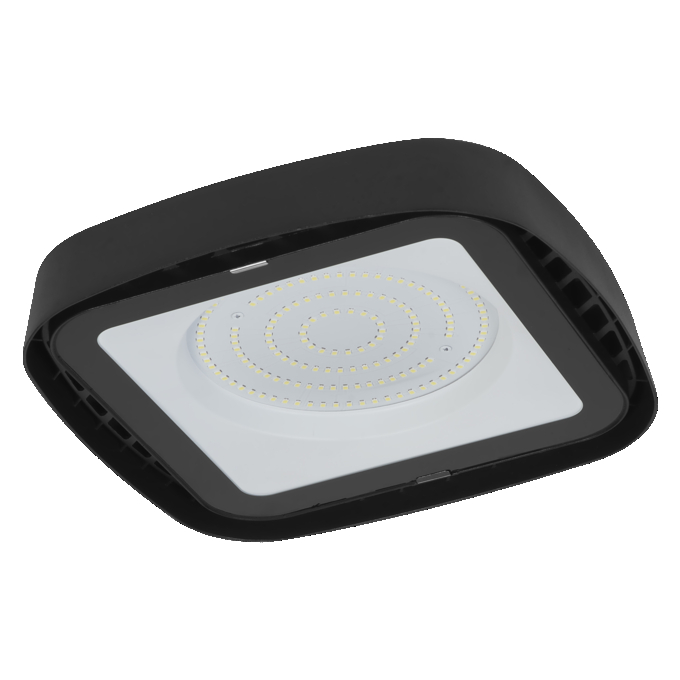

Highbay Ufo 130W 865 IP65 Black
4099854429330
Product benefits
- High light output thanks to high-power LED
- Robust and long-lasting design
- Suitable for high ceiling installations
Areas of application
- Garages
- Areas with high ceilings
Product features
- Type of protection: IP65
- Luminous flux up to 15000 lm
Equipment / Accessories
- Mounting hook included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Ambient temperature range
-20…+40 °C
Application environment
Outdoor
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum
Color rendering index Ra
> 70
Color temperature
6500 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
Cover material
Glass
Dimmable
No
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4099854429330
Height
83.00 mm
Housing color
Black
Inrush current time Th50
1760 µs
Length
273.00 mm
Lifespan L70/B50 at 25 °C
20000 h 1)
Light color (designation)
Cool Daylight
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Lead (7439-92-1)
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
115 lm/W
Luminous flux
15000 lm
Mains frequency
50…60 Hz
Max. number of luminaires per miniature circuit breaker B16
14
Max. number of luminaires per miniature circuit breaker C10
14
Max. number of luminaires per miniature circuit breaker C16
22
Mercury content
0.0 mg
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting type
Suspended
Nominal current
558.000 mA
Nominal voltage
220…240 V
Nominal wattage
130.00 W
Number of switching cycles
25000
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG1
Power factor λ
> 0.90
Product color
Black
Product recyclability
Mostly recyclable product 1)
Product weight
1400.00 g
Protection class
I
Protection class IK (shock resistance)
IK05
Replaceable light source
No
Standard deviation of color matching
6 sdcm
Temperature range at storage
-20…+80 °C
Total harmonic distortion
< 20 %
Total luminous flux of contained light sources
16500 lm
Type of connection
Cable, 3-pole
Type of protection
IP65
Width
273.00 mm
With light source
Yes
