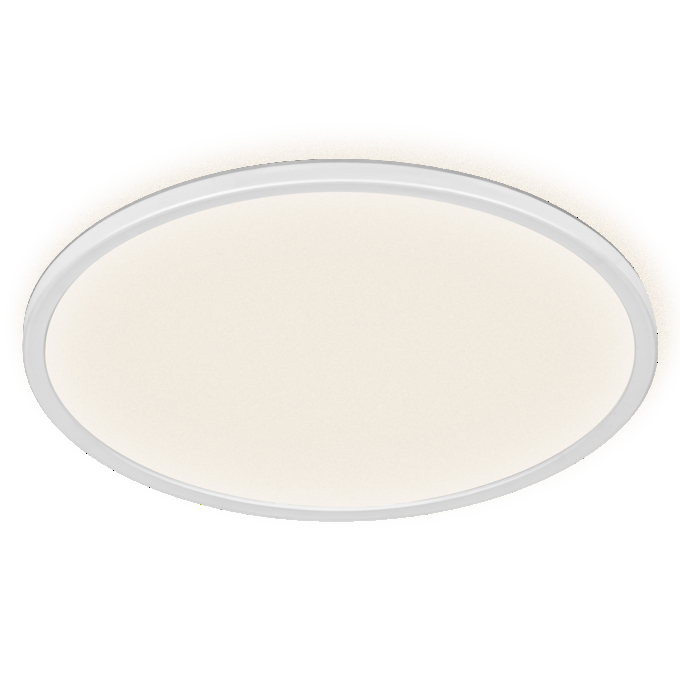

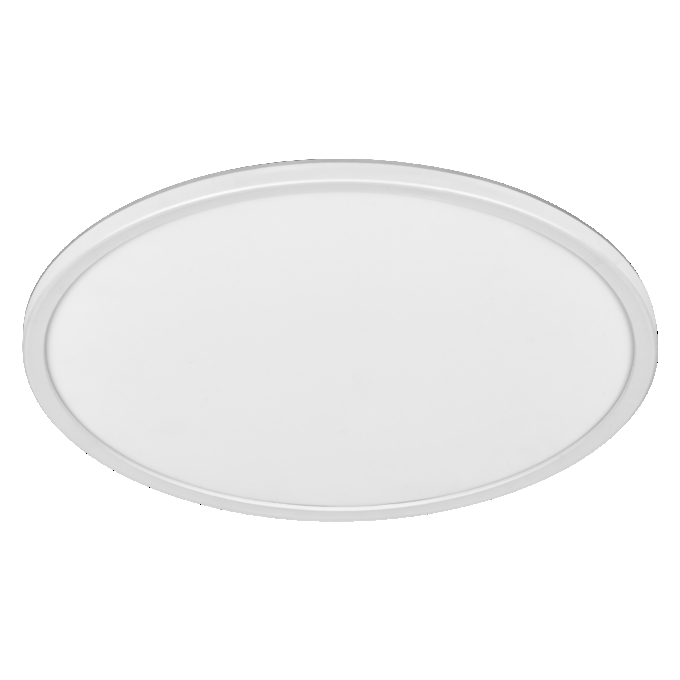

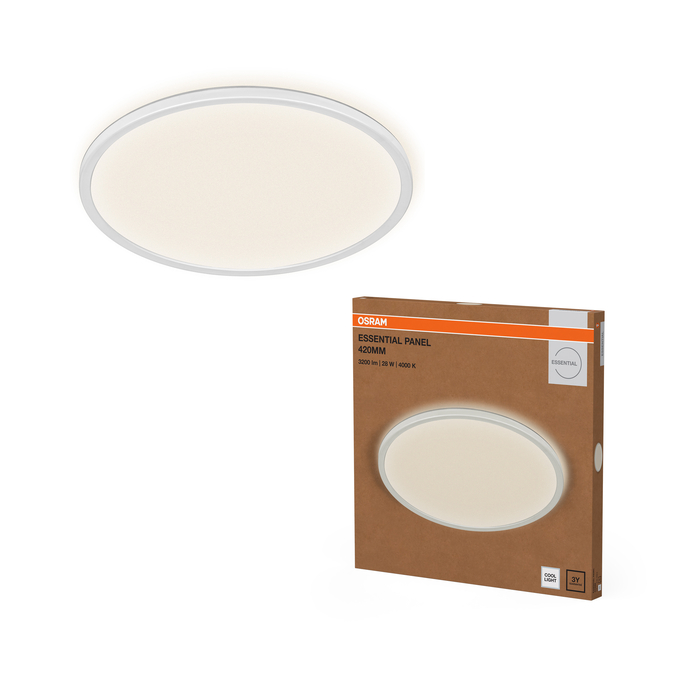

Essential Panel Round 420mm 28W 840 White
4058075854536
Product benefits
- Long lifetime thanks to LED technology
- Excellent price/performance ratio
- Easy mounting thanks to included steel hooks on the back
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- Durable housing material
- Color temperature: 3,000 K
- Lifetime up to 25,000 h
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
110 °
Body material
Polyprophylene (PP)
Color rendering index Ra
≥80
Color temperature
4000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polypropylene (PP)
Diameter
420.00 mm
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075854536
Height
29.00 mm
Housing color
White
Inrush current
0.125 A
Inrush current time Th50
184 µs
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Cool White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
96 lm/W
Luminous flux
2700 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
51
Max. number of luminaires per miniature circuit breaker C10
47
Max. number of luminaires per miniature circuit breaker C16
75
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
125 mA
Nominal voltage
220…240 V
Nominal wattage
28.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.9
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1050.00 g
Protection class
II
Protection class IK (shock resistance)
IK03
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+70 °C
Total harmonic distortion
10.54 %
Total luminous flux of contained light sources
3200 lm
Type of connection
Terminal, 2-Pole (L, N)
Type of emergency operation test
None
Type of protection
IP20
With light source
Yes
