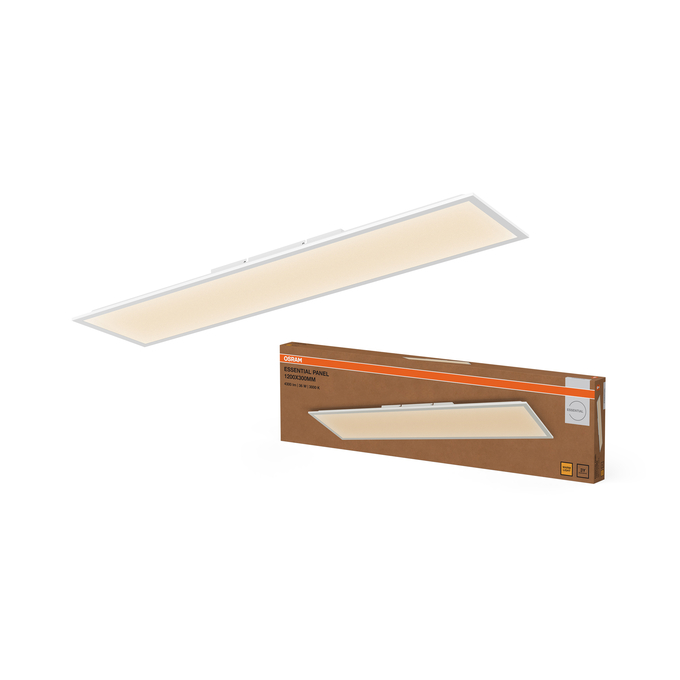

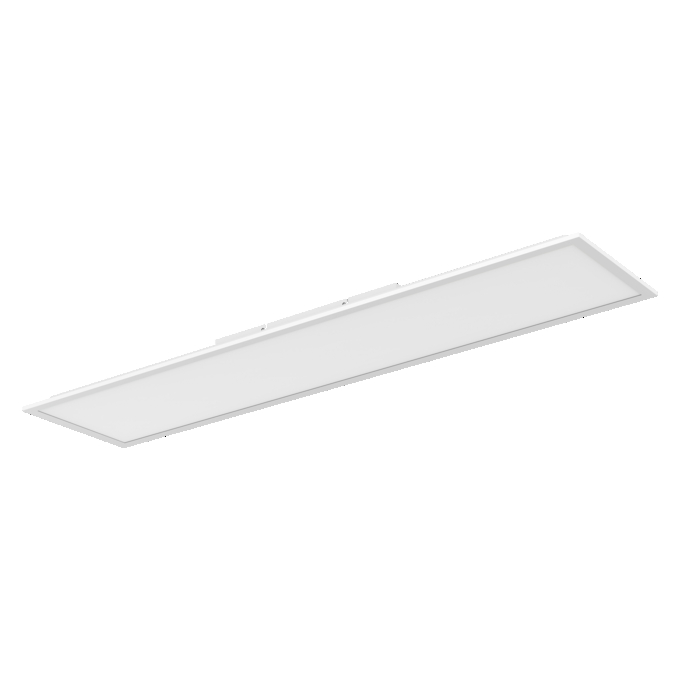

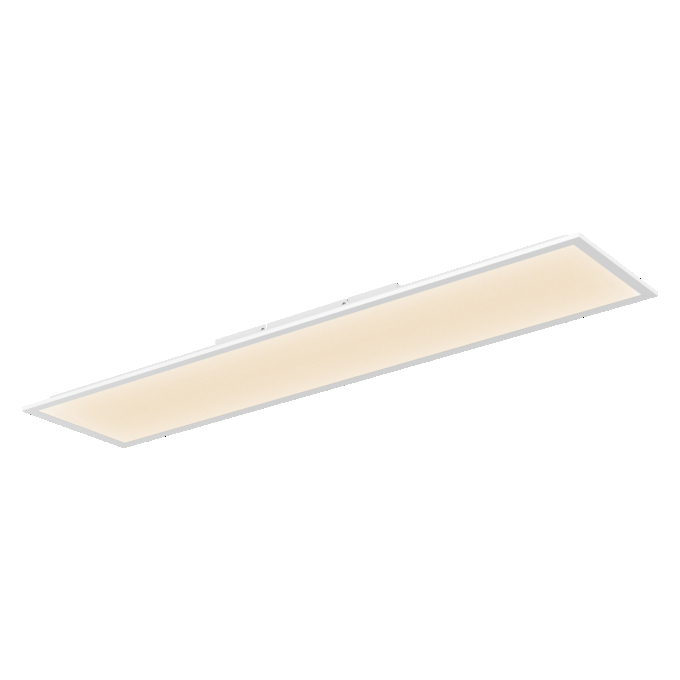

Essential Panel Rectangular 1200x300mm 36W 830 White
4058075854758
Product benefits
- Long lifetime thanks to LED technology
- Excellent price/performance ratio
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
Product features
- LED ceiling luminaires with aluminum frame
- Lifetime up to 25,000 h
- Type of protection: IP20
Equipment / Accessories
- Mounting screws and dowels included
Safety advice
- Luminaire must be disconnected from mains during installation, maintenance and cover removal
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Ambient temperature range
-20…+40 °C
Ball shot safe
No
Beam angle
110 °
Body material
Aluminum|Steel
Color rendering index Ra
> 80
Color temperature
3000 K
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
No
Cover material
Polystyrene (PS)
Dimmable
No
Flickering metric (Pst LM)
Glow Wire Test according to IEC 60695-2-12
650 °C
GTIN
4058075854758
Height
295.00 mm
Housing color
White
Inrush current
0.175 A
Inrush current time Th50
860 µs
Length
1195.00 mm
Lifespan L70/B50 at 25 °C
25000 h 1)
Light color (designation)
Warm White
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Luminaire with limited surface temperature, "D sign"
No
Luminous efficacy
89 lm/W
Luminous flux
3200 lm
Mains frequency
50/60 Hz
Max. number of luminaires per miniature circuit breaker B16
13
Max. number of luminaires per miniature circuit breaker C10
13
Max. number of luminaires per miniature circuit breaker C16
21
Minimum percentage of recycled content in the product
0 % 1)
Minimum rate of recycled material in packaging
80 % 1)
Mounting location
Wa
Mounting type
Surface
Nominal current
175 mA
Nominal voltage
220…240 V
Nominal wattage
36.00 W
Number of switching cycles
12500
Operating mode
Mains voltage
Packaging recyclability
Mostly recyclable packaging 1)
Photobiological safety group acc. to EN62778
RG0
Power factor λ
> 0.9
Product color
White
Product recyclability
Mostly recyclable product 1)
Product weight
1700.00 g
Protection class
I
Protection class IK (shock resistance)
IK02
Replaceable light source
No
Replaceable light source (EPREL)
Not replaceable
Standard deviation of color matching
6 sdcm
Stroboscope effect metric (SVM)
Temperature range at storage
-20…+70 °C
Total harmonic distortion
20 %
Total luminous flux of contained light sources
4300 lm
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of emergency operation test
None
Type of protection
IP20
Width
60.00 mm
With light source
Yes
